MTC-series Mould Temperature Controller
Features:
1. All-digital P.I.D. sectional from temperature system control, temperature error within ±1°C.
2. Multiple safety device, automatically detect the abnormality when accident occurs, indicator
light display abnormality state.
3. Safety main power switches cut-off the power when any emergency comes out.
4. Use AOTE pump, large pressure, high stability.
5.Direct cooling to better colling effect;automatically water makeup device,quick cooling to setting
temperature,applicable to low temperature control.
6. Stainless inside, high pressure, exposion proof.
7.Elegant design,easy disassembly and mantain.
8.350°C oil temperature control is important for the Bottle Blowing,Delta Metal Die Casting industry
in particular.
Specification of MTC Series:
------------------------------------------------------------------------------------------------------------------------------

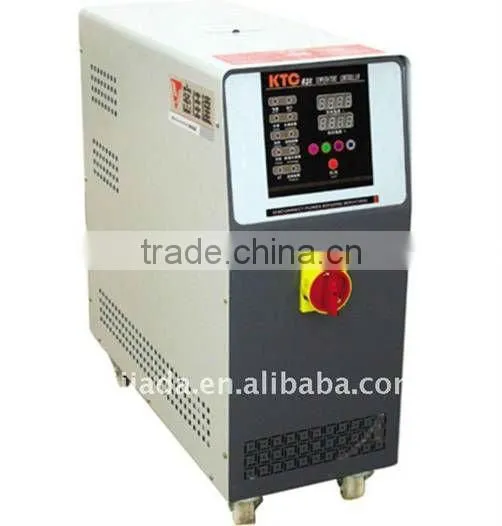

KTC-series Mould Temperature Controller
Features:
1. Microcomputer touch-type control, easy to operate.
2. PID controlled touch-type memory for automatic computation ,with temperature control
at ±1°Cand 35% energy saved.
3. Imported pump with large pressure and flow rate ensures uniform temperature on mould.
4.Brand-new design ,elegant outlook, compact size and convenient maintenance.
5. Completely stainless steel made bladder and high-Pressure blast proof piping.
Safety protection system:
1.Main power over-current breaker
2.Motor reversal protection and indication
3.Low oil protection and indication
4.Overheating pump overload protection and indication
5.Abnormality alarm buzzer and indication
6.Phase failure protection
Specifications:
Model |
Max .temp. (°C) |
Heating capaciry (kw) |
Diatherman ousMedia |
Power (HP) |
Pressure (kg/cm) |
Flow (L/min) |
OilTank Volume(L) |
Pipe Dia |
Dimensions (cm) |
Weight (kg) |
KTC-1 |
120 |
6 |
Oil |
1 |
4.0 |
60 |
8 |
2*1/2” |
65*28*70 |
60 |
KTC-2 |
95 |
6 |
Water |
1 |
4.0 |
60 |
8 |
2*1/2” |
65*28*70 |
60 |
KTC-3 |
150 |
9 |
Oil |
1 |
4.0 |
60 |
8 |
2*1/2” |
65*28*70 |
60 |
KTC2C |
200 |
9 |
Oil |
1 |
5.0 |
60 |
8 |
2*1/2” |
65*28*70 |
70 |
-------------------------------------------------------------------------------------------------------------------------------------
Pre-sale service:
1) provide detailed information, picture, video & quotation for customer;
2) free testing;
3) Professional suggestions.
Guarantee and Repair:
Guarantee: 1 Year in common using condition (except damageable and aitificial)
Repair: 1) We provide technical guidance all life.
2) Within the guarantee period, we will offer customers replacements free of charge for
the broken parts.
Installation:
We provide technical guidance, and also we can offer our technical engineer to buyer's factory for installation If buyers require. Ticket, board and lodging and some related local expenses in Buyer's
country for buyer's account.
1 Plywood case and film
2 According to customer's requires
GuangzhouJiayin Machinery Pte.,Ltd.(Primitive name:Guangzhou Mikasa Machinery Pte., Ltd)
is one of the pioneers in auxiliary plastic forming equipment industry in China,specializing in research,design,manufacture and distribution of and service for such equipment with the technology andexperience accumulated about 30 years.
Our products include crushers,grinders,rubber cutters,dryers,dehumidifiers,suction
machines,color mixers,mould temperature controllers,water chillers,color master batch
propor.wire recycling machine..more
How about the quality of your product?
- Our products manufactured strictly according to national and international standard.

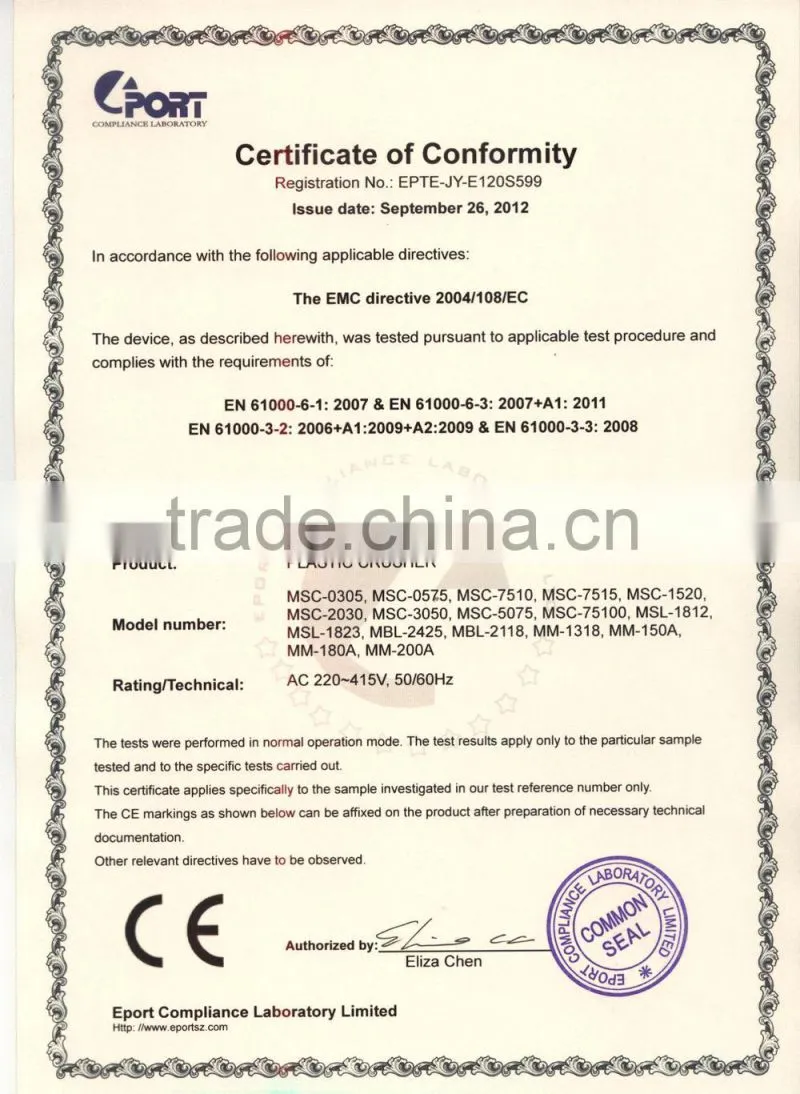

- We have CE ,ISO certification
- We take a test on every product before delivery.
How about price of this product?
- We can give the lowest price than market one.
- We do quotation as soon as possible for any customer.
- Discount can be given according to quantity.
What is the mini quntity?
- We do quotation as soon as possible for any customer.
If you can be custom-made?
- We can make products according to customer's requiments.
What is the voltage?
- 30V 50hz 3 phase.(we can change it according to customer's requires,changing fee)
