Our Products Supply range of LIMING Company
1.Vibrating feeder, two types of GZD and ZSW to meet user’s different processing capacity;
2.First crushing: Jaw crusher, or Impact crusher, or cone crusher to meet user’s choise
3.Secondary crushing: fine jaw crusher, or impact crusher, or cone crusher(spring type, spring and hydraulic type, hydraulic type)
4.Vibrating screen, YK series, linear series, DF series
5.Belt conveyor, stationary type, or mobile type sand stone production line
6.Steel structures, such as feed-in and discharge hoppers, stairways, guardrails, maintenance board, steel channel, etc.
7.Electric control cabinet sand stone production line
8.Diesel power generation set for choosing.

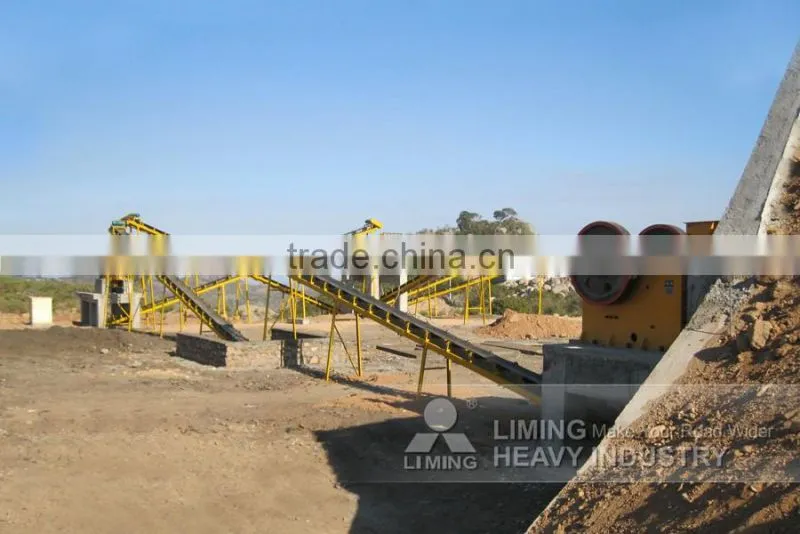

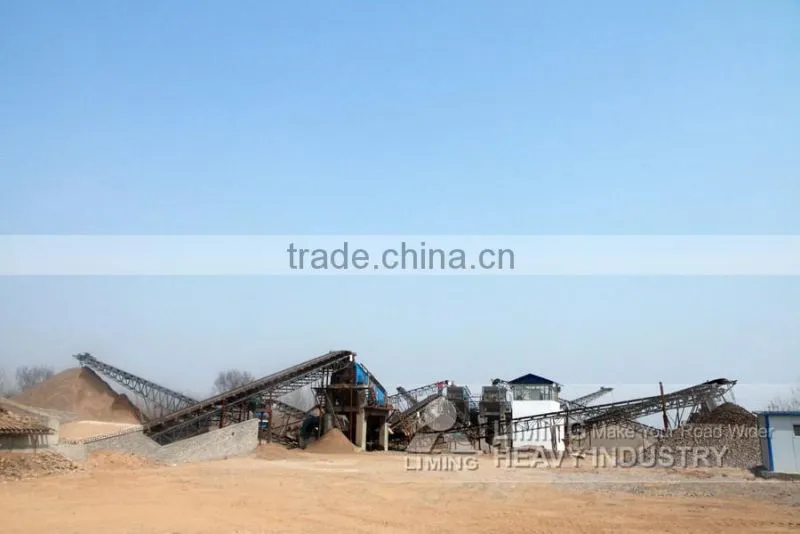

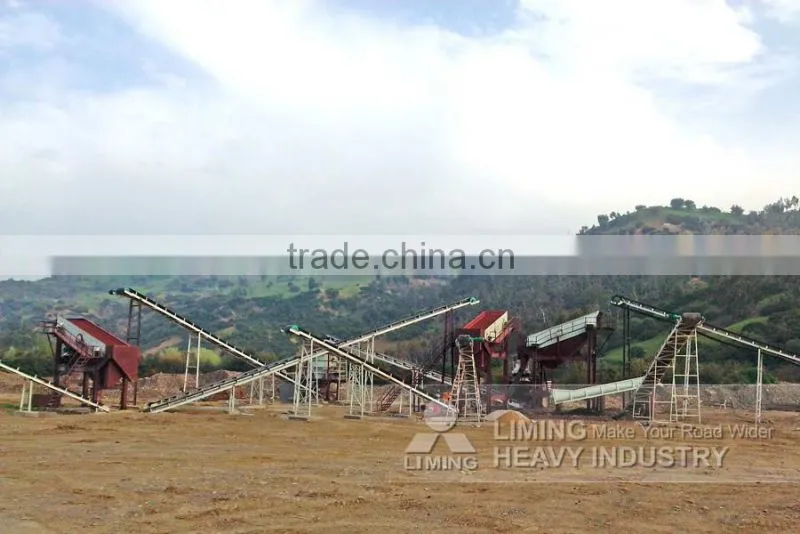

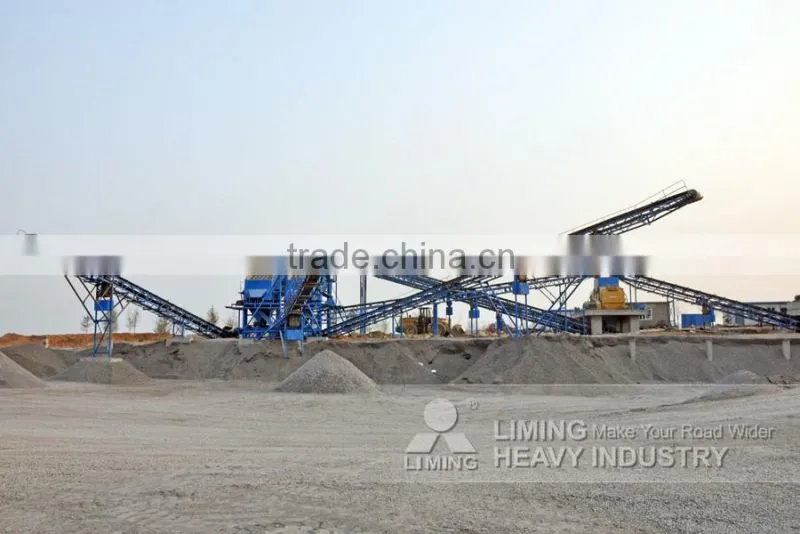

Application of LIMING crusher
LIMING provides a complete line of stone production; the output is widely used in road, bridge, house, high building,
railway, highway, water project as the type of construction material, such as aggregate, foundation stone, etc.

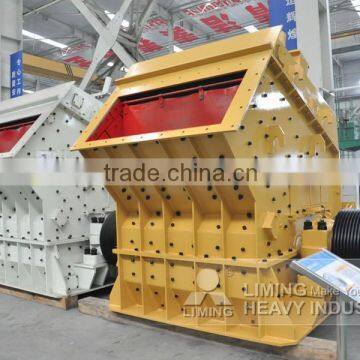

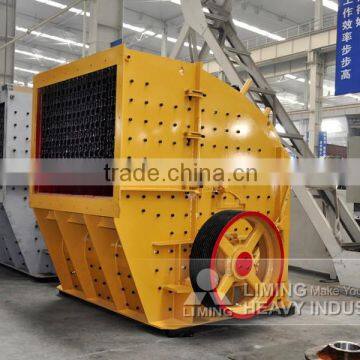

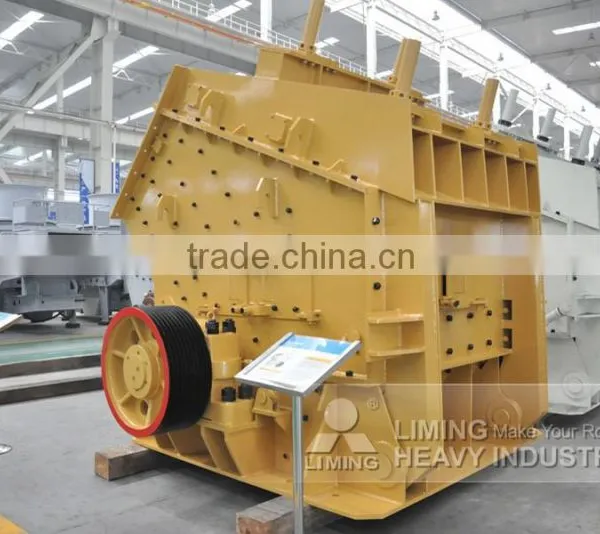

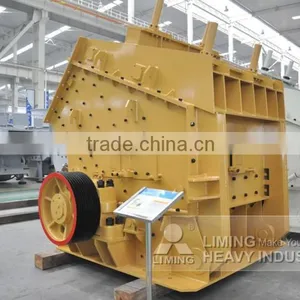

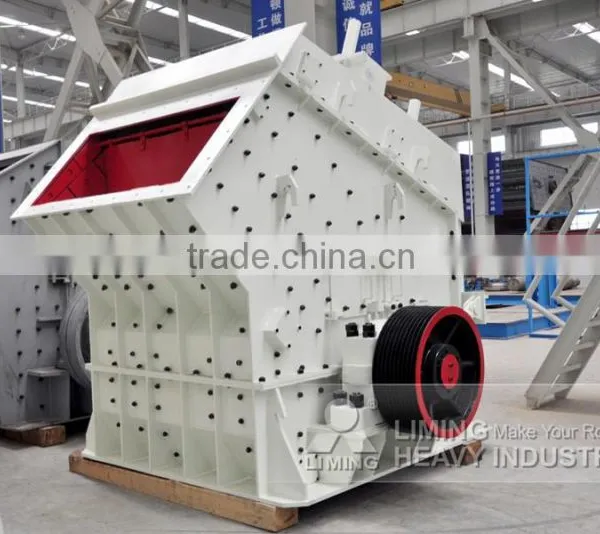

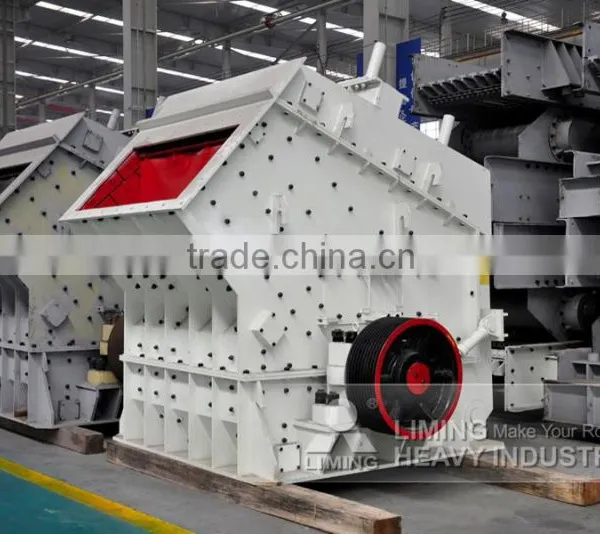

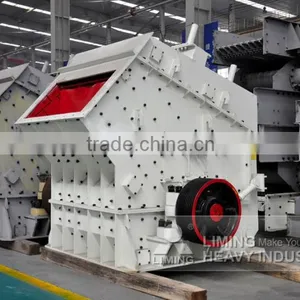

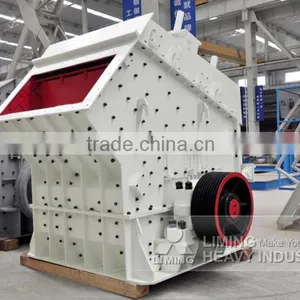

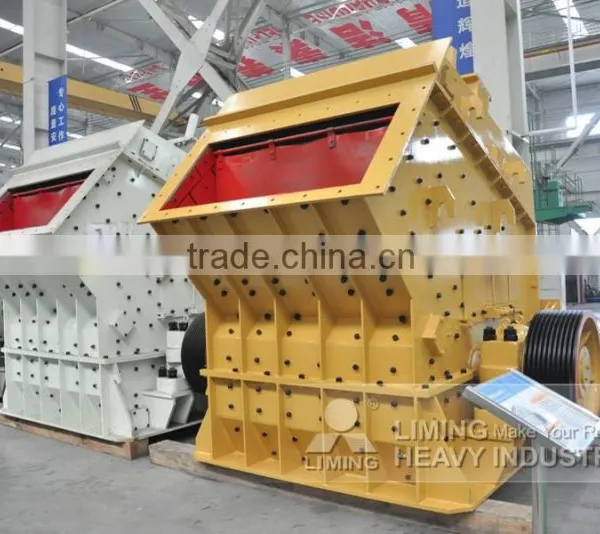

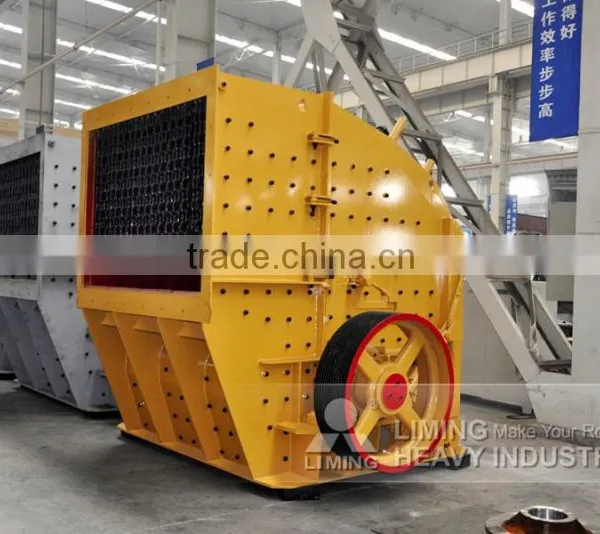

Overview of High efficiency Impact Crusher widely used in Asia/Africa
Impact crusher with high-tech raw material can crush many kinds of materials with max feed size less than 500mm and crushing strength less than 360 MP. The most outstanding advantage of impact crusher is that its finished powder is in good, cubic shape, non-tensile and cranny. It is is widely applied in mining, transportation, energy, construction and chemical industry.

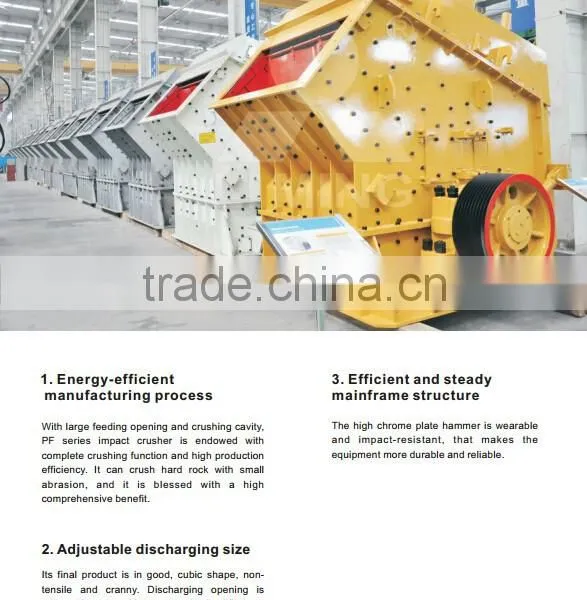

Features of High efficiency Impact Crusher widely used in Asia/Africa
Hammer is made of high chrome; liner board is made of wearable materials;
Specially designed tooth impact plate; More suitable for crushing hard rock, high efficiency, low consumption;
Final products is cubic, discharge opening is adjustable;
Make the crushing flow chart simple.

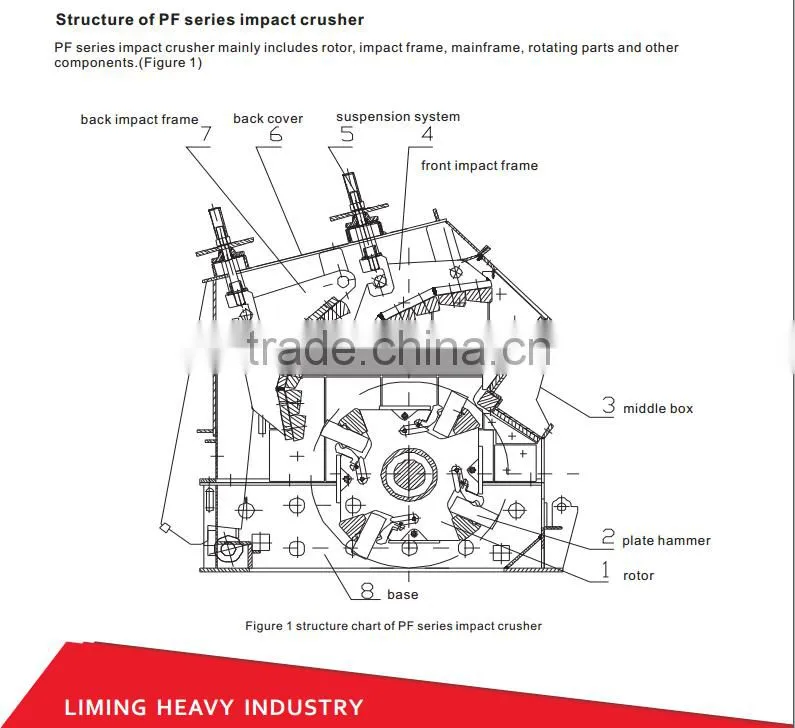

Working Principle of High efficiency Impact Crusher widely used in Asia/Africa

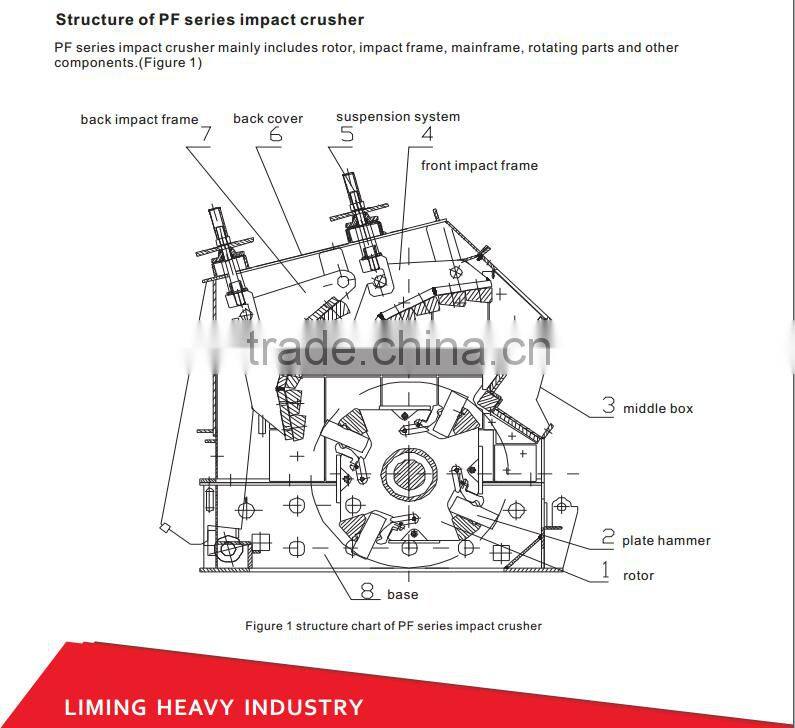

Impact crusher with high-tech raw material crushes materail by striking energy.when it works,the motor drives the rotor rotate at a high speed,on which the blow bar is installed .as soon as the material get into the affecting area of the blow bar,they will be stroke by the blow bar and be thrown to the impact devices around the rotor.the high speed forces the mateyial to rebound from the impact liner to the area where the blow bar effects until they have been crushed to the required size.the clearance between the impact rack and the rotor can be adjusted to change the size and shape of the end product.
Specifications of high efficiency Impact Crusher stone crusher
| Model | Size of rotor (mm) | Feed opening (mm) | Max. feed size (mm) | Capacity (t/h) | Power of Motor (kW) | Weight (t) | Overall Dimensions (mm) |
| PF1010 | Φ1040×1000 | 510×1040 | 200 | 50-90 | 75 | 12.5 | 2455×2090×2800 |
| PF1210 | Φ1260×1050 | 465×1155 | 250 | 70-130 | 110 | 16.5 | 2582×2410×2810 |
| PF1214 | Φ1260×1400 | 465×1485 | 300 | 90-180 | 132 | 19 | 2582×2052×2810 |
| PF1315 | Φ1280×1500 | 700×1540 | 300 | 120-250 | 200 | 24 | 2930×2765×3053 |
Note:Any change of technical data shall not be advised additionally.
After-sales service support
After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.
Technological support
SBM insists on providing clients with overall solutions from equipment recommendation to debugging and installation, worker training, technical support and maintenance.
SBM is provided with independent research and development system, our high reputed engineers and technicians can provide users with overall technical support, including material characteristic analysis, crushing test and process optimization of flow simulation.
Our professional engineers will design the most reasonable scheme for the real production line.
Certifications
The General Research Institute of Liming Heavy Industry focuses on research and development of advanced technology and customer-oriented products as well as building up core competitiveness to makes Liming Heavy Industry a pioneer of the industry. By providing fundamental research results, the institute supports Liming Heavy Industry existing technology and products to be the world's top ones.
The General Research Institute of Liming Heavy Industry is the primary R&D department for technical research and technical management. It is responsible for developing technology applicable to Liming all products, conducting forefront technical research on new products and setting standards; researching vibration, impact, noise, hydraulic technology, power matching and energy saving, new materials and control systems, creating innovative technologies and conceptive products and building up a network-based special and generalized platform for experiments and tests so as to share general experiment and test results.

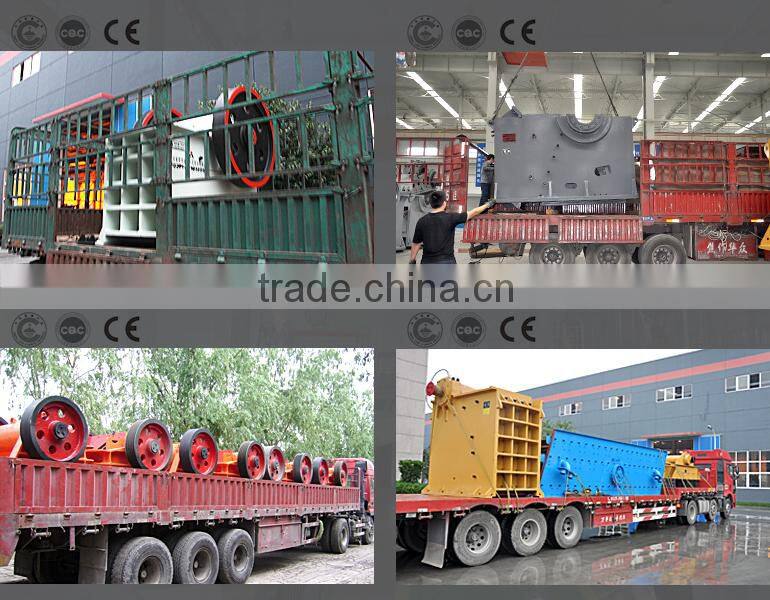

Delivery for Stationary crushing plant
Export standard container 20GP OR 40GP,40HQthe spare parts in wooden case.
Liming Products are exported to more than 100 countries and districts all over the world such as Russia, Central Asia, Middle East, Africa, Southeast Asia, Australia Union, North America, South America, etc.
