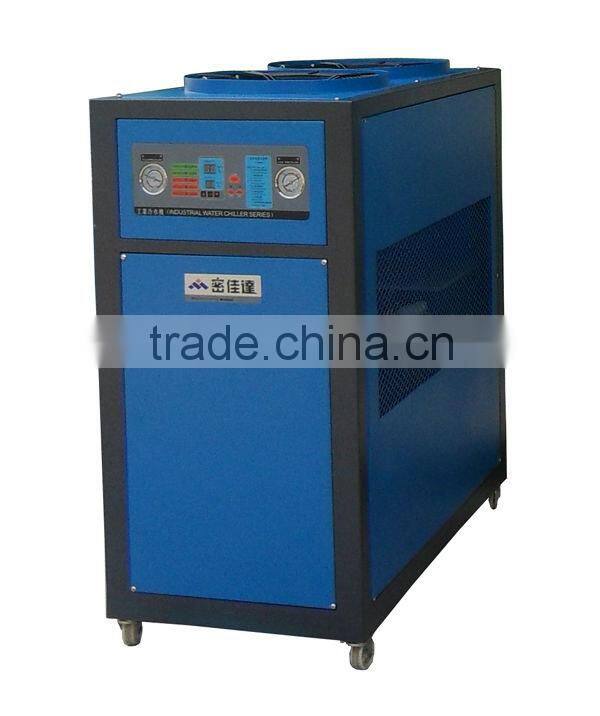

Air-cooled Industrial Chiller
Features:
1, using imported compressors, pumps, super cooling and long life.
2, high-efficiency evaporator and condenser, heat exchange rapidly.
3, stainless steel open-water tank, cleaning maintenance, convenient and quick.
4, dual compressor design, energy saving.
5, safety protection and error indication system.
6,Microcomputer touch-type control,accurate temperature control and simple operation.
Specifications:
Model |
MCA-5 |
MCA-10 |
MCA-15 |
CMA-20 |
MCA-25 |
MCA-30 |
MCA-40 |
|
Refrigerating capacity |
KW |
15 |
29.7 |
44.1 |
58.6 |
69 |
86.2 |
117.2 |
Kcal/h |
12900 |
25600 |
38000 |
50390 |
59340 |
74100 |
100790 |
|
Input power |
3- phase 380V 50HZ |
|||||||
Compressor |
Type |
All-closed vorticity/all-closed piston/semi-closed/screw |
||||||
Input power (HP) |
5HPx1 |
5HPx2 |
5HPx3 |
10HPx2 |
12.5HPx2 |
10HPx3 |
10HPx4 |
|
Quantity of compressor |
1 |
2 |
3 |
2 |
2 |
3 |
4 |
|
Brand |
Japan Sanyo |
American Copeland |
||||||
Built-in freeze water pump |
Power(kw) |
0.75 |
1.5 |
1.5 |
2.25 |
2.25 |
2.25 |
3.75 |
Condensor |
Type |
Efficient copper tube cover aluminum |
||||||
Fan Type |
Low noise outer rotor metal blower |
|||||||
Evaporator |
type |
Stainless steel water tank plate copper tube |
||||||
Dia of outlet and inlet(INCH) |
4×(1/2) |
1.5 |
1.5 |
2 |
2 |
2 |
3 |
|
Water tank capacity(L) |
50 |
120 |
180 |
250 |
300 |
350 |
450 |
|
Refrigerant |
Type |
R-22 |
||||||
Flow control |
Caloric power expansion valve |
|||||||
Magnetic valve |
Castol Italy castol |
|||||||
Filter |
“ALCO” America” ALCO” |
|||||||
Electric material |
Taiwan Taian technology |
|||||||
Controller |
Micro computer digital display control. Degree of precision ±℃ |
|||||||
Temperature range |
3℃------40℃ |
|||||||
Protective device |
High/low pressure protective switch, phase failure protection, overload protective switch, antifreeze switch, time delay protection, over-temperature protection, over-current protection |
|||||||
Dimension(cm) |
125×58×124 |
162×85×160 |
182×93×165 |
235×90×165 |
235×93×170 |
240×93×170 |
245×93×175 |
|
Water-cooled Industrial Chiller
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Features:
1,Designed with imported compressor and water pump for ultra-powerful refrigeration,with prolonged service life;
2,High-efficiency evaporator and condenser realizing rapid thermal transfer;
3,Open-type stainless steel water tank,easy and fast to clean and maintain;
4,Double-compressor design to save energy and power;
5,Well-structured safety protection and trouble indication system;
6,Microcomputer touch-type control,accurate temperature control and simple operation.
Safety protection system:
No total power circuit breaker;
Compressor overload protection;
Circulating pump overload protecton;
Anti-phase and open phase protection;
High&Low pressure protection for refrigerant;
Freezing protection;
Trouble indicator and abnormality buzzer alarm.
Specifications of water chiller
Model |
MCW-5 |
MCW-10 |
MCW-15 |
MCW-20 |
MCW-30 |
MCW-40 |
|
|
Refrigerating Capacity |
KW |
15 |
29.7 |
44.1 |
58.6 |
69 |
117.2 |
Kcal/h |
12900 |
26230 |
38700 |
52460 |
79120 |
104920 |
|
Input power |
3 phase 380v 50hz |
||||||
Compressor |
Type |
All-closed vorticity/all-closed piston/semi-closed/screw |
|||||
Input Power |
5HPx1 |
5HPx2 |
5HPx3 |
10HPx2 |
12.5HPx2 |
10HPx3 |
|
Quantity of compressor |
1 |
2 |
3 |
2 |
2 |
3 |
|
Built-in freeze water pump |
Power(KW) |
0.75 |
1.5 |
1.5 |
2.25 |
2.25 |
3.75 |
Condenser |
Type |
shell and coil condenser |
|||||
Fan Type |
1 |
1.5 |
1.5 |
2 |
2 |
3 |
|
Evaporator |
Type |
Stainless steel water tank plate copper tube |
|||||
Dia of outlet and inlet(inch) |
4x(1/2) |
1.5 |
1.5 |
2 |
2 |
3 |
|
Water tank capacity(L) |
50 |
120 |
180 |
250 |
350 |
450 |
|
Refrigerant |
Type |
R-22 |
|||||
Flow control |
Caloric power expansion Valve |
||||||
Magnetic valve |
Italy castol |
||||||
Filter |
America “ALCO” |
||||||
Electric material |
Taiwa taian technology |
||||||
Controller |
Microcomputer digital display control.Degree of precision ±℃ |
||||||
Temperature range |
3℃----40℃ |
||||||
Protective device |
High/low pressure protective switch,phase failure protection,overload protective switch,antifreeze switch,time delay protection,over-temperature protection,over-current protection. |
||||||
|
|
||||||
Dimension |
(CM) |
98x50x85 |
162x60x136 |
172x70x136 |
206x85x138 |
220x85x138 |
245x93x145 |
1 Plywood case and film
2 According to customer's requires
Pre-sale service:
1) provide detailed information, picture, video & quotation for customer;
2) free testing;
3) Professional suggestions.
Guarantee and Repair:
Guarantee: 1 Year in common using condition (except damageable and aitificial)
Repair: 1) We provide technical guidance all life.
2) Within the guarantee period, we will offer customers replacements free of charge for
the broken parts.
Installation:
We provide technical guidance, and also we can offer our technical engineer to buyer's factory for installation If buyers require. Ticket, board and lodging and some related local expenses in Buyer's
country for buyer's account.
GuangzhouJiayin Machinery Pte.,Ltd.(Primitive name:Guangzhou Mikasa Machinery Pte., Ltd)
is one of the pioneers in auxiliary plastic forming equipment industry in China,specializing in research,design,manufacture and distribution of and service for such equipment with the technology andexperience accumulated about 30 years.
Our products include crushers,grinders,rubber cutters,dryers,dehumidifiers,suction
machines,color mixers,mould temperature controllers,water chillers,color master batch
propor.wire recycling machine..more
How about the quality of your product?
- Our products manufactured strictly according to national and international standard.
- We have CE ,ISO certification
- We take a test on every product before delivery.
How about price of this product?
- We can give the lowest price than market one.
- We do quotation as soon as possible for any customer.
- Discount can be given according to quantity.
What is the mini quntity?
- We do quotation as soon as possible for any customer.
If you can be custom-made?
- We can make products according to customer's requiments.
What is the voltage?
- 380V 50hz 3 phase.(we can change it according to customer's requires,changing fee)
