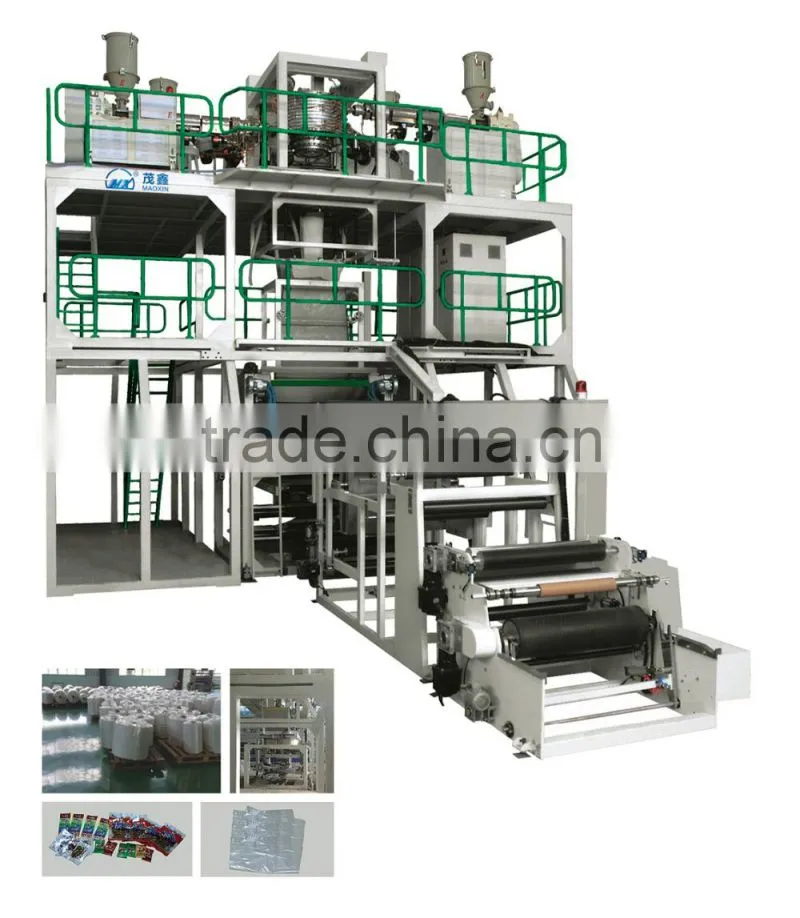

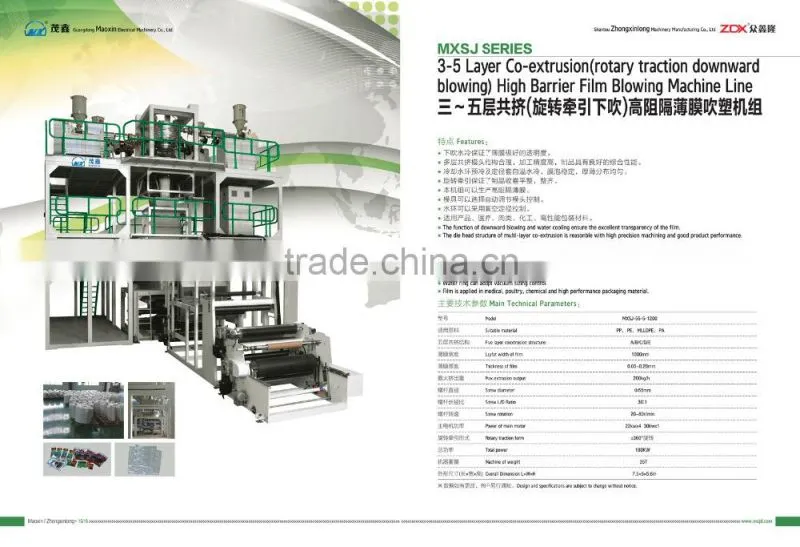

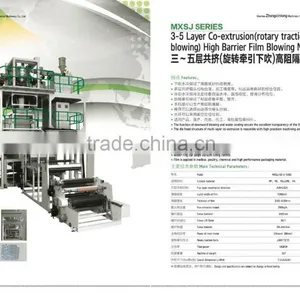

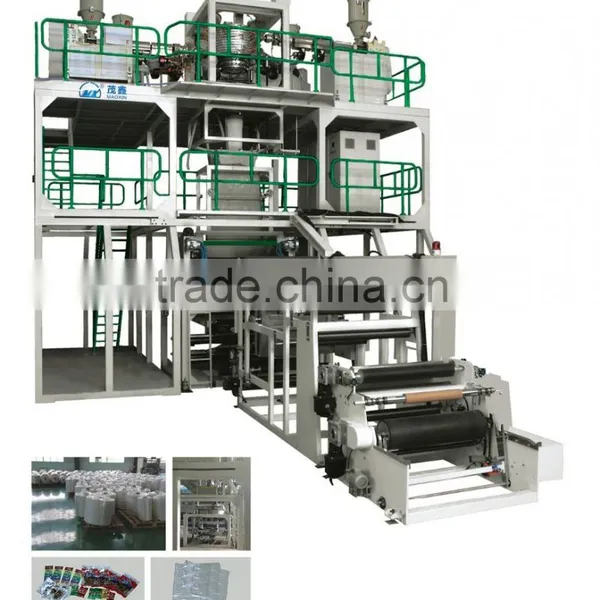

Help CenterFilm Blowing Machine With Co-extrusion (rotary Downward Blowing)
Related Products
-
3 Layer Co-extrusion Heat Shrink Film Blowing Machine - Maoxin MachineryUS$ 190,000 - 210,000MOQ: 1 Set -
% Layer Co- Extrusion Film Blowing Machine for SaleUS$ 50,000 - 60,000MOQ: 1 Set
-
Blowing Film Machine for Courier BagUS$ 45,000 - 100,000MOQ: 1 Set
-
Blown Film Machine for Co-extrusion TypeUS$ 190,000 - 210,000MOQ: 1 Set
-
Friction Film Extruder Line/packing Plastic Bag for ClothesUS$ 10,000 - 40,000MOQ: 1 Set
Features:
* The function of downward blowing and water cooling ensure the excellent transparency of the film.
* The die head structure of multi-layer co-extrusion is reasonble with high precision machining and good product performance.
* The pre-cooling of cooling water ring and the sharp cooling of sizing cover’s overflow water enable the film bubble to be stable, thus distribute the thickness evenly.
* Rotary driving ensures the levelling and regularity of the finished product’s rewinding.
* The line is used for high barrier film production.
* Die head unit can adopt auto die head control.
* Water ring can adopt vacuum sizing control.
* Film is applied in medical, poultry, chemical and high performance packaging material.
Main Technical Parameters:
Model |
MXSJ-55-5-1200 |
Suitable material |
PP,PE,MLLDPE,PA |
Five layer co-extrusion structure |
A/B/C/D/E |
Width of film |
1000mm |
Thickness of film |
0.05~0.20mm |
Max extrusion output |
200kg/h |
Screw diameter |
55mm |
Screw L/D Ratio |
30:1 |
Screw rotation |
20~80r/min |
Power of main motor |
22kwx4 30kwx1 |
Rotary traction form |
±360° rotation |
Total power |
180kw |
Weight of machine |
35T |
Overall Dimension L×W×H |
7.5×5×5.6m |
