polyethylene bag making machine/shrink film manufacturers
Product usage: Can used to be packed regular and irregular shape products. Such as automotive products, plastic products, stationery, books, electronics, circuit board, MP3, VCD, crafts, photo frames and other wood products, toys, pesticides, daily necessities, food, cosmetics, canned beverages, dairy, Pharmaceutical, cassette and videotapes and other products.

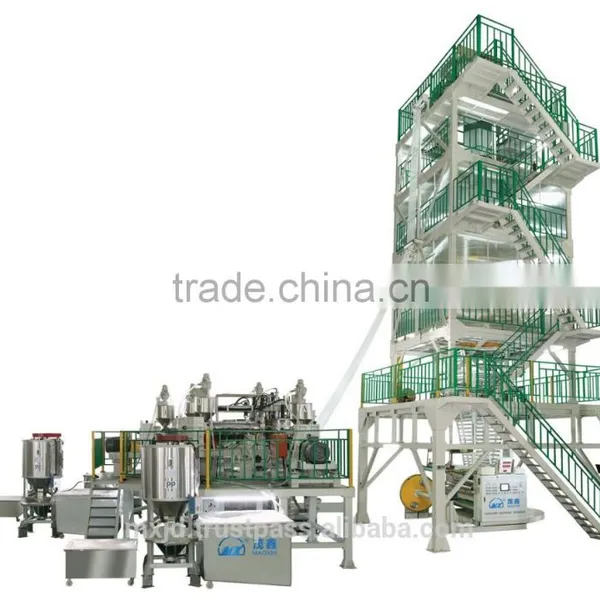

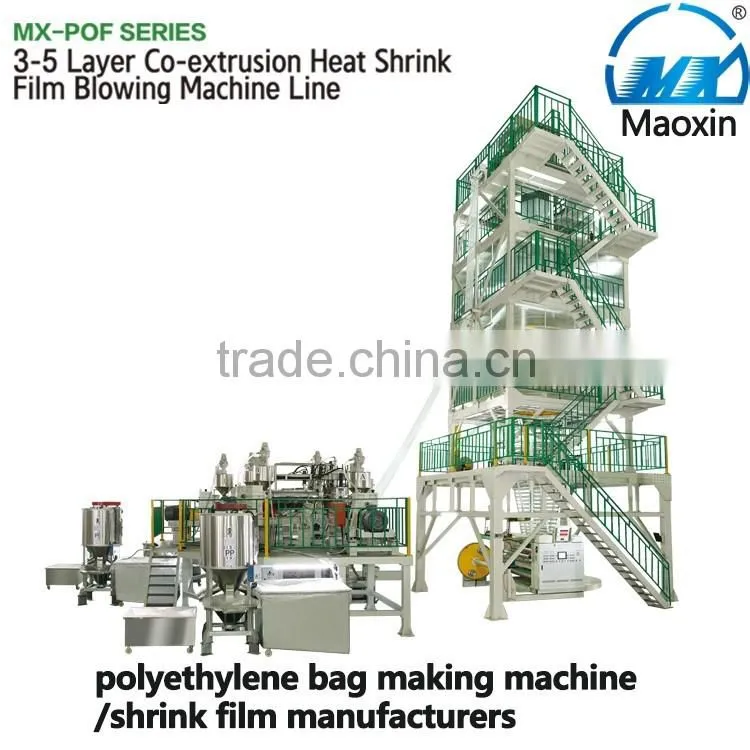

The POF hot shrink film blowing machine adopts multi-layer(five layer, three layer) co-extrusion type. The film tube downward blowing and get though gauge system and fixing shape water ring,and then blow up secondary. The heating furnace adopts imported infrared ceramic heater. The temperature controlling system adopts proportional control system, which can automatic test environmental temperature and adjust the heating temperature ratio, to reach the character of heating fast and high precision in controlling temperature. The machine is controlled by computer with two touch screens which are convenient for operating. The machine can speed up on line to reduce the waste of changing film specification and re-blowing so that increase yield. The machine equip with infrared gauge system on line to increase the thickness precision.
Model |
MX-POF-3C |
Screw Diameter |
65 90 65 |
Screw L/D |
30:1 |
Screw Rotating Speed |
70r/min |
Max Output |
360kg/h |
Mainframe Power |
30kw 75kw 37kw |
Film Thickness |
12μm-35μm |
Film Max Folded Diameter |
1600-2200mm |
Total Power |
435kw |
Weight |
58T |
Size |
13.6x6x16.7M |
Guangdong Maoxin Electrical Machinery Co.,Ltd.has been set up since 2001 in Jinping Industrial Park, Shantou city, where all the leading machenics domestic and international companies for export has been gathered, producing, packaging and servicing to meet all the needs of clients.
For machinery equipments, we mostly supply domestic and foreign equipments with the following main products:
* Film blowing machines,
* Packaging machines,
* Printing machines,
* Bag cutting machines,
* Cup making machines,
* Complex machine,
* Sheet machines, and other computer accessories ….
Providing a good background in Guangdong market as well as a good base for international market, with the philosophy of “ human as the leader, technology as the priority” and a commitment toward quality and further business to create real values to clients, Maoxin hopes to have opportunities to cooperate with you for a brighter future!
Shantou Corporation:The Second End of Chaoyang Road, Jinyuan Industrial Zone, Jinping Area, Shantou City, Guangdong Province (At the Junction with Jinfeng Road).
Tel:0086-754-88881005
Fax:0086-754-88215671
Http:
E-mail:alexzhang(at)
Vietnam Office: 304 Room, 34T Building, Trunghoa Nhan Chinh Area, CayGiay District, Hanoi city, Vietnam.
Tel:0084-975697998
Fax:0084-2462810457
Skype:dongocvn87
Http:maoxin.vn
E-mail:mxvn68(at)
polyethylene bag making machine/shrink film manufacturers
