MXCM-HDPE/LDPE Film Blowing Machine Unit
Note: can connect single / double color printing machine
* Suitable for blowing LDPE, HDPE,LLDPE film.
* Widely used in packaging for industrial products, textiles, Clothes bag, food package , agricultural,etc.
* The cylinders and screw rods of extruders are made of high-quality alloy steel, nitrided and precision machining. With the best hardness and corrosion resistance.
* Platform rail worktable to be operated more convenient.
* The rolling device adopts torque motor to keep proper tension, orderly rolling and convenient to replace the roll.
Main Technical Parameters:MXCM-700~1200
Model |
MXCM-700 |
MXCM-800 |
MXCM-1000 |
MXCM-1200 |
Screw diameter(mm) |
Φ45 |
Φ55 |
Φ60 |
Φ65 |
Screw L/D Ratio |
28:1 |
28:1 |
28:1 |
28:1 |
Screw rotation |
10-100r/min |
10-100r/min |
10-100r/min |
10-100r/min |
Power of main motor(kw) |
11 |
15 |
18.5 |
22 |
Max.Extrude Output |
40kg/h |
50kg/h |
65kg/h |
76kg/h |
Single-face Thickess of film(mm) |
0.008-0.10 |
0.008-0.10 |
0.01-0.10 |
0.01-0.10 |
Max Film Folding Dia(mm) |
600 |
800 |
1000 |
1200 |
Total Power(KW) |
18 |
22 |
28 |
32 |
Machine of weight(T) |
2.8 |
3.2 |
3.8 |
4.6 |
Overall Dimension(L×W×H) |
4.2×1.8×3.6m |
4.4×2×3.8m |
4.6×2.3×4.5m |
4.8×2.5×4.8m |
Main Technical Parameters:MXCM-700~1200
Model |
MXCM-1500 |
MXCM-2000 |
MXCM-2500 |
MXCM-3000 |
Screw diameter(mm) |
Φ75 |
Φ100 |
Φ110 |
Φ120 |
Screw L/D Ratio |
28:1 |
28:1 |
28:1 |
28:1 |
Screw rotation |
10-100r/min |
10-100r/min |
10-100r/min |
10-100r/min |
Power of main motor(kw) |
30 |
55 |
75 |
90 |
Max.Extrude Output |
86kg/h |
160kg/h |
180kg/h |
220kg/h |
Single-face Thickess of film(mm) |
0.01-0.10 |
0.02-0.10 |
0.02-0.10 |
0.02-0.10 |
Max Film Folding Dia(mm). |
1500 |
2000 |
2500 |
3000 |
Total Power(kw) |
52 |
80 |
110 |
130 |
Machine of weight(Kg) |
5.6 |
7 |
9.6 |
11 |
Overall Dimension L×W×H(M) |
6×2.9×6.2 |
8×3.5×8 |
9×4.2×9.6 |
10×4.6×11 |

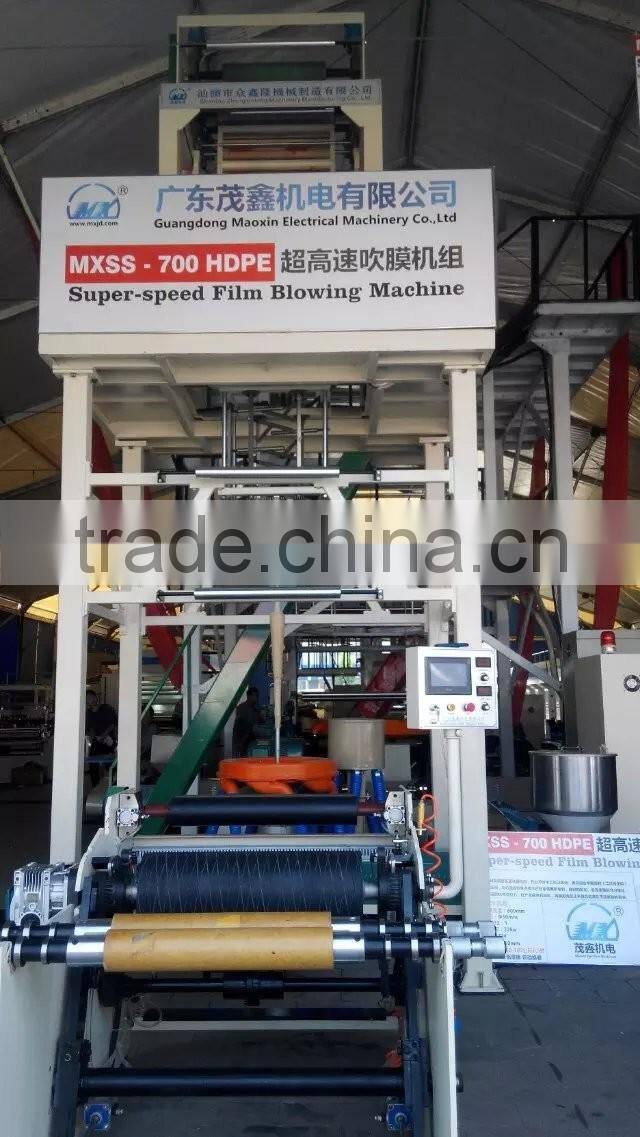

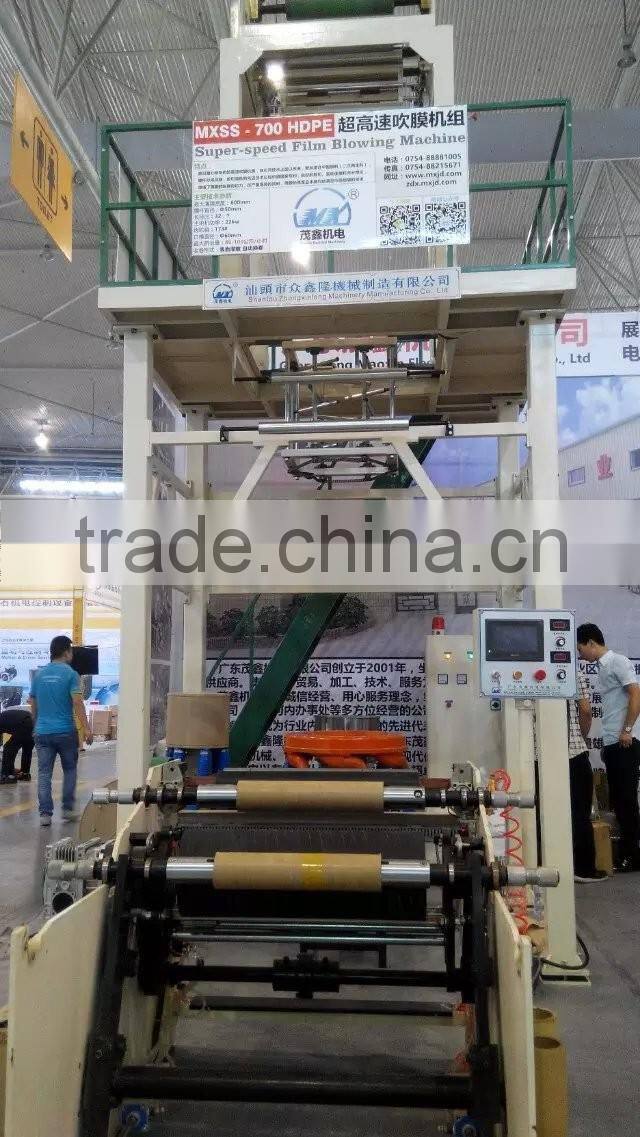

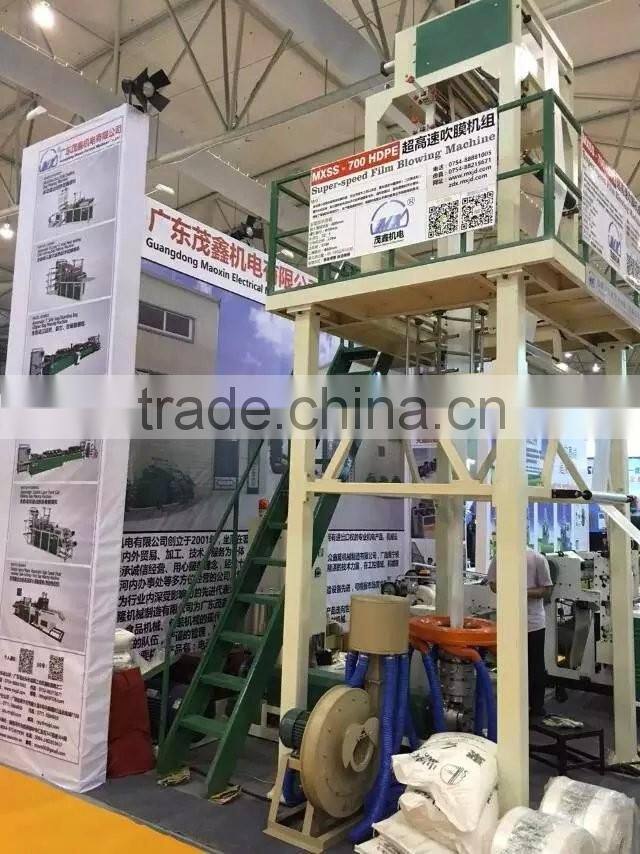

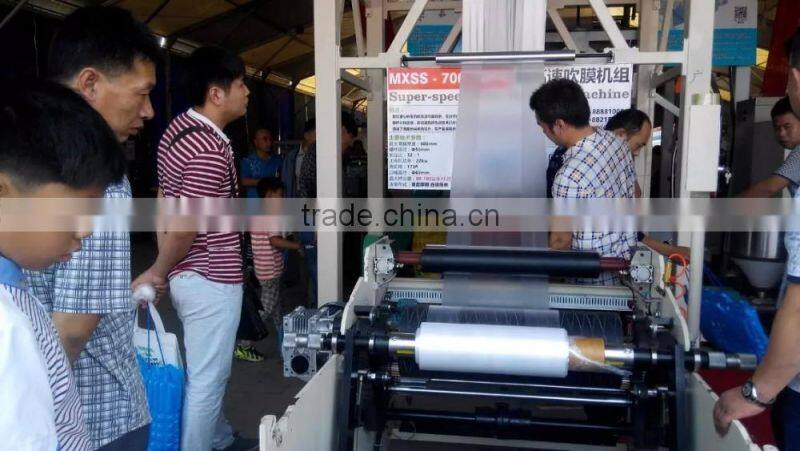

Photo:
Guangdong Maoxin Electrical Machinery Co,. Ltd commits that our goods arehigh quality, attractive design and competitive price.We hope we could bring long-lasting cooperation with partners all over the world.
Guangdong Maoxin Electrical Machinery Co,. Ltd
+Add: No 89 Guanghua Road Shantou City
+Tel: +86 754-8821 2599/8821 5672
+Fax: +86 754-8821 5671
+Web:
+QQ: 110677625
Maoxin Company Representative Office in Hanoi Vietnam
+Add: 304-34T- TrungHoa - NhanChinh- CauGiay- Hanoi.
+Tel: +84 4628 10457/ +84 9756 97998
+Fax: +844628 10457
+Web: www.maoxin.vn
+Skype: dongocvn87
