Automatic Zipper Bag Making Machine With High Speed Best Quality

Automatic Zipper Bag Making Machine With High Speed Best Quality photo-1
US$ 12,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Film
Plastic Processed:
Other
Payment & Shipping
Payment Methods:
Port of Shipment:
Shantou; Hai Phong Sai Gon
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Film
Plastic Processed Other
Blow Moulding Type Extrusion Blow Moulding
Automatic Yes
Place of Origin Guangdong, China
Brand Name Guangdong Maoxin Electrical Machinery Co., Ltd
Model Number MXZQD+Z SERIES
Voltage 380V
Power(W) 6.5kw, 7.2kw, 7.5kw
Dimension(L*W*H) different
Weight 4,2 T
Certification CE
Warranty 1 year
After-sales Service Provided Overseas service center available

 WELCOME TO GUANGDONG MAOXIN ELECTRICAL MACHINERY CO., LTD

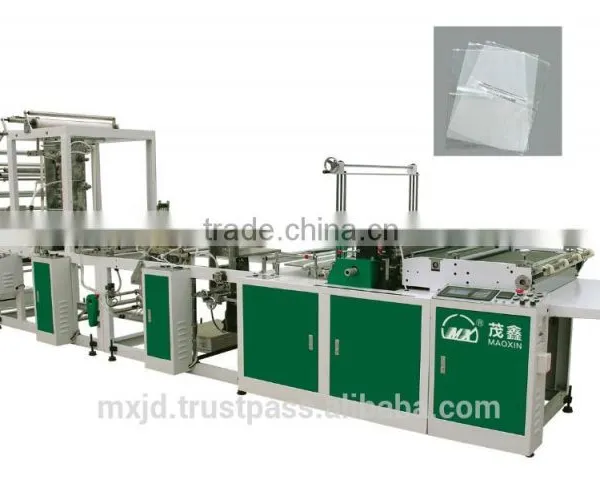

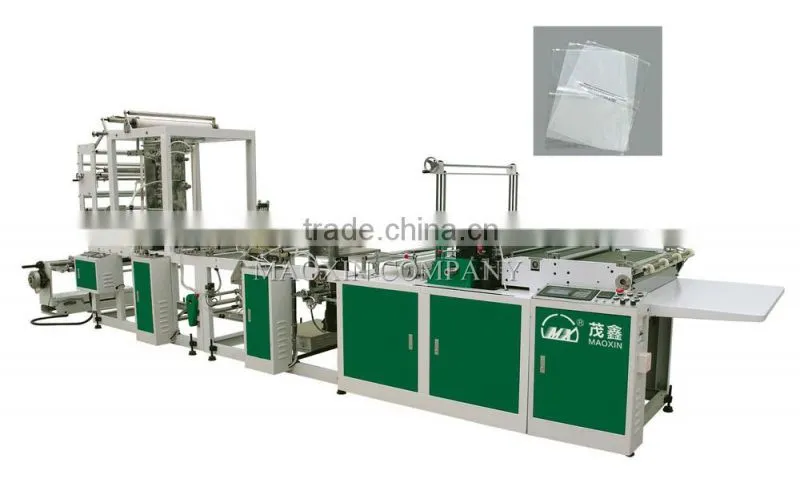

High Quality Automatic Zipper Bag Making Machine
Accessories

* Mainly produce plastic bag such as clip chain bag, double inside folded bag, zipper garment bag, etc.

* Servo motor system and liquid crystal display screen control. TL50 photocell eye tracking. Main motor frequency converter speed control.

* Film feeding device equipped automatic correction and magnetic powder tension control, feeding evenly and tension properly.

* High accuracy automatic temperature control, different thickness film can be sealed strong and beautiful.

* Feeding is uniform and neat, imported conveyor belt and frequency converter speed control, stable homogeneous with bag.

* Imported heat-resistant steel hot knife, deformation resistance, not sticking knife.

* Online fork bottom, various kinds of flanging, synchronous pneumatic drilling and other functions, product size precision, sealing strong.

   It’s the preferred equipment for producing clip chain bag, concave and convex bag, handbag, drawing rope bag and other plastic bag.



Main Technical Parameters:



Model

MXRQD+Z-700

MXRQD+Z-800

MXRQD+Z-1000

Max.Bag Width

700mm

800mm

1000mm

Max.Bag Length

40-700mm

50-700mm

50-800mm

Machine speed

30-150pcs/min

30-130pcs/min

30-120pcs/min

Adapt film thickness

0.02-0.20mm

0.02-0.20mm

0.02-0.20mm

Tolerance

±1mm

±1mm

±1mm

Power Required

6.5KW

7.2KW

Machine size

5.8x1.25x1.5m

5.8x1.35x1.5m

6.1x1.55x1.6m

Machine N.W

1150KG

1250KG

1450KG

 Design and specifications are subject to change without notice.

Detailed Images

Automatic zipper bag making machine with high speed best quality

products

Automatic zipper bag making machine with high speed best qualityAutomatic zipper bag making machine with high speed best qualityAutomatic zipper bag making machine with high speed best quality



 Automatic zipper bag making machine with high speed best quality



PACKING & SHIPPING

Automatic zipper bag making machine with high speed best quality



Company Information

Guangdong Maoxin Electrical Machinery Co.,Ltd.has been set up since 2001 in Jinping Industrial Park, Shantou city, where all the leading machenics domestic and international companies for export has been gathered, producing, packaging and servicing to meet all the needs of clients.

Automatic zipper bag making machine with high speed best quality

For machinery equipments, we mostly supply domestic and foreign equipments with the following main products:
     * Film blowing machines,
     * Packaging machines,
     * Printing machines,
     * Bag cutting machines,
     * Cup making machines,
     * Complex machine,
     * Sheet machines, and other computer accessories ….

Providing a good background in Guangdong market as well as a good base for international market, with the philosophy of “ human as the leader, technology as the priority” and a commitment toward quality and further business to create real values to clients, Maoxin hopes to have opportunities to cooperate with you for a brighter future!
