Automatic Carbon Steel Vibrating Fluidized Bed Dryer

Automatic Carbon Steel Vibrating Fluidized Bed Dryer thumbnail-1
Automatic Carbon Steel Vibrating Fluidized Bed Dryer thumbnail-2
Automatic Carbon Steel Vibrating Fluidized Bed Dryer thumbnail-3
Automatic Carbon Steel Vibrating Fluidized Bed Dryer thumbnail-4
Automatic Carbon Steel Vibrating Fluidized Bed Dryer thumbnail-5
Automatic Carbon Steel Vibrating Fluidized Bed Dryer thumbnail-6
Automatic Carbon Steel Vibrating Fluidized Bed Dryer photo-1
Automatic Carbon Steel Vibrating Fluidized Bed Dryer photo-2
Automatic Carbon Steel Vibrating Fluidized Bed Dryer photo-3
Automatic Carbon Steel Vibrating Fluidized Bed Dryer photo-4
Automatic Carbon Steel Vibrating Fluidized Bed Dryer photo-5
Automatic Carbon Steel Vibrating Fluidized Bed Dryer photo-6
US$ 30000.00 - 100000.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Fluid Bed Drying Equipment
Place of Origin:
Jiangsu, China
Contact Supplier Request Quote Chat Now
Jiangyin Lotrot International Commerce Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI for Automatic Carbon Steel Vibrating Fluidized Bed Dryer
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Fluid Bed Drying Equipment
Place of Origin Jiangsu, China
Brand Name LOTROT
Model Number ZLG
Voltage 380V
Power(W) 0~10KW
Dimension(L*W*H) Depends on the model
Weight Depends on the model
Certification CE ISO
Warranty 1 Year, 1 year
After-sales Service Provided Engineers available to service machinery overseas

Quick Details of Automatic Carbon Steel Vibrating Fluidized Bed Dryer

Brand Name

Lotrot

Model Number

ZLG

Area of Fluidized-bed

0.9 m2~10 m2

General Description of Automatic Carbon Steel Vibrating Fluidized Bed Dryer

The fluid bed dryer adopt full sealed structure,uniform fluidization, without phenomenon of gap and blowing out,and get uniform drying and cooling product .

Automatic Carbon Steel Vibrating Fluidized Bed Dryer

Work Principle of  Automatic Carbon Steel Vibrating Fluidized Bed Dryer

After the material entering into the machine through feed inlet,under the effect of vibration, the material make the throwing straight forward movement  along the horizontal direction ,the hot air move upwards through the fluidized bed,and make the heat exchange with the wet material,the wet air is discharged through outlet after dedusting by cyclone separator,and the dried material is discharged through the discharge gate.

Features of  Automatic Carbon Steel Vibrating Fluidized Bed Dryer

1,The vibration source is vibration motor. It features smooth operation, convenient maintenance, low noise and long life;
2,Uniform fluidization, without phenomenon of  gap and blowing out,and get uniform drying and cooling product ;
3,Good adjustability, wideadaptation,can realize stepless adjustment of material thickness ,movement speed inside the machine and full amplitude changes;
4,Small damage on the surface of the material,and can be used for drying fragile materials,not influence the woking efficiency;
5,Adopting full sealed structure,effectively prevent the cross infection  between raw material and air ,and keep work environment clean;
6,High mechanical efficiency and  thermal efficiency,good energy saving effect, saving 30-40% energy than the general drying device.

Specification of  Automatic Carbon Steel Vibrating Fluidized Bed Dryer

Model

Area of Fluidized-bed/m2

 Inlet Air Temperature/℃

Outlet Air Temperature/℃

Capacity to Moisture Evaporation /kg/h

Vibration Motor

Model

Power(kw)

ZLG0.30x3

0.9

70-140

40-70

20-35

ZDS10-6

0.75×2

ZLG0.30x4.5

1.35

35-50

ZDS10-6

0.75×2

ZLG0.45x4.5

2.025

50-70

ZDS10-6

1.1×2

ZLG0.60x4.5

2.7

70-90

ZDS10-6

1.1×2

ZLG0.45x6

2.7

80-100

ZDS10-6

1.1×2

ZLG0.60x6

3.6

100-130

ZDS25-6

1.5×2

ZLG0.75x6

4.5

120-170

ZDS25-6

1.5×2

ZLG0.9x6

5.4

140-170

ZDS30-6

2.2×2

ZLG0.60x7.5

4.5

130-150

ZDS30-6

2.2×2

ZLG0.75x7.5

5.625

150-180

ZDS40-6

3.0×2

ZLG0.9x7.5

6.75

160-210

ZDS40-6

3.0×2

ZLG1.2x8

9.6

200-280

ZDS50-6

3.7x2

Application of  Automatic Carbon Steel Vibrating Fluidized Bed Dryer

This device is suitable for drying and cooling powdery and granular materials of chemical, pharmaceutical, food, dehydrated vegetables, food, mining industry,etc.. Such as citric acid, monosodium glutamate, borax, ammonium sulphate, compound fertilizer, turnip, silk, soybean meal, grains, seeds, slag, sugar, etc.

Company Information

Jiangyin Lotrot Commerce Co., LTD is the subsidiary company of Jiangyin Hengtai Drying Equipment Co., LTD,which is specialized in producing drying equipment.
 The major products is including mechanical equipment(boiling drying, fluid bed dryer, drying oven, wet scrubber,etc),chemical products ,labor protection products,etc. The mechanical equipment is sold out to France,Turkey,Japan,Uzbekistan,etc.And it is favored by customers domestic and overseas.

Automatic Carbon Steel Vibrating Fluidized Bed Dryer

Factory Advantage

Manufacturer
Over 15 years dryer manufacturers
Strict quality control
free trial
Fast Delivery
Professtional after-sale service
OEM& ODM accept

Project Case

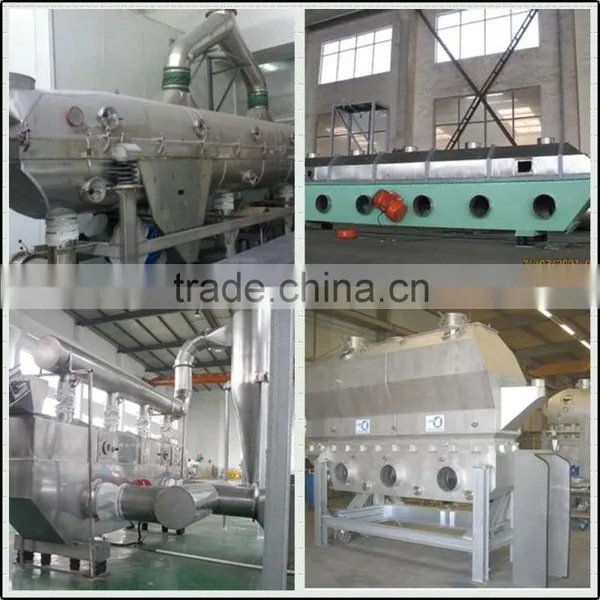

Automatic Carbon Steel Vibrating Fluidized Bed Dryer

Our Customer

 Automatic Carbon Steel Vibrating Fluidized Bed Dryer

Packing and Shipping of Automatic Carbon Steel Vibrating Fluidized Bed Dryer

Packaging Details:wooden case
Delivery Detail: 30-60 days

LOROT Support

Besides domestic market,our products has been exported to Russia,France,Japan,Turkey,Uzbekistan,etc.

We  insist on  "the quality of products is our life" all the time,and guarantee the quality of goods strictly and offer the best service to our customers.

Pre-sale Service:

1,Selection of Equipment Model;

2,According to customer's requirement,providing schematic design and structure chart;

3,FreeTrial of customer's sample ,and providing installation drawing and structure chart after satisfying with the result of sample testing;

4,Designing and Manufacturing the equipment for customer based on customer's requirement.

After-sale Service:

1,1 year warranty ;

2,Life-long service after sale;

3,Staff Training

4,Technical Assistance of our technical engineer.
