Home > Manufacturing & Processing Machinery > Chemical Equipment & Machinery > Chemical Drying Equipment > GFG High Effective Fluidized Bed Drier

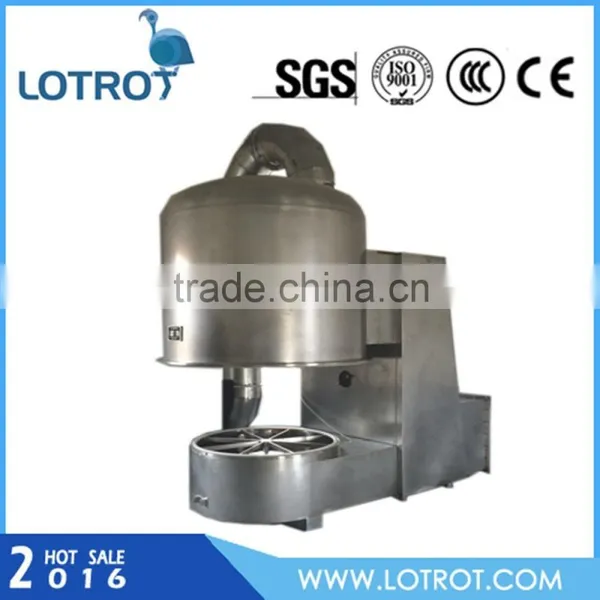

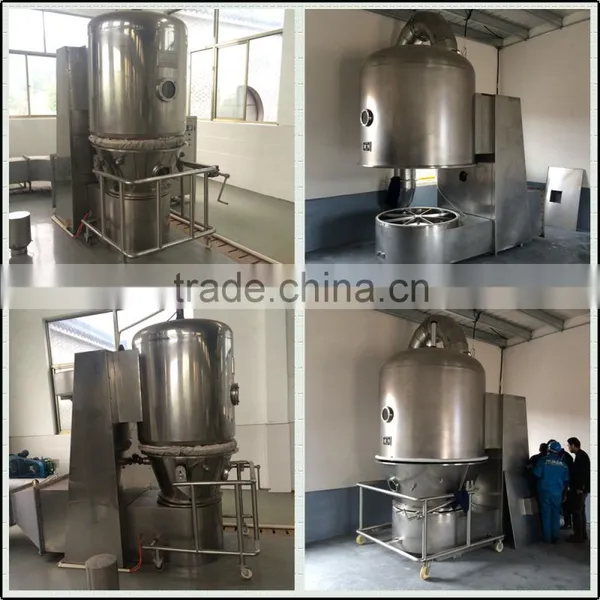

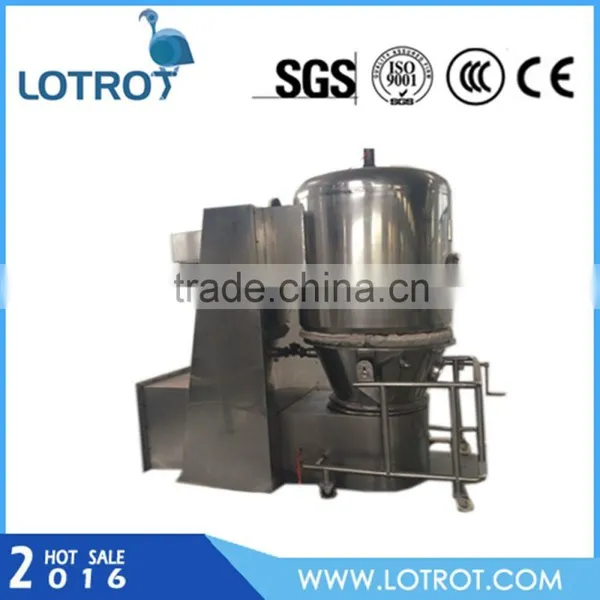

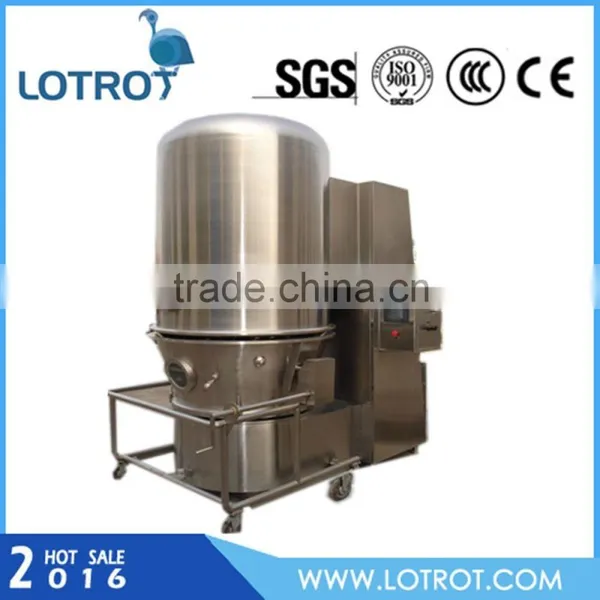

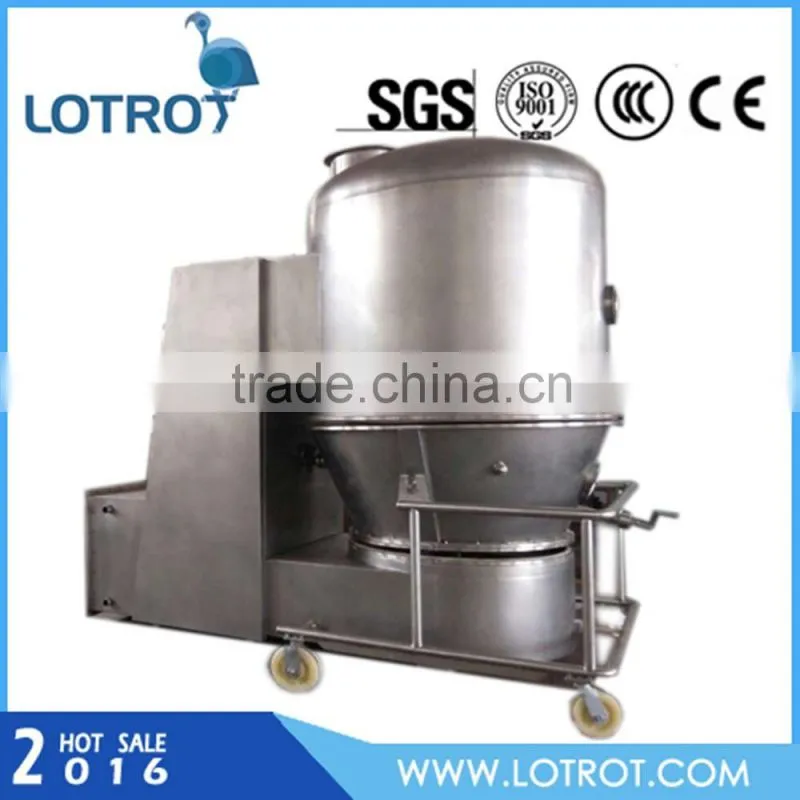

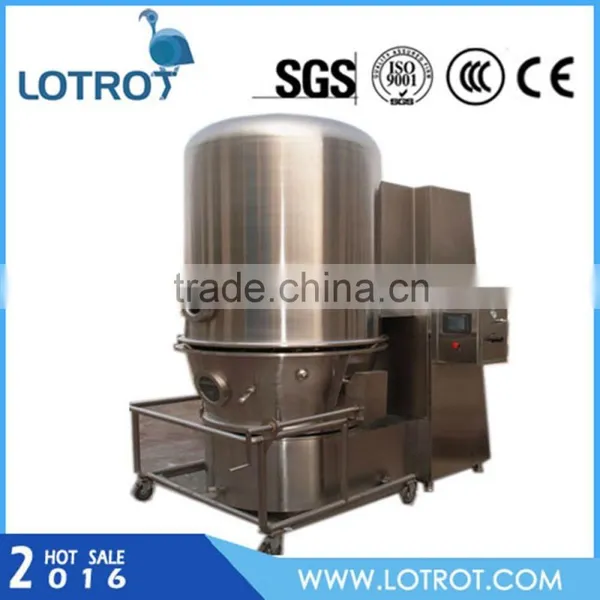

GFG High Effective Fluidized Bed Drier

Name: GFG High Effective Fluidized Bed Drier
Brand: LOTROT
SKU: 107009643
Availability: InStock

GFG High Effective Fluidized Bed Drier thumbnail-1

GFG High Effective Fluidized Bed Drier thumbnail-2

GFG High Effective Fluidized Bed Drier thumbnail-3

GFG High Effective Fluidized Bed Drier thumbnail-4

GFG High Effective Fluidized Bed Drier thumbnail-5

GFG High Effective Fluidized Bed Drier thumbnail-6

GFG High Effective Fluidized Bed Drier photo-1

GFG High Effective Fluidized Bed Drier photo-2

GFG High Effective Fluidized Bed Drier photo-3

GFG High Effective Fluidized Bed Drier photo-4

GFG High Effective Fluidized Bed Drier photo-5

GFG High Effective Fluidized Bed Drier photo-6

US$ 30000.00 - 100000.00 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Fluid Bed Drying Equipment

Place of Origin:

Jiangsu, China

Contact Supplier Request Quote Chat Now

Jiangyin Lotrot International Commerce Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI for High Effective Fluidized Bed Drier

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Fluid Bed Drying Equipment

Place of Origin Jiangsu, China

Brand Name LOTROT

Model Number GFG

Voltage 380V

Power(W) Depends on the model

Dimension(L*W*H) Depends on the model

Weight Depends on the model

Certification CE ISO

Warranty 1 Year, 1 year

After-sales Service Provided Engineers available to service machinery overseas

Quick Details of GFG High-Efficiency Fluidizing Drier
Brand Name						Lotrot
Model Number						GFG
Type						Drying equipment
Power						Depends on the model
Dimension(LWH)						Depends on the model
General Description of GFG High-Efficiency Fluidizing Drier
The Boiling Drying is formed when a quantity of a solid particulate substance (usually present in a product container) is placed under appropriate conditions to cause the solid / binding agent mixture to behave as a fluid. This is usually achieved by the introduction of pressurized fluid through the particulate medium. These results in the product move up and down and disperse into the air between the filter bag housing and the product container. The resulting phenomenon is called fluidization. Fluidized beds are used for several purposes, such as simple Dryers, Granulation, coating etc.
Work Principle of GFG High-Efficiency Fluidizing Drier
Purified and heated air is immited from the bottom by fan and passed through the screen plate of hopper. In the studio,the materials would form fluidization through string and negative pressure, the water would be evaporated and then exhausted away quickly,so the material would be quickly drying .
Features of GFG High-Efficiency Fluidizing Drier
1,With the circular structure, it could avoid the problem of dead angle effectively; 2,Designing an agitator in the hopper ,which could prevent the reunion of moist materials and channeling in the drying process; 3,Adopting reversing unload design, it become conveniently, rapidly and completely,or designing row by row on request. 4,Drying fastly, temperature uniformity,In general, the drying time for each batch is about 20 ~ 30 minutes; 5,Enclosed the negative pressure operation,which is conform to the requirement of GMP.
Specification of GFG High-Efficiency Fluidizing Drier
	Item			Specification
	Capacity		Kg	60	100		120	150	200	300	500	1000
	Fan	Air Volume	M³/h	2361	3488		4000	4901	6032	7800	10800	15000
		Air Pressure	mmH₂O	594	533		533	679	787	950	950	1200
		Power	Kw	7.5	11		15	18.5	22	30	45	75
	Stirring Power		Kw	0.55	0.55		0.55	0.55	0.75	1.5	1.5	2.2
	Stirring Speed		rpm	11
	Steam Consumption		Kg/h	141	170		170	240	282	366	451	800
	Operation Time		min	15~30(depend on material)
	Height of Main Machine		mm	2700	2900		2900	2900	3300	3800	4200	5800
Application of GFG High-Efficiency Fluidizing Drier
1,Drying the powder, granular, sheet, column, and cake-like material, general size of 50 (300 mesh), 6000 (3 mesh) micron. 2,It is applied to screw extruder particles, rock particles, and high-speed mixing granulation particles. 3,Drying the materials with strict requirements of final water content and dry temperature ♦Inorganic: Sodium perchlorate, persulfate, sodium perforate, basic nickel carbonate. ♦Organic: Aminoguanidine bicarbonate, 1-chloroanthraquinone, tartaric acid, sodium tartaric, potassium tartrate, o-chlorobenzoic, thiadiazole. ♦Medicine: SD (sulfadiazine), sulfathiazole, clarithromycin, L-tryptophan, tetracycline, sulfadoxine. ♦Food and feed additives: Acesulfame potassium, feed Aureomycin, potassium sorbate, betaine. ♦Dyes: Red base, cationic golden yellow x-GL, cationic red x-G RL, action blue x-G RRL. ♦Pesticides: Chlorpyrifos, glyphosate, phosethyl-Al, tebuconazole, acephate. ♦Chemical Agents: Ferrocene, casein.
Company Information
Jiangyin Lotrot Commerce Co., LTD is the subsidiary company of Jiangyin Hengtai Drying Equipment Co., LTD,which is specialized in producing drying equipment. The major products is including mechanical equipment(boiling drying, fluid bed dryer, drying oven, wet scrubber,etc),chemical products ,labor protection products,etc. The mechanical equipment is sold out to France,Turkey,Japan,Uzbekistan,etc.And it is favored by customers domestic and overseas.
Factory Advantage
Manufacturer Over 15 years dryer manufacturers Strict quality control free trial Fast Delivery Professional after-sale service OEM& ODM accept
Project Case

Our Customer

Packing and Shipping of GFG High-Efficiency Fluidizing Drier
Packaging Details:wooden case Delivery Detail: 30-60 days
LOROT Support
Besides domestic market,our products has been exported to Russia,France,Japan,Turkey,Uzbekistan,etc. We insist on the quality of products is our life" all the time,and guarantee the quality of goods strictly and offer the best service to our customers. Pre-sale Service: 1,Selection of Equipment Model; 2,According to customer's requirement,providing schematic design and structure chart; 3,FreeTrial of customer's sample ,and providing installtion drawing and structure chart after satisfying with the result of sample testing; 4,Designing and Manufacturing the equipment for customer based on customer's requirement. After-sale Service: 1,1 year warranty ; 2,Life-long service after sale; 3,Staff Training 4,Technical Assistance of our technical engineer.
