High Quality Centrifugal Spray Dryer for Powder Egg

High Quality Centrifugal Spray Dryer for Powder Egg thumbnail-1
High Quality Centrifugal Spray Dryer for Powder Egg thumbnail-2
High Quality Centrifugal Spray Dryer for Powder Egg thumbnail-3
High Quality Centrifugal Spray Dryer for Powder Egg thumbnail-4
High Quality Centrifugal Spray Dryer for Powder Egg thumbnail-5
High Quality Centrifugal Spray Dryer for Powder Egg thumbnail-6
High Quality Centrifugal Spray Dryer for Powder Egg photo-1
High Quality Centrifugal Spray Dryer for Powder Egg photo-2
High Quality Centrifugal Spray Dryer for Powder Egg photo-3
High Quality Centrifugal Spray Dryer for Powder Egg photo-4
High Quality Centrifugal Spray Dryer for Powder Egg photo-5
High Quality Centrifugal Spray Dryer for Powder Egg photo-6
US$ 5000.00 - 40000.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Spray Drying Equipment, LPG
Place of Origin:
Jiangsu, China
Contact Supplier Request Quote Chat Now
Jiangyin Lotrot International Commerce Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI for High Quality Centrifugal Spray Dryer for Powder Egg
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Spray Drying Equipment, LPG
Place of Origin Jiangsu, China
Brand Name LOTROT
Model Number LPG
Voltage 380V, 380V
Power(W) 9~100KW
Dimension(L*W*H) Depends on the model
Weight Depends on the model
Certification CE ISO
Warranty 1 Year, Within 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Quick Details of  High Quality Centrifugal Spray Dryer for Powder Egg

Brand Name

Lotrot

Model Number

LPG

Electric-heating Power

9~100KW

Weight

Depends on the model

General Description of  High Quality Centrifugal Spray Dryer for Powder Egg

Centrifugal spray dryer is a special equipment,which is suitable for producing powder, particle or solid block products from raw materials of solution, emulsion, suspension and plastic paste liquid.
Spray drying is an ideal process when the finished particle size distribution, residual moisture content, bulk density and particle shape must conform to precise standards.

Work Principle of High Quality Centrifugal Spray Dryer for Powder Egg

The air would be into the top of the air distributor of the dryer after filtering and heating,and then the hot air spirals into the drying chamber evenly.
The feed liquid would be sprayed into the extremely fine mist liquid beads when it passes through the top of the tower high-speed centrifugal atomizer (rotary),and then dried into a finished product after contacting with the hot air flow in a very short period of time.
The finished product would be sent out from the bottom of the drying tower, and the cyclone separator,waste gas is evacuated by the fan.

Features of  High Quality Centrifugal Spray Dryer for Powder Egg

1,Fast-drying, greatly increasing the surface area of feed liquid after atomization. In the hot airflow,95% -98% moisture would be evaporated instantly, the drying time is only several seconds , it is particularly suitable for drying heat sensitive materials;
2,The products are in good uniformity, high fluidity, solubility, purity and good quality;
3,The production process is simple,easy to operate and control,40-60% moisture content  ( special materials, up to 90%) of the liquid could be dried into a powder product one time, and dried without crushing and screening, it reduces the production processes, and improves purity of the product .The particle size, bulk density and moisture of product could be adjusted within certain scope by changing the operating conditions,it is convenient for controlling and managing.

Specification of  High Quality Centrifugal Spray Dryer for Powder Egg

Type

LPG

5

25

50

100

150

200-3000

Inlet temperature

≤ 350°C

Outlet temperature

80-90°C

Water Evaporate Capacity (kg/h)

5

25

50

100

150

200-3000

Driving type

compressed air drive

mechanical drive

Rotate Speed

25000

22000

21500

18000

18000

15000

Diameter of Spray Disk (mm)

50

120

120

120

150

180-340

Heating source

electricity

electricity

electricity +steam+fuel oil+coal gas

electricity +steam

electricity +steam+fuel oil+coal gas

To be solved by users

Electric-heating Power (KW)

9

45

60

81

99



Dried powder Recovery (%)

≥ 95

≥ 95

≥ 95

≥ 95

≥ 95

≥ 95

Installation Size

A/

mm

1000

1290

1730

2500

2800

According to practical needs

B/

mm

2100

3410

4245

5300

6000

C/mm

2300

4260

4645

6000

6700

φ D/mm

1060

1800

2133

2560

2860

E1/mm

1050

1200

1640

2100

2180

E2/mm

1050

1200

1640

2100

2180

F/mm

750

1000

1250

1750

1970

G/mm

530

1700

1750

1930

2080

H/mm

530

1300

1800

2600

3050

I/mm

530

1550

1600

1780

1960


 Application of  High Quality Centrifugal Spray Dryer for Powder Egg

1,Chemical industry:Sodium fluoride (potassium), basic dye pigment, dye intermediate, compound fertilizer, Formaldehyde silicate, catalyst, sulphuric acid agent, amino acid, Silicon Dioxide, etc;
2,Plastic Resin:
 AB, ABS emulsion, uric acid resin, phenolic aldehyde resin, urea-formaldehyde resin, formaldehyde resin, polythene, polyvinyl chloride and etc;
3,Food Industry
Copy milk, casein, cocoa  powder, Milk replacer, porcine blood powder, albumen (egg yolk), etc.
4,Sugar: corn syrup, corn starch, glucose, pectin, malt sugar, potassium sorbate,etc;
5,Ceramics: aluminium oxide, ceramic tile material, magnesium oxide, talcum powder,etc

Company Information

Jiangyin Lotrot Commerce Co., LTD is the subsidiary company of Jiangyin Hengtai Drying Equipment Co., LTD,which is specialized in producing drying equipment.
 The major products is including mechanical equipment(boiling drying, fluid bed dryer, drying oven, wet scrubber,etc),chemical products ,labor protection products,etc. The mechanical equipment is sold out to France,Turkey,Japan,Uzbekistan,etc.And it is favored by customers domestic and overseas.

High Quality Centrifugal Spray Dryer for Powder Egg

Factory Advantage

Manufacturer
Over 15 years dryer manufacturers
Strict quality control
free trial
Fast Delivery
Professional after-sale service
OEM& ODM accept

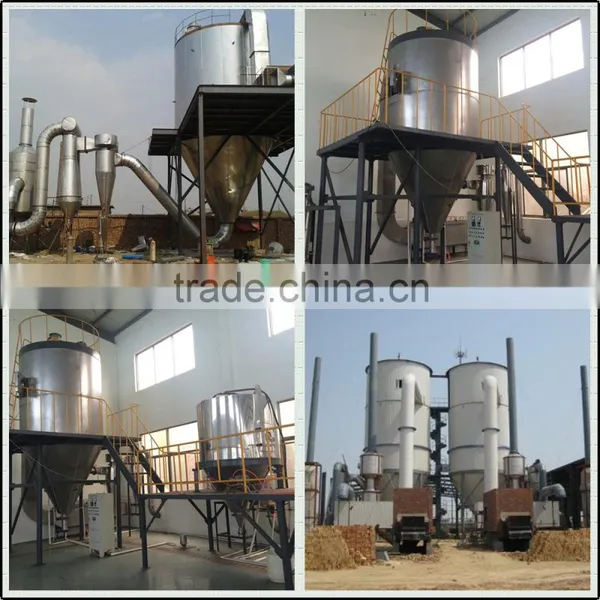

Project Case

 High Quality Centrifugal Spray Dryer for Powder Egg

Our Customer

 High Quality Centrifugal Spray Dryer for Powder Egg

Packing and Shipping of High Quality Centrifugal Spray Dryer for Powder Egg

Packaging Details:wooden case
Delivery Detail: 30-60 days

LOROT Support

Besides domestic market,our products has been exported to Russia,France,Japan,Turkey,Uzbekistan,etc.
We insist on "the quality of products is our life" all the time,and guarantee the quality of goods strictly and offer the best service to our customers.
Pre-sale Service:
1,Selection of Equipment Model;
2,According to customer's requirement,providing schematic design and structure chart;
3,FreeTrial of customer's sample ,and providing installtion drawing and structure chart after satisfying with the result of sample testing;
4,Designing and Manufacturing the equipment for customer based on customer's requirement.
After-sale Service:
1,1 year warranty ;
2,Life-long service after sale;
3,Staff Training
4,Technical Assistance of our technical engineer.
