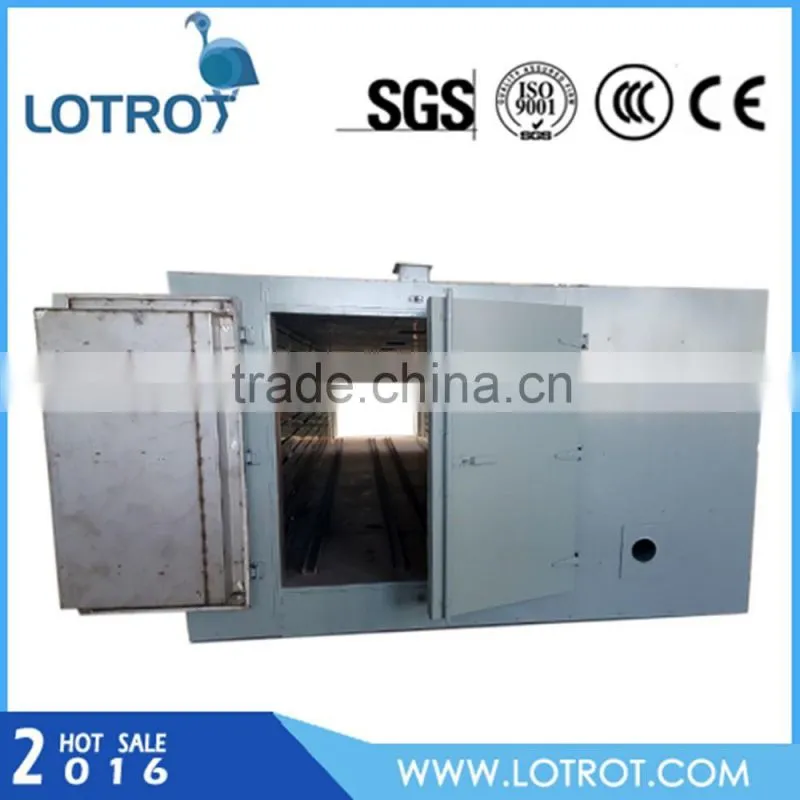

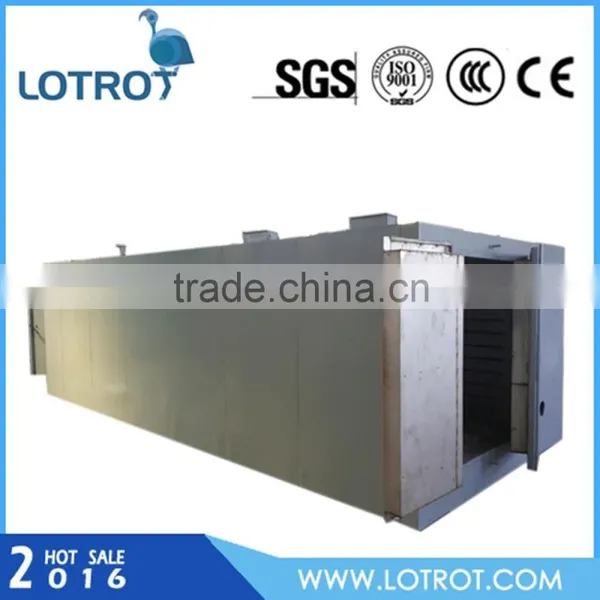

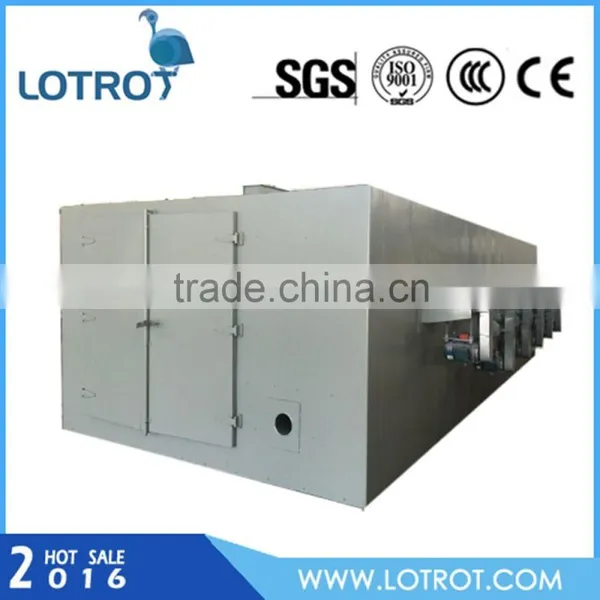

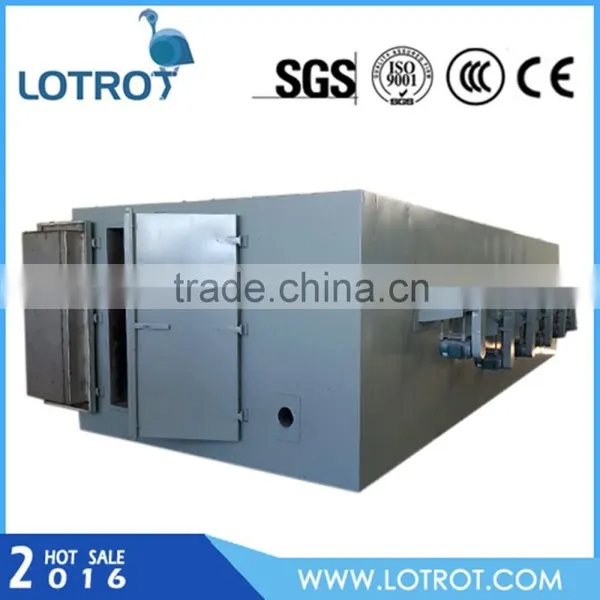

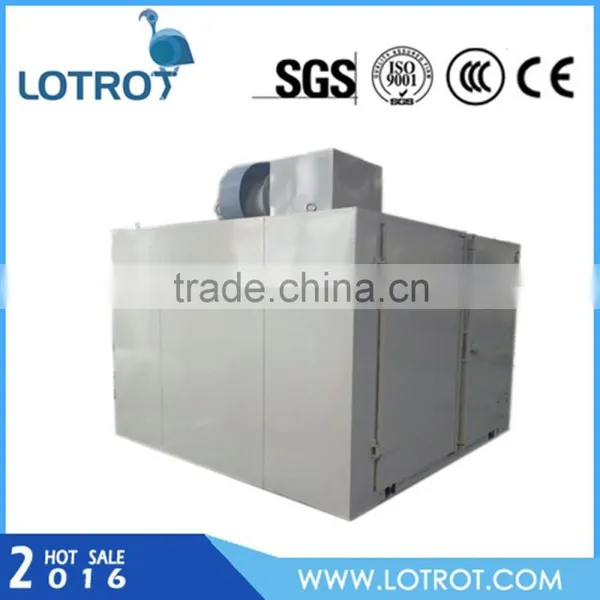

Commercial Bread Electric Drying Oven

Commercial Bread Electric Drying Oven thumbnail-1
Commercial Bread Electric Drying Oven thumbnail-2
Commercial Bread Electric Drying Oven thumbnail-3
Commercial Bread Electric Drying Oven thumbnail-4
Commercial Bread Electric Drying Oven thumbnail-5
Commercial Bread Electric Drying Oven thumbnail-6
Commercial Bread Electric Drying Oven photo-1
Commercial Bread Electric Drying Oven photo-2
Commercial Bread Electric Drying Oven photo-3
Commercial Bread Electric Drying Oven photo-4
Commercial Bread Electric Drying Oven photo-5
Commercial Bread Electric Drying Oven photo-6
US$ 5000.00 - 15000.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
LOTROT
Contact Supplier Request Quote Chat Now
Jiangyin Lotrot International Commerce Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI for Commercial Bread Electric Drying Oven
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name LOTROT
Model Number CT-C
Type Dryer
Voltage 220V - 450V
Power(W) 1.1kw
Weight Depends on the Model
Dimension(L*W*H) 2430*1200*2375
Certification ISO 9001,CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Quick Details of  Commercial Bread Electric Drying Oven

Brand Name

Lotrot

Model Number

CT-C

Type

Drying equipment

Power

Depends on the Model

Dimension(L*W*H)

2430×1200×2375

General Description of  Commercial Bread Electric Drying Oven

CT-C Series Hot Air Circulating Drying Oven adopts noise elimination and thermal stable axial flow fan and automatic temperature control system. The entire circulation system is enclosed to make that the heat efficiency of the drying oven increases from 3~7% of the traditional drying oven to 35~45% of the present one. The highest heat efficiency can be up to 50%.

Commercial Bread Electric Drying Oven

Features of Commercial Bread Electric Drying Oven

1,Most of the hot air is cycled in the oven, high thermal efficiency,and saving the energy;
2,Using enhanced ventilation and adjustable air separating boards,it could be dried uniformly;
3,The heating source could be steam,hot water,electricity or far infared,etc;
4,Wide application, various material could be dried.

Specification of  Commercial Bread Electric Drying Oven

Industry Standard Model

Type

Drying capacity for each time (Kg)

Power (KW)

Steam Consumption (Kg/h)

Heat Radiation Area

(m 2 )

Air Capacity

(m 3 /h)

Upper and Lower Temperature ( °C)

Drying Plate Equipped (PC)

Overall Dimension (LxWxH) mm



Drying Shelf Equipped(Set)



RXH-14-B

CT-I

100

1.1

20

20

3400

±2

48

2430×1200×2375

2




RXH-27-B

CT-II

200

1.1

40

40

5200

±2

96

2430×2200×2433

4




RXH-41-B

CT-III

300

2.2

60

80

9800

±2

144

3430×2200×2620

6




RXH-54-B

CT-IV

400

2.2

80

100

9800

±2

192

4380×2200×2620

8




RXH-5-C

CT-C-0

25

0.45

5

5

3400

±2

16

1550×1000×2044

0




RXH-14-C

CT-C-IA

50

0.45

10

10

3450

±2

24

1400×1200×2000

1




RXH-14-C

CT-C-I

100

0.45

18

20

3450

±2

48

2300×1200×2000

2




RXH-27-C

CT-C-II

200

0.9

36

40

6900

±2

96

2300×2200×2000

4




RXH-41-C

CT-C-III

300

1.35

54

80

10350

±2

144

2300×2200×2000

6




RXH-54-C

CT-C-IV

400

1.8

72

100

13800

±2

192

4460×2200×2290

8




RXH-18-C

CT-C-IB

120

0.9

20

25

6900

±1

48

1460×2160×2250

2




RXH-41-C

CT-C-IS

Special baking bottle

2.2

60

100

6900

±2



1140×6160×3240

6




RXH-25-A

High efficiency and high temperature far infrared bacterium reducing baking oven

1200×1000×1600

4




Company Information

Jiangyin Lotrot Commerce Co., LTD is the subsidiary company of Jiangyin Hengtai Drying Equipment Co., LTD,which is specialized in producing drying equipment.
 The major products is including mechanical equipment(boiling drying, fluid bed dryer, drying oven, wet scrubber,etc),chemical products ,labor protection products,etc. The mechanical equipment is sold out to France,Turkey,Japan,Uzbekistan,etc.And it is favored by customers domestic and overseas.


Commercial Bread Electric Drying Oven

Factory Advantage

Manufacturer
Over 15 years dryer manufacturers
Strict quality control
free trial
Fast Delivery
Professional after-sale service
OEM& ODM accept

Project Case

 Commercial Bread Electric Drying Oven

Our Customer

 Commercial Bread Electric Drying Oven

Packing and Shipping of Commercial Bread Electric Drying Oven

Packaging Details:wooden case
Delivery Detail: 30-60 days

LOROT Support

Besides domestic market,our products has been exported to Russia,France,Japan,Turkey,Uzbekistan,etc.
We insist on "the quality of products is our life" all the time,and guarantee the quality of goods strictly and offer the best service to our customers.
Pre-sale Service:
1,Selection of Equipment Model;
2,According to customer's requirement,providing schematic design and structure chart;
3,Free Trial of customer's sample ,and providing installation drawing and structure chart after satisfying with the result of sample testing;
4,Designing and Manufacturing the equipment for customer based on customer's requirement.
After-sale Service:
1,1 year warranty ;
2,Life-long service after sale;
3,Staff Training
4,Technical Assistance of our technical engineer.
