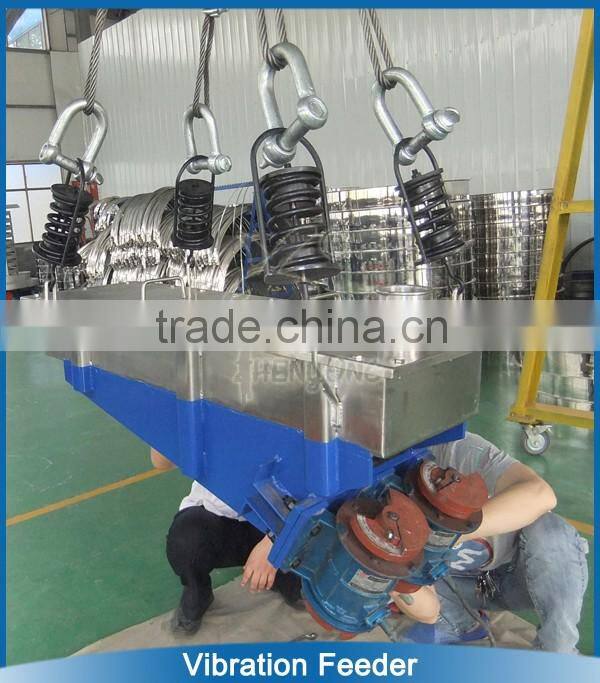

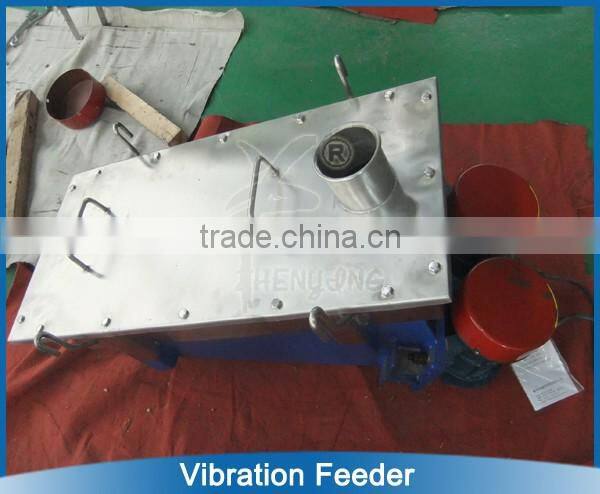

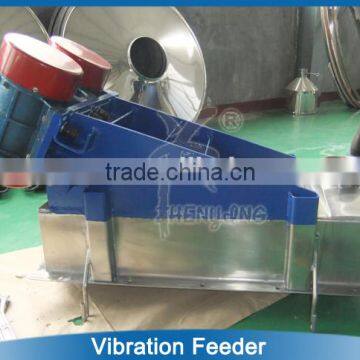

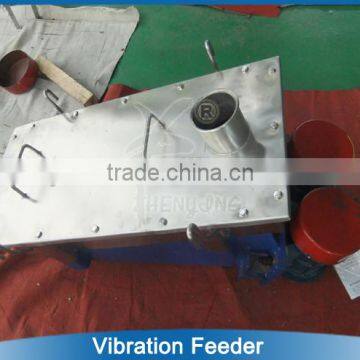

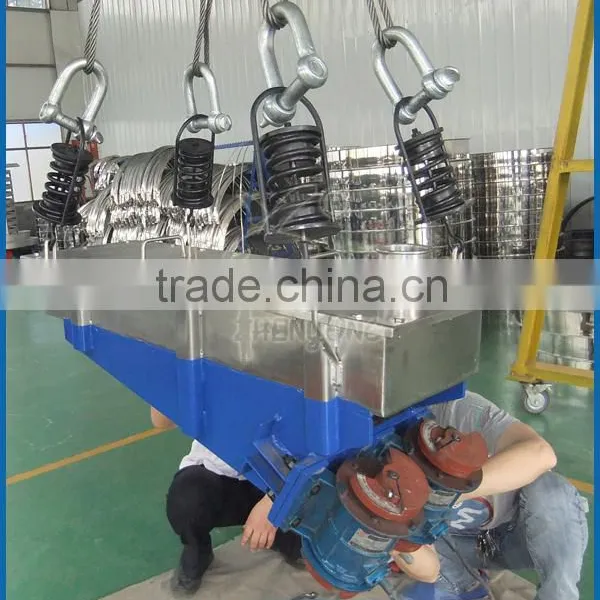

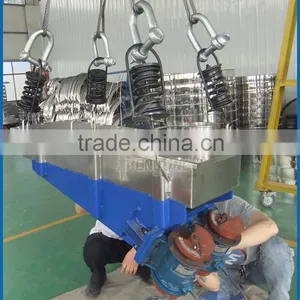

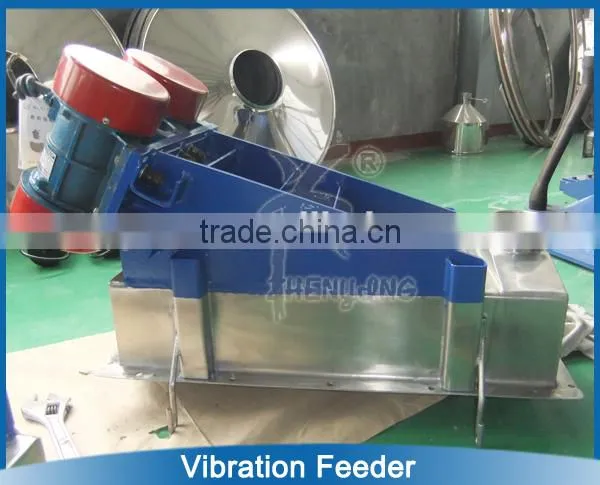

High quality GL Motor Vibrating Feeder
Description
GL Motor Vibrating Feeder is widely used in mining, metallurgy, coal, building materials, light industry,
electric power, chemicals, grain and other departments, which is be used to convey the massive, granule
and powder materials from the warehouse or hopper into the accepting device evenly and continuously
or quantificationally.
Details
Technical parameters
Model |
Feeding granularity |
Quantity |
Motor |
Voltage |
Power |
Vibration |
Double- amplitude |
Exciting |
Weight |
GL-25 |
<50 |
25 |
YZO-5-4 |
380 |
0.4×2 |
25 |
2mm-3mm |
5×2 |
174 |
GL-60 |
<70 |
60 |
YZO-8-4 |
380 |
0.75×2 |
25 |
2mm-4mm |
8×2 |
242 |
GL-80 |
<80 |
80 |
YZO-8-4 |
380 |
0.75×2 |
25 |
2mm-4mm |
8×2 |
256 |
GL-100 |
<100 |
100 |
YZO-10-4 |
380 |
1.0×2 |
16 |
2mm-5mm |
10×2 |
321 |
GL-200 |
<150 |
200 |
YZO-17-4 |
380 |
0.75×2 |
25 |
2mm-5mm |
16×2 |
372 |
GL-300 |
<150 |
300 |
YZO-17-4 |
380 |
0.75×2 |
25 |
3mm-6mm |
16×2 |
556 |
GL-400 |
<180 |
400 |
YZO-20-6 |
380 |
2.0×2 |
16 |
3mm-5mm |
20×2 |
606 |
GL-500 |
<500 |
500 |
YZO-30-4 |
380 |
2.5×2 |
25 |
3mm-5mm |
30×2 |
886 |
Feature
1. Small size, light weight, simple structure, easy installation, low maintenance and low cost.
2. Universal type is open type, if no special requirements as a feeder to use.
3. Sealed-type is applied to feeding under the situation full of dust.
4. Tube-type is applied for the fragile particles, more pollution and fragile materials.
Application
Special design can tell us (like "made in China " sprayed on the case)
1.Installation,Debugging.
Provide installation files, technical data and related soft copies or videos etc to ensure customer
could install and debug by themselves.
2.warranty
The provider guarantee the vibrating screen could meet production technical standard and
performancer equirements indicated in the contract, 24 months for the machine after
delivery ,12 months for the motor after delivery.
3.Technical Support
Our company will make occasional call to find problems and solve them in time.Provide
technical support timely.
4.Response Time(24 hours)
Contact us through Telephone or Email, we will respond within 24 hours.
Certification
Please provide the following information to help us recommend a right machine for you:
1.material to be processed?
2.using purposes:to grade or to remove dusts?
3.granule size of material? Or mesh number?
4.moisture content if any?
5.granule size proportion if possible to get?
6.capacity(tons or kg or litter per hour or day)?
local power supply(voltage and frequency)?
