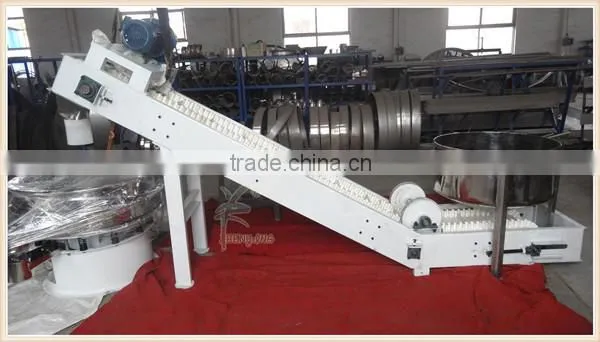

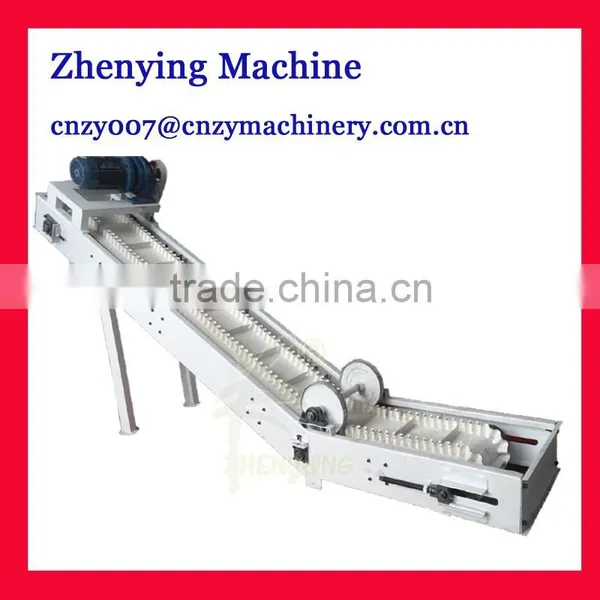

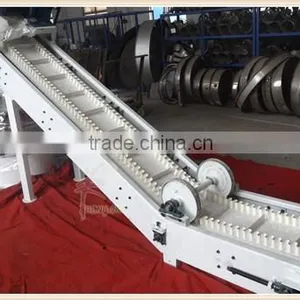

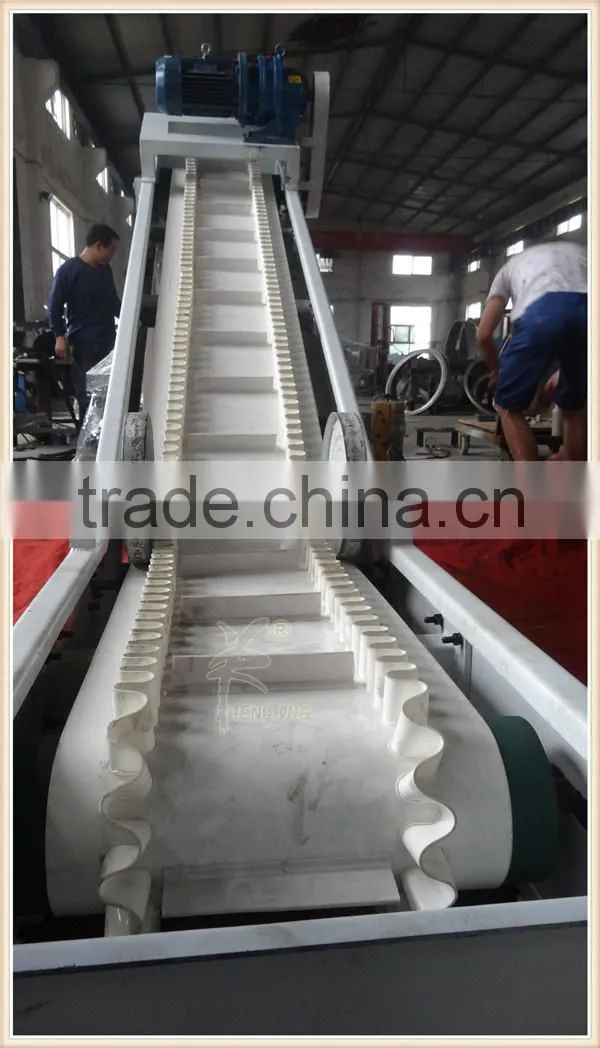

Zhenying high inclination angle belt conveyor for flour
Working Principle
The belt conveyor machine is mainly composed of rack, conveying belt, belt roller, tension device and driving device. The rack is connected with excellent steel plate, and there are belt roller and carrier roller for driving and supporting the conveying belt, and there are two driving methods: reduction motor drive and motorized pulley drive.
Feature
1.Large capacity and Width;
2.High speed;
3.Standard parts, reliable running;
4.ISO and CE .
Application
Belt conveyor system for conveying bulk density of less than 1.67 / t / cubic meter, easy to dig a powder,granular, small block of low-abrasive materials and bags of materials, such as coal, gravel, sand, cement,fertilizer, and grain. Sent material temperature is less than 60 °C. The form of their captain and assembly can be determined according to user requirements, transmission can be electric drum can also be used with a drive rack drive.
Technical Parameter
Effective conveying length(m) |
10 |
15 |
Conveyor width(mm) |
500-800 |
500-800 |
Conveyor speed(m/s) |
0.8~1.6 |
0.8~1.6 |
Conveying capacity(V=1.0m/s)(m³/h) |
70~278 |
70~278 |
Rack adjustment angle(°) |
9~20 |
9~20 |
Conveying max height(mm) |
3910 |
5700 |
Conveying min height(mm) |
2000 |
2700 |
Taut route(mm) |
300 |
300 |
Motor power(kw) |
2.2~5.5 |
2.2~5.5 |
Transmission reduction ratio |
16.6 |
16.6 |
Steel cable¢12-6×19(m) |
17 |
26 |
Belt 4(3+1.5)(m) |
22 |
31.8 |
Details of high inclination angle belt conveyor for flour

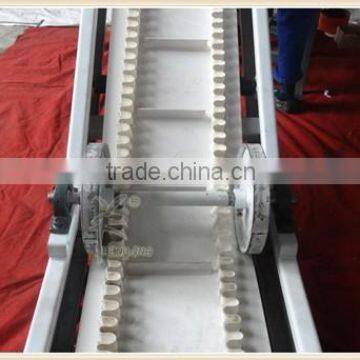

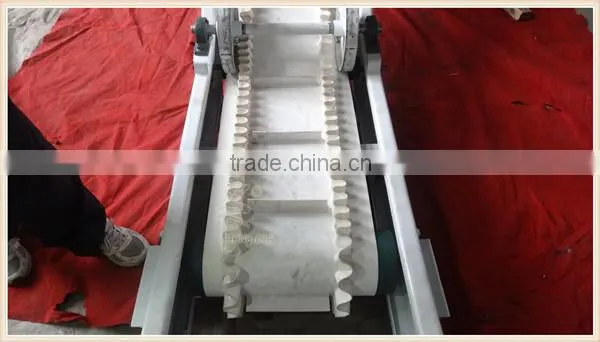

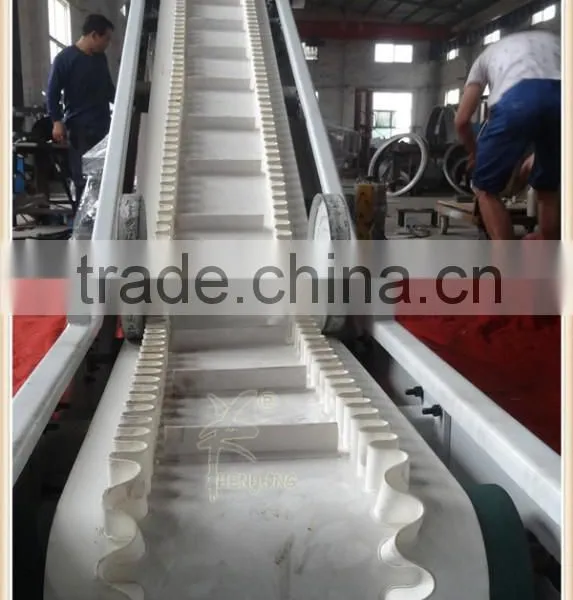

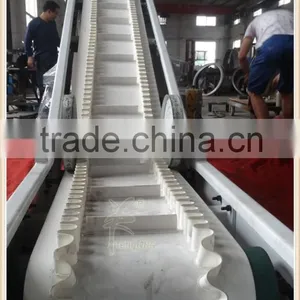

High quality belt(the belt can design depends on material)

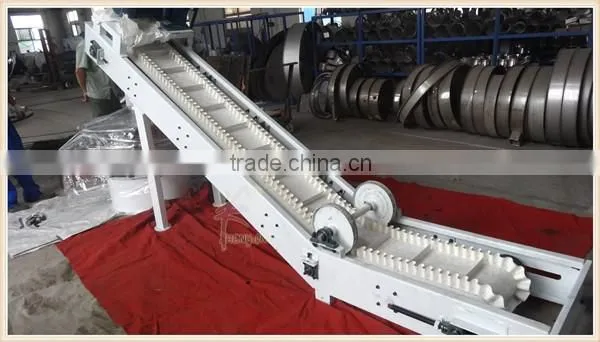

Fixed gear to keep belt from passing line deflection

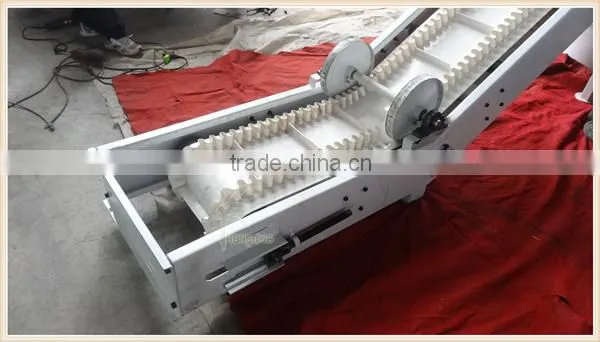

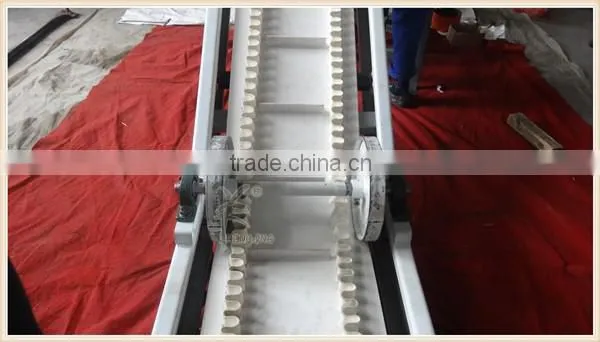

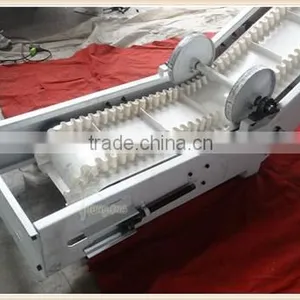

Belt-locking device for keeping belt stretch taut
High inclination angle belt conveyor for flour with hopper

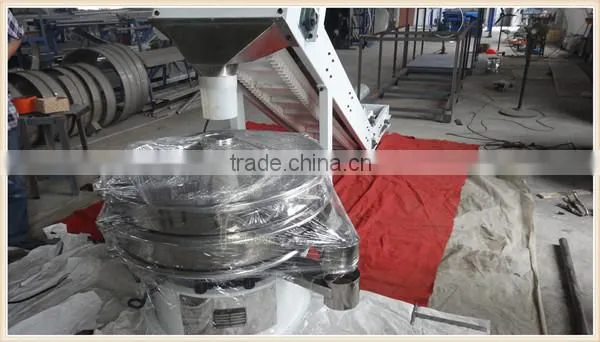

High inclination angle belt conveyor for flour with vibrating screen
20 working days after geting the prepayment
shipping
Standard export package of fumigation-free wooden case for bucket elevator for sale, container or according to your requirement.
If you have any special needs please tell us (like "made in China" sprayed on the case)
1.Pre-sale services:
1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.
2.Services provided during the sale:
Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients.
3. After-sale services:
Improve the added value of our products, and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipments;
3) Training the first-line operators on site;
Zhenying machine
Zhenying machine,Xinxiang is the professional machinery manufacturer specially in sieving,conveying,crushing and feeding equipment.
High quality product and service,hard-woking and cooperative spirits accelerate the growth of Zhenying.
With ISO9001:2008,CE Certificate,AAA credit company and many other
government credits, our products are your best choice.
Zhenying means flying eagle in Chinese,hope we can fly far away in the sky of world machinery sky.
Welcome to contact me!
