ZY China Hanging Tube Chain Conveyor for Fine Powder

Name: ZY China Hanging Tube Chain Conveyor for Fine Powder
Brand: Zhenying Tube Chain Conveyor
SKU: 106995645
Availability: InStock

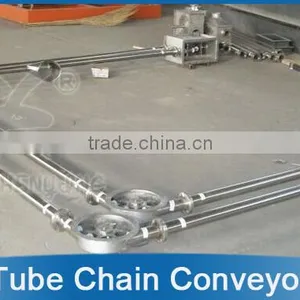

ZY China Hanging Tube Chain Conveyor for Fine Powder thumbnail-1

ZY China Hanging Tube Chain Conveyor for Fine Powder photo-1

US$ 850 - 2,200 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Slat Conveyor

Material:

Rubber

Contact Supplier Request Quote Chat Now

Xinxiang Zhenying Mechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin or Qingdao Shanghai or others

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Slat Conveyor

Material Rubber

Material Feature Heat Resistant

Structure Belt Conveyor

Load Capacity 100KG-800KG

Place of Origin Henan, China

Brand Name Zhenying Tube Chain Conveyor

Model Number ZY 69 Tube Chain Conveyor

Voltage 220V/380V/415V or others, 110v,220v or optional

Power(W) 0.4kW - 22kW

Dimension(L*W*H) Specific Models

Certification ISO9001-2008 &CE

After-sales Service Provided Engineers available to service machinery overseas

ZY China Hanging Tube Chain Conveyor for Fine Powder

Description

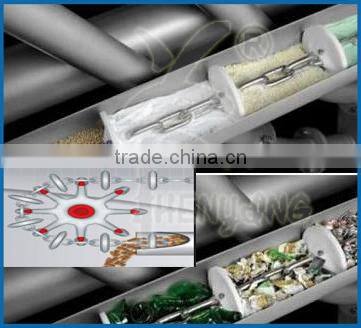

Tube chain conveyor is mechanically driven conveyors that 'drag' material in the tube.
They are designed to transfer powder, small particles materialor flowable bulk

materials from infeed points to discharge points through a totally enclosed conduit.

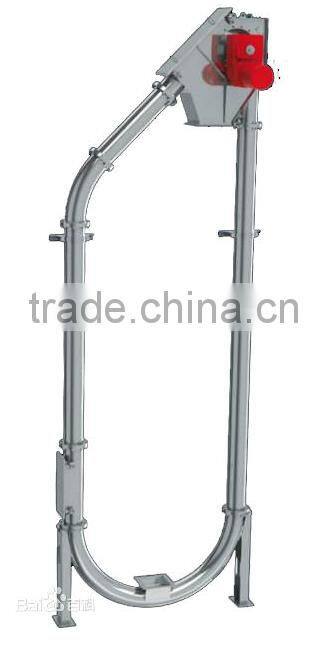

Tube chain conveyor can horizontal and inclined transport material.
It has rectangular shell, totally enclosed conveying, especially suitable for installed

outdoors, and on or under the storage silo.

For transporting toxic, explosive, high temperature and raise dust material,

improve the conditions of workers environment and reduce environmental pollution and has a

unique advantage.

Technical Parameters

Model	Tube diameter(mm)	Plate distance(mm)	Chain speed(m/s)	Capacity(m³/h)
GL-90	90	90	0.4	4.5
GL-114	114	100	0.4	6
GL-120	120	110	0.4	8
GL-133	133	110	0.4	11
GL-140	140	110	0.4	13

Features

1.Operates at any angle without any loss of capacity.

2.Dust free sealed systems for ultrafine powders.

3.Almost all materials can be conveyed - ideal for food products and chemicals

in powdered or granular form.

4.Low power consumption.

5.Material finishes - epoxy painted or stainless steel.

6.Removable housing cover with optional interlock for easy cleaning.

Contruction:

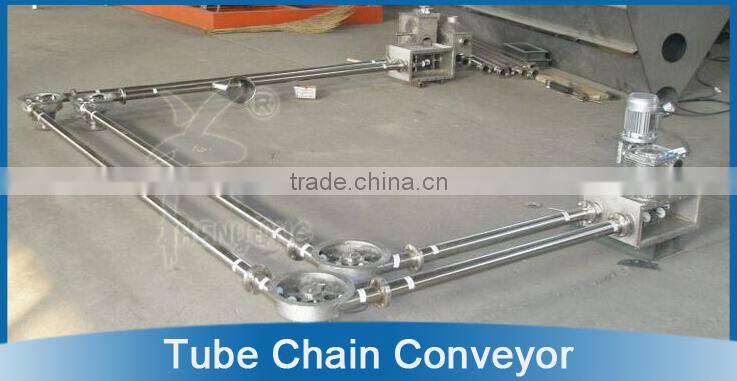

Tube Chain Conveyor for conveying feedstuff is that steel cord pipe style conveyor consists of feeding apparatus,driving apparatus and exit apparatus(see the below picture).
By power machinery,the conveyor can reach the purpose of conveying dry powder and particles and is a kind of pipe conveyor.when conveying materials,all the conveying parts participate working.

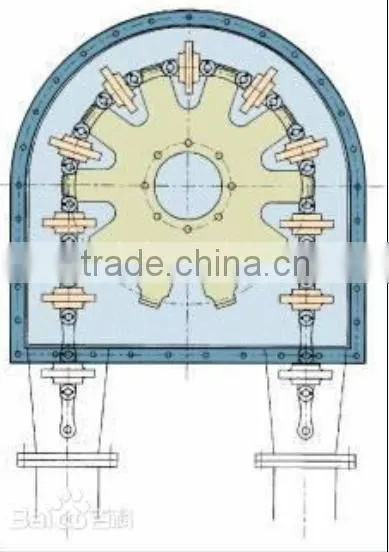

The key is driving system.In the system,the round disc is made of polyurethane, having features of high strength, good wear resistance, heat resistance and maintenance ,low cost. Die-cast disc is made directly with wire rope as a whole to reduce the possibility of contaminated materials.
polypropylene / polyurethane material also can be used for the round disc.the wire rope can be in galvanized materials or 304 / T316 stainless steel material.
Traction device operating speed is about one-quarter of pneumatic conveying speeds, much higher than most other mechanical handling equipment.
The pressure sensor is mounted on the pipeline.
Under certain circumstances, the sensor sends information to control the conveyor to stop working.

Service

1.Installation,Debugging.
Provide installation files, technical data and related soft copies or video,

etc to ensure customer could install and debug by themselves.
2.warranty
The provider guarantee the vibrating screen could meet production

technical standard and performance requirements indicated in the contract,

warranty: 24 months for the machine after delivery ,12 months for the motor after delivery.

3.Technical Support
Our company will make occasional call to find problems and solve them in time.Provide technical support timely.
4.Response Time(24 hours)
Contact us through Telephone or Email, we will respond within 24 hours.
