DY Truck Loading Conveyor

DY Truck Loading Conveyor photo-1
US$ 1,612 - 6,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Slat Conveyor
Material:
Rubber
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Qingdao/Shanghai/optional
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Slat Conveyor
Material Rubber
Material Feature Other, Heat Resistant, Heat and cold resistant
Structure Belt Conveyor
Load Capacity 1-5 ton/hour
Place of Origin Henan, China
Brand Name Zhenying truck loading conveyor
Model Number DY truck loading conveyor
Voltage 220 v,380v or others
Power(W) 1.8 w truck loading conveyor
Dimension(L*W*H) different design,different sze
Certification CE & ISO& SGS&BV
After-sales Service Provided Engineers available to service machinery overseas

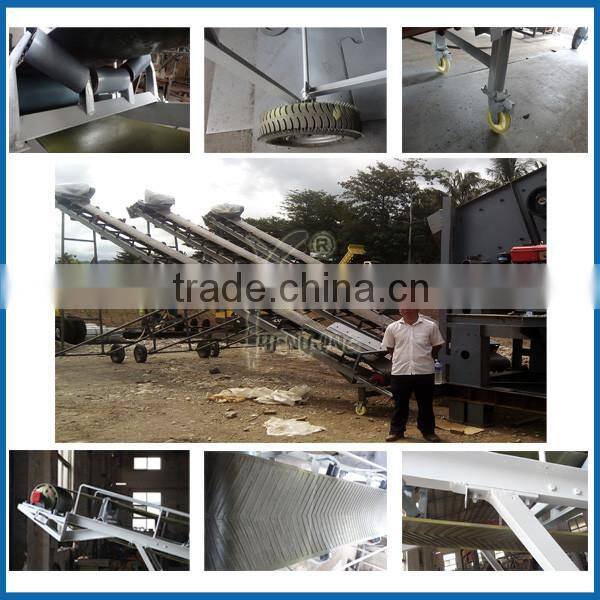

 DY truck loading conveyor from Zhenying machineryDY truck loading conveyor

DY truck loading conveyor





DY truck loading conveyor

DY simple convex belt conveyor is suitable for harbor, mine, grain, freight yard, warehouse and other departments, which is a kind of simple transitions, wide application, and high efficiency transportation equipment.



DY movable  simple convex belt conveyor is a kind of equipent mainly used for engineering project.


Mobile bulk conveyor belt  is easy to move, and mainly used for the occasion where the loading place is changeable easily,for eg.port, yard, coal spot, garage,
construsion sit and sandstone spot or agriculture spot.

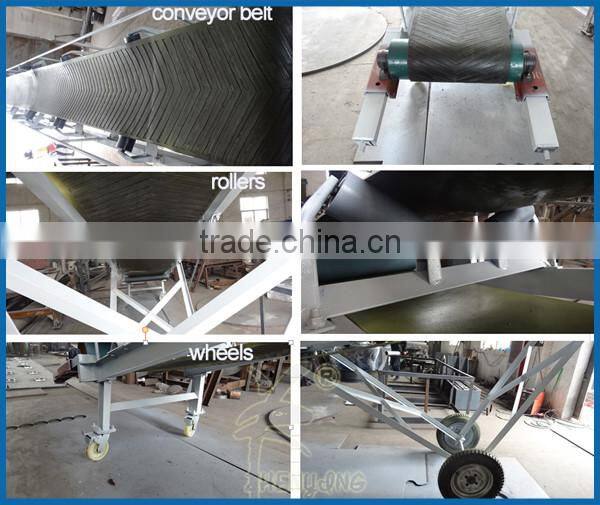

DY truck loading conveyor



DY truck loading conveyor





DY simple convex belt conveyor is usually used for short distance transporation and bulk materials as well as materials in article less than 100 KG.



There are two types fot the machine:1.able to be lifted up2.unable to be lifted up. There are two forms of wheel, one gas wheel, the other steel wheel.
The angle can be ajusted for the machine body over 10m.

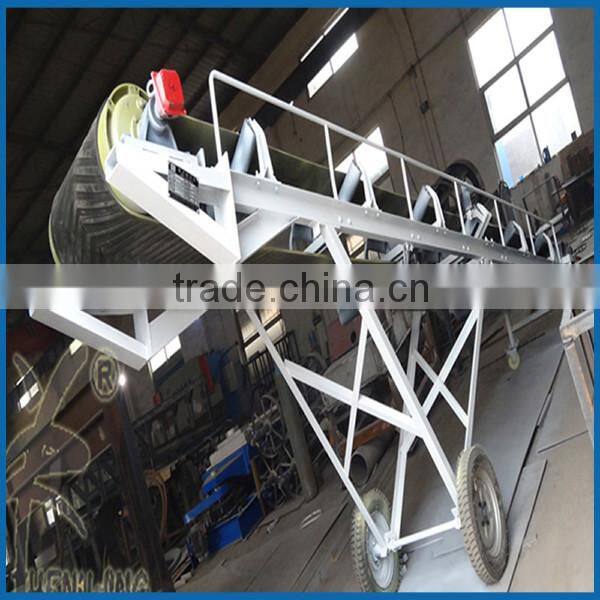

DY truck loading conveyor



conveying length

10m

15m

Conveyor width

500-800(mm)

0.6

Conveyor speed

0.8~1.6m/s

2000

Conveying capacity(V=1.0m/s)

70~278m³/h

321

Rack adjustment angle

9°~20°

9°~20°

Conveying max height

391mm

5700mm

Conveying min height

2000mm

2700mm

Taut route

300mm

300mm

Motor power

2.2kw-5.5kw

2.2kw-5.5kw

Transmission reduction ratio

16.6

16.6

Steel cable 12-6×19

17m

26m

Belt 4(3+1.5)

22m

31.8m



 DY truck loading conveyorDY truck loading conveyorDY truck loading conveyorDY truck loading conveyorDY truck loading conveyor



DY truck loading conveyor

DY truck loading conveyor
