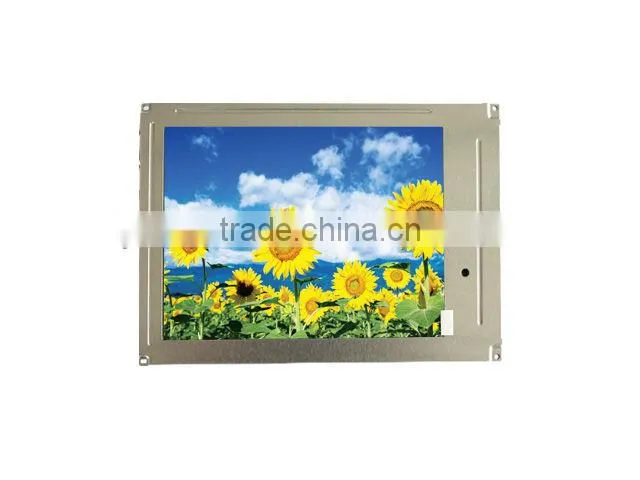

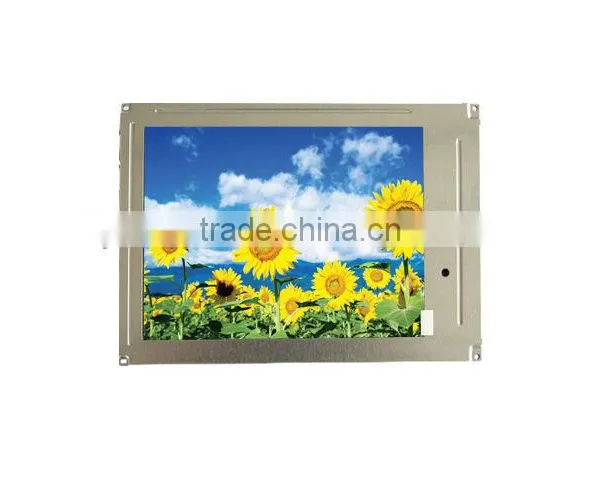

6.4'' TFT LCD Module HDMI/VGA

6.4'' TFT LCD Module HDMI/VGA thumbnail-1
6.4'' TFT LCD Module HDMI/VGA thumbnail-2
6.4'' TFT LCD Module HDMI/VGA thumbnail-3
6.4'' TFT LCD Module HDMI/VGA thumbnail-4
6.4'' TFT LCD Module HDMI/VGA thumbnail-5
6.4'' TFT LCD Module HDMI/VGA photo-1
6.4'' TFT LCD Module HDMI/VGA photo-2
6.4'' TFT LCD Module HDMI/VGA photo-3
6.4'' TFT LCD Module HDMI/VGA photo-4
6.4'' TFT LCD Module HDMI/VGA photo-5
US$ 100 - 200 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
E Ink
Model Number:
PD064VT4
Contact Supplier Request Quote Chat Now
Zhejiang Qiyang Intelligent Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name E Ink
Model Number PD064VT4
Screen Dimension 6.4''

Feature

1.Brand: E Ink
2. Product Model: PD064VT4
3. Panel Size: 6.4 inches
4.Resolution: 640x480
5. Display Scale: 4:3
6.Pixel Pitch: 0.2025x0.2030 mm
7. Brightness: 400 cd/m2
8. Contrast Ratio: 400:1(transmission)
9. Panel Type: a-Si TFT-LCD
9. Signal Interface: TTL(1 ch,6-bit)
10. Features: matt surface; white LED backlighting



6.4'TFT-LCD 6.4'' TFT LCD module HDMI/VGA

6.4'' TFT LCD module HDMI/VGA Structural Parameters

• Working Temperature:    -20°C ~ 70°C

• Storage Temperature:    -30°C ~ 80°C

• Panel Weight:    340g

• Surface Treatment:    matt surface

• Resolution:    640(RGB)x480(VGA)

• Aspect Ratio:    4:3

• Pixel Arrangement:    R.G.B

• Pixel Pitch:    0.2025x0.2030

• Display Area:    129.6x97.44 mm

• Visual Area:    134.8x101.8 mm

• Size:    175.4x126.9 mm

• Thickness:    12.5±0.5 mm

• Touch Screen:    NO


6.4'TFT-LCD 6.4'' TFT LCD module HDMI/VGA Optical Property


• Display Mode:    TN, Normally White Display, transmittance

• Brightness:    400 cd/m2

• Contrast Ratio:    400 :1 (transmission)

• Display Color:    262K(6bit)

• Response Time:    15/25(Tr/Td) ms

• Viewing Angle:    55/55/40/55 (up/down/left/right)

• Optimal Viewing Angle:    6 o'clock

• White Field Chroma:    X:0.294;Y:0.308

• White Field Change:    1.25/1.33(Typ./Max.)(9points)

• Inversion Scanning:    flip(horizontal/vertical)

• Power Consumption:    4.82W

• Kind of Singnal Interface:    31 pins 1.0mm spacing HRS DF9A-31P-1V

• Signal Type:    TTL(1ch,6bit)

• Signal Interface Voltage:    5.0V

• Signal Interface Current:    100/120mA(Typ./Max.)

• Signal Interface Power:    500mW (Typ.)

• Backlight Tube Position:    side into type light source

• Lamp Type:    2pcs CCFL

• Lamp Life:    50,000 (h)

• Lamp Total Power:    4.32W(Typ.)

• Voltage of Lamp:    360V(Typ.)

• Current of Lamp:    6.0mA(Typ./Max.)

• Working Frequency of Lamp:    40KHz


Why Qiyangtech?
1.Technical Support for lifetime.
2.Open Source.
3.Customisation Service.
4.Supply stably and chronically.

Wanna get a free 6.4'TFT-LCD 6.4'' TFT LCD module HDMI/VGA catalogue?
Wanna get an accurate price of 6.4'TFT-LCD 6.4'' TFT LCD module HDMI/VGA?
Wanna get information of same series products of 6.4'TFT-LCD 6.4'' TFT LCD module HDMI/VGA?

Contact us NOW!
