High quality ARM Cortex-A8 control board

Name: High quality ARM Cortex-A8 control board
Brand: QY
Price: Negotiable

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port Shanghai or Ningbo
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

D/C:	EZ-335X-EVB	Package:	BGA	Model Number:	EZ-335X-EVB
Brand Name:	QY	Place of Origin:	Zhejiang, China

Product Description

High quality ARM Cortex-A8 control board

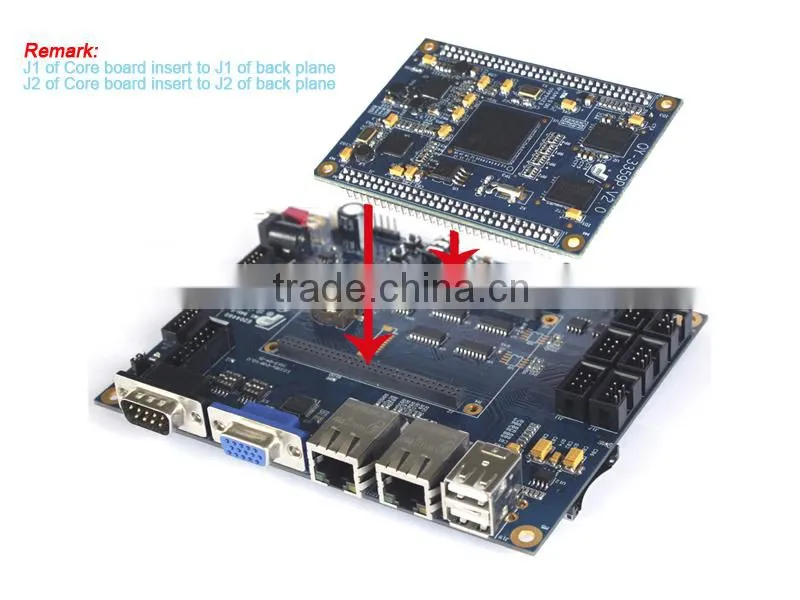

Core Module is designed by 6-floor PCB; the volume is only card size; together with CPU, DDR2 RAM, NandFlash, DataFLash, network; using 5V dc power supply, low power consumption; 2 x 100 BtoB connectors lead various commonly used interfaces; The core module is compatible with all AM335x-ARM Cortex-A8 series processors, and the users can choose different types of appropriate processor chip to reduce cost(only for bulk users).

Note: the AM3354 is the standard processor of IAC-335-X-Kit, which is to reduce the users' costs, and the rest of the models are compatible spell foot, only for bulk users!

High quality ARM Cortex-A8 control board

Core Module(IAC-335X-CM)

CPU Processor
• TI AM335X, ARM Cortex-A8 core
• 720MHz

DDR RAM Memory
• 256MB DDR2 RAM, 133MHz, 16bit data bus(The batch can be extended to maximum 512MB)

FLASH Storage
• On-board 2MB Dataflash
• On-board 256M*8bits NandFlash could change a large capacity or industrial chip according to customer's requirement(The batch can be extended to maximum 64G)

Interfaces
• 2*100 B to B connectors

Other Onboard Resources
• AR8035 net chip, support 10M/100M/1000M Ethernet with RGMII mode
• Power management, single 5V input and output voltage of all core module.

PCB Specification & Size
• Using six floors of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 74 x 53 x 1.5mm

Working Parameters
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing

Low Power Consumption
• 5V Dc power supply, low power consumption, <2W

Support OS
• Linux3.2.0 + QT4
• Android 4.0.3

Software & Technical Support

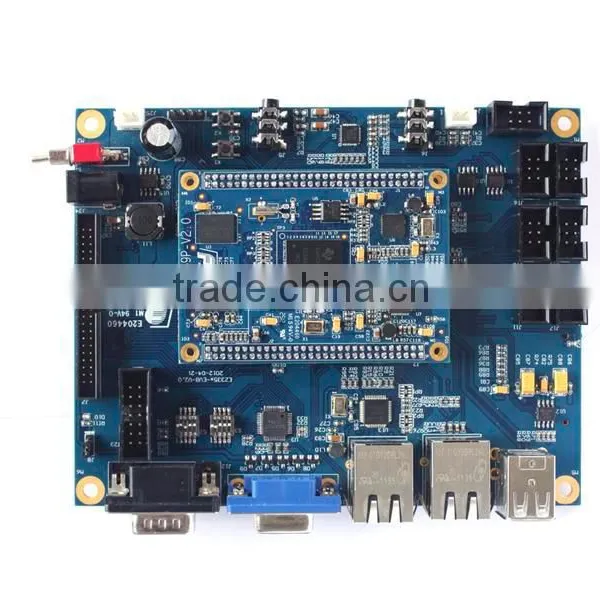

High quality ARM Cortex-A8 control board

PCB Specification & Size

• Using four floors of PCB high precision process

142 x 112.8 x 1.5mm

Working Parameters

• Working temperature: -20°C~ 70°C(batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing

Linux Software Features

No.	Item	Function
Cross-compiler	arm-arago-linux-gnueabi.tar.gz	TI official offer
U-boot	Version: U-boot 1.3.4	Provided with U-boot source code
	Support writing into DataFlash and NandFlash start
	Support the serial writing, SD card, and TFTP network update
Linux Kernel	Version: 3.2.0
	RTC driver, save and restore system time after power off	Provided with test program and source code
	CAN bus driver	Provided with test program and source code
	Nic driver	Provided with test program and source code

	Audio driver	Provided with test program and source code
	LCD driver, supporting 640×480, 800×600, 1024×768, 1280x800 resolution	Provided special LCD with debug service
	Touch screen driver, supporting 4-wire resistive screen	Provided with test program and source code
	Serial driver	Provided with test program and source code
	ADC driver	Provided with test program and source code


	USB driver, support mouse, keypad, U disk, WiFi, bluetooth, printer, camera, barcode scanning, etc.	Support various USB external devices, provided with debug service
	SD card driver	Support large capacity storage SD card
	File system

UBI File System		Provided with source code
QT Routine

	QT development environment	QT routine
PC Development Environment	Provided with ubuntu 12.04, LinuxOS, VMware 9.0.2 virtual machine and supporting development environment build manual	Convenient for user to next develop

Software & Technical Support

• The problems that customer encounter in the process of development on the products
• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer(another pay)
• Customized development of back plane, according to customer's requirements(another pay)

Order Infomation

Item	IAC-335X-Kit Cortex-A8 EK
Standard accessories	1)12V/2A power supply (2)1-wire cross serial line (3)CD of DVD development (4)4-wire RS232 serial lines (5)packing box
DVD resources	Linux	Compilers	Cross-compiler arm-arago-linux-gnueabi
		Tool software	Supporting terminal, writing, download tools
		Device manual	Main components' datasheet of back plane
		User manual	About all development and use
		Image file	Image file of MLO, u-boot, kernel and file system
		Test source code	Test routines and source codes of all interfaces
		System source code	Including bootloader, kernel, kernel, QT source code and madplay
		Schematic	Back plane's schematic in PDF format
		ubuntu	ubuntu-12.04-desktop-i386
	Android	Tool software	Supporting terminal, writing, download tools, sync software
		Device manual	Main components' datasheet of back plane
		User manual	About all development and use
		Image file	Image file of MLO, u-boot, kernel and file system
		Source code	Including u-boot, kernel and file system
		Schematic	Back plane's schematic in PDF format
LCD options(another pay)	4.3'LCD module + 4-wire resistive touch screen + USB cable
	5.6'LCD module + 4-wire resistive touch screen + USB cable
	6.4'LCD + 4-wire resistive touch screen + USB cable + inverter
	7'LCD module + 4-wire resistive touch screen + USB cable
	8'LCD module + 4-wire resistive touch screen + USB cable
	10.4'LCD + 4-wire resistive touch screen + USB cable + inverter
Module options(another pay)	TTL to LVDS module
Module options(another pay)	TTL to VGA module
Sales hotline	0571-89935913

High quality ARM Cortex-A8 control board Application:

• Textile Industry, Numeric Control Industry, Automobile Electronics, Industrial Touch Screen Control System, Robot Vision, Media Deal Wireless Application, Digital Applicance, On-board Equipment, Communication Equipment, Network Terminal, etc.
