EV charge pile billing system mainboard arm processor board
| 1. Adopt AM3354 processor,basic frequency: 800MHz,for bulk supply, the processors could be changed; | |
| 2. Memory: 512M DDR2 SDRAM; | |
| 3. FLASH: 2MB Dataflash 1G NandFlash; | |
| 4. Onboard 4-CH RS232 serial port,3-CH RS485 serial port, 2-CH USB, 2-CH CAN bus, 1-CH ethernet port; | |
| 5. Onboard LCD port, resistive touch screen port,audio port; | |
| 6. Onboard 6-CH DI, 6-CH DO port | |
| 7. Support ESAM chip, ISO7816 agreement; | |
| 8. Support PSAM; | |
| 9. Run Linux3.2 OS; | |
| 10. Conform to requirement of State Grid to charging station. | |
|
Over the years, Zhejiang Qiyangtech focused on development and service of embedded industrial ARM products,depend on the technical accumulation in TI series processors project and industrial business application, makes rapid market-response. Aim at the technical requirement of charging station billing system demanded by State Grid, R&D a type that totally meet the standard of State Grid, which could offer convenience for customers to directly embed it to the inside of charging station.

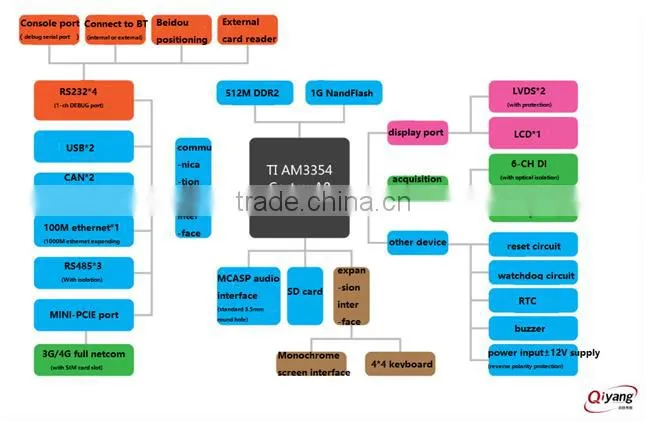

The whole scheme as follows:
| Processor: TI AM335X series processors, ARM Cortex-A8 core, basic frequency 800MHz; | |
| RAM: 512M DDR2 SDRAM; | |
| FLASH:2MB Dataflash 1G NandFlash; | |
| 4-CH RS232 serial ports, one is for DEBUG; | |
| 2-CH USB ports; | |
| 1-CH MINI-PCIE(connect 3G/4Gfull netcom,2 organizational SIM cassette) ; | |
| 2-CH CAN(with isolation), support CAN2.0 agreement; | |
| 3-CH RS485(with isolation); | |
| 2-CH LVDS(with protection), 1-CH LCD interface; | |
| MCASP audio port, single track audio output,(standard 3.5round hole interface); | |
| 1-CH SD card port; | |
| 1-CH 8pin connect to 4X4 matrix keyboard interface; | |
| 8-CH GIPO; | |
| 6-CH DI, blank nodes provided by exterior, interior 12V, optical isolation; | |
| 6-CH DO 220V/5A, relay isolation; | |
| +12V power supply, have reverse polarity protection; | |
| External ESAM/PSAM chip: implement billing unit encryption; | |
| External GPS or beidou module:implement charging station positioning; | |
| Other device:reset circuit, watchdog circuit, RTC, buzzer. |
| Number | Function |
| J2 | two-layer standard USB port |
| J3 | DEBUG serial port |
| J4 | RS232 port |
| J5 | RS232port |
| J6 | RS232 port |
| J7 | RS485 port |
| J8 | RS485 port |
| J9 | RS485 port |
| J10 | Can port |
| J11 | Can port |
| J12_J17 | DI port |
| J18 | power failure detection port |
| J19_J24 | DO port |
| J25 | AUDIO output |
| J26 | PCIE port |
| J27 | RJ45 ethernet |
| J28 | RJ45 ethernet |
| J29 | LCD port |
| J30 | LVDS port |
| J31 | LVDS—POWER port |
| J32 | AD conversion port |
| J33 | capacitive touch port |
| J38 | LED port |
| J39 | matrix keyboard port |
| J40 | SD card port |
| J41 | +12V power input port |
| S1 | SIM A card port |
| S2 | SIM B card port |
| SW1 | dial switch |
| SW2 | External awaken switch |
| BT1 | RTC-battery port |
Qiyangtech adopts present IAC-335X core board, develop QY-335X-MB baseboard, which totally conforms to the standard of State Grid, customers could directly use it to charging station billing unit control. Moreover, compared to SBC, customization cycle of core board+customed baseboard is shorter, and it will be more flexible in later designing and functional modifying.
Core Module is designed by 6-floor PCB; the volume is only card size; together with CPU, DDR2 RAM, NandFlash, DataFLash, network; using 5V dc power supply, low power consumption; 2 x 100 BtoB connectors lead various commonly used interfaces; The core module is compatible with all AM335x-ARM Cortex-A8 series processors, and the users can choose different types of appropriate processor chip to reduce cost(only for bulk users).
Core Module is designed by 6-floor PCB; the volume is only card size; together with CPU, DDR2 RAM, NandFlash, DataFLash, network; using 5V dc power supply, low power consumption; 2 x 100 BtoB connectors lead various commonly used interfaces; The core module is compatible with all AM335x-ARM Cortex-A8 series processors, and the users can choose different types of appropriate processor chip to reduce cost(only for bulk users).
EV charge pile billing system mainboard arm processor board
Core Module(IAC-335X-CM)
CPU Processor
• TI AM335X, ARM Cortex-A8 core
• 720MHz
DDR RAM Memory
• 256MB DDR2 RAM, 133MHz, 16bit data bus(The batch can be extended to maximum 512MB)
FLASH Storage
• On-board 2MB Dataflash
• On-board 256M*8bits NandFlash could change a large capacity or industrial chip according to customer's requirement(The batch can be extended to maximum 64G)
Interfaces
• 2*100 B to B connectors
Other Onboard Resources
• AR8035 net chip, support 10M/100M/1000M Ethernet with RGMII mode
• Power management, single 5V input and output voltage of all core module.
PCB Specification & Size
• Using six floors of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 74 x 53 x 1.5mm
Working Parameters
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing
Low Power Consumption
• 5V Dc power supply, low power consumption, <2W
Support OS
• Linux3.2.0 + QT4
• Android 4.0.3
EV charge pile billing system mainboard arm processor board
EV charge pile billing system mainboard arm processor board
Specification & Size
Working Parameters
• Humidity Range: 5%~ 95%, Non-Condensing
| No. | Item | Function |
|---|---|---|
| Cross-compiler | arm-arago-linux-gnueabi.tar.gz | TI official offer |
| U-boot | Version: U-boot 1.3.4 | Provided with U-boot source code |
| Support writing into DataFlash and NandFlash start | ||
| Support the serial writing, SD card, and TFTP network update | ||
| Linux Kernel | Version: 3.2.0 | |
| RTC driver, save and restore system time after power off | Provided with test program and source code | |
| CAN bus driver | Provided with test program and source code | |
| Nic driver | Provided with test program and source code | |
| Audio driver | Provided with test program and source code | |
| LCD driver, supporting 640×480, 800×600, 1024×768, 1280x800 resolution | Provided special LCD with debug service | |
| Touch screen driver, supporting 4-wire resistive screen | Provided with test program and source code | |
| Serial driver | Provided with test program and source code | |
| ADC driver | Provided with test program and source code | |
| USB driver, support mouse, keypad, U disk, WiFi, bluetooth, printer, camera, barcode scanning, etc. | Support various USB external devices, provided with debug service | |
| SD card driver | Support large capacity storage SD card | |
| File system | ||
| UBI File System | Provided with source code | |
| QT Routine | ||
| QT development environment | QT routine | |
| PC Development Environment | Provided with ubuntu 12.04, LinuxOS, VMware 9.0.2 virtual machine and supporting development environment build manual | Convenient for user to next develop |
Software & Technical Support
• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer(another pay)
• Customized development of back plane, according to customer's requirements(another pay)
| Item | IAC-335X-Kit Cortex-A8 EK | ||
|---|---|---|---|
| Standard accessories | 1)12V/2A power supply (2)1-wire cross serial line (3)CD of DVD development (4)4-wire RS232 serial lines (5)packing box | ||
| DVD resources | Linux | Compilers | Cross-compiler arm-arago-linux-gnueabi |
| Tool software | Supporting terminal, writing, download tools | ||
| Device manual | Main components' datasheet of back plane | ||
| User manual | About all development and use | ||
| Image file | Image file of MLO, u-boot, kernel and file system | ||
| Test source code | Test routines and source codes of all interfaces | ||
| System source code | Including bootloader, kernel, kernel, QT source code and madplay | ||
| Schematic | Back plane's schematic in PDF format | ||
| ubuntu | ubuntu-12.04-desktop-i386 | ||
| Android | Tool software | Supporting terminal, writing, download tools, sync software | |
| Device manual | Main components' datasheet of back plane | ||
| User manual | About all development and use | ||
| Image file | Image file of MLO, u-boot, kernel and file system | ||
| Source code | Including u-boot, kernel and file system | ||
| Schematic | Back plane's schematic in PDF format | ||
| LCD options(another pay) | 4.3'LCD module + 4-wire resistive touch screen + USB cable | ||
| 5.6'LCD module + 4-wire resistive touch screen + USB cable | |||
| 6.4'LCD + 4-wire resistive touch screen + USB cable + inverter | |||
| 7'LCD module + 4-wire resistive touch screen + USB cable | |||
| 8'LCD module + 4-wire resistive touch screen + USB cable | |||
| 10.4'LCD + 4-wire resistive touch screen + USB cable + inverter | |||
| Module options(another pay) | TTL to LVDS module | ||
| TTL to VGA module | |||
| Sales hotline | 0086-0571-87858811, 87858822 | ||
EV charge pile billing system mainboard arm processor board
Application:
• Textile Industry, Numeric Control Industry, Automobile Electronics, Industrial Touch Screen Control System, Robot Vision, Media Deal Wireless Application, Digital Applicance, On-board Equipment, Communication Equipment, Network Terminal, etc.
