Home > Products > New Products > ARM Core Board Atmel 9260 ARM926EJ-S Core 200MHz CPU

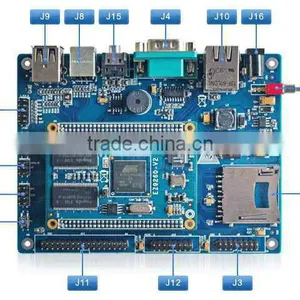

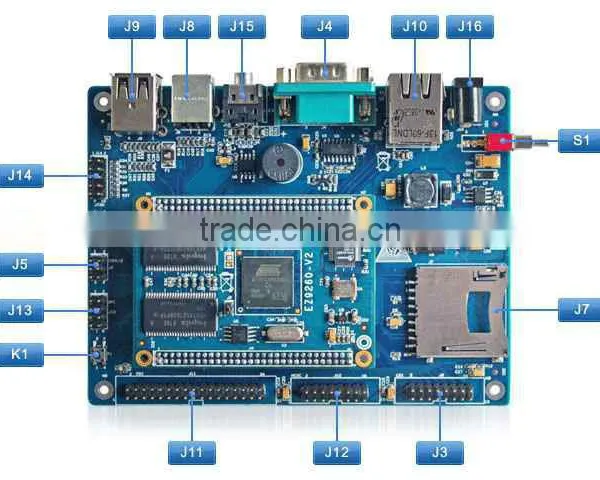

ARM Core Board Atmel 9260 ARM926EJ-S Core 200MHz CPU

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port Shanghai/Ningbo
Payment TermsT/T L/C D/P D/A Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Model Number	QY-9260P		Type	Other, ARM core board
Brand Name	QY		Place of Origin	Zhejiang, China

Product Description

Specifications

ARM core board
1.ATMEL AT91SAM9260 CPU
2.200MHz ARM926EJ-S core
3.64MB SDRAM 512K Data Flash 128M*8bits Nand Flash
4. RTC

Atmel9260 ARM Core Board Specifications

Core Module is designed by 6-floor PCB; the volume is only card size; together with CPU, SDRAM, NandFlash, DataFLash, network; 3.3V dc power supply, low power consumption; 2-wire 2*30P connectors lead various commonly used interfaces; suitable for the customers those who not plan to design CPU board by themselves next devolop.

Atmel9260 ARM Core Module Specifications

CPU Processor
• ATMEL AT91SAM9260, ARM926EJ-S core
• 200MHz

SDRAM Memory
• 64MB SDRAM, 2-piece 4Banks x 4Mbitsx16bits SDRAM

FLASH Storage
• On-board 512K DataFlash (DB45041D)
• On-board 128M*8bits NandFlash (K9F1G08U0B)could change a large capacity or industrial chip according to customer's requirement

Interfaces
• 2-piece 2*30PIN, 2.0 spacing connectors

Other Resources
• DM9161 net chip, support 10M/100M self-adaptive Ethernet with MII mode, more compatible than RMII;
• DS1337 clock chip, 32.768RTC clock source

PCB Specification & Size
• Using six floors of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 74 x 53 x 1.5mm

Working Parameters
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing

Low Power Consumption
• 3.3V Dc power supply, low power consumption, <1W

Support OS
• Linux2.6.30
• WindowsCE 5.0

ARM Core Board Technical Support:

• The problems that customer encounter in the process of development on the products
• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer(another pay)
• Customized development of back plane, according to customer's requirements(another pay)

ARM core board Order Infomation

Item	QY-9260P
DVD resources	Linux	Compilers	Cross-compiler arm-linux-gcc
		Tool software	Supporting terminal, writing, download tools
		Device manual	Main components' datasheet of back plane
		User manual	About all development and use
		Image file	Bootstarp, u-boot, kernal, image file of file system
		Test source code	Test routines and source codes of all interfaces
		System source code	Include bootstrap, u-boot, kernel, file system and QT source code
		Schematic	Back plane's schematic in PDF format
		Packaging library	Component packaging library of evaluation board
	Windows CE	Tool software	Supporting terminal, writing, download tools, sync software
		Device manual	Main components' datasheet of back plane
		User manual	About all development and use
		Image file	Firstboot, Eboot, NK image file
		Test source code	Test routines and source codes of all interfaces
		BSP package	Related BSP board-level supporting package
		SDK	Related SDK
		Schematic	Back plane's schematic in PDF format
		Packaging library	Component packaging library of evaluation board
Module options(another pay)	TTL to LVDS module
Module options(another pay)	TTL to VGA module
Sales hotline	+86-571-87858811, 87858822

Atmel9260 ARM Core Board Application:

• Textile Industry, Numeric Control Industry, Automobile Electronics, Industrial Touch Screen Control System, Robot Vision, Media Deal Wireless Application, Digital Applicance, On-board Equipment, Communication Equipment, Network Terminal, etc.

Our advantage:
