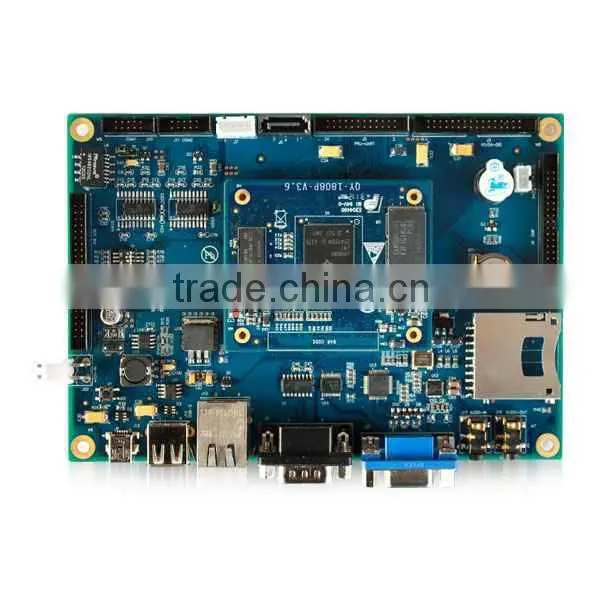

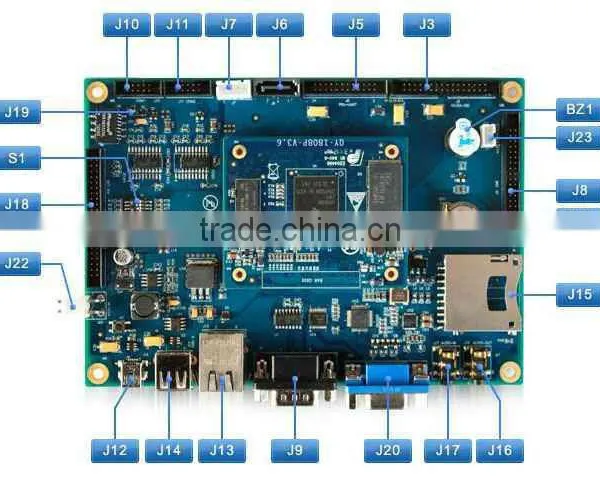

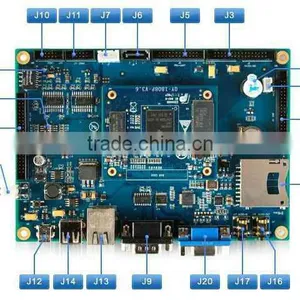

TI Core-board/module AM1808 ARMsupport Wince 3g Module Embedded Linux

CPU Processor
• TI AM1808 CPU, ARM926EJ-S Core
• 456MHz

SDRAM Memory
• 128MB SDRAM

FLASH Storage
• On-board 128M*8bits NandFlash(could change a large capacity or industrial chip according to customer's requirement)

Interfaces
• 2 pieces 2*50PIN B2B connectors: simple, convenient, high reliability

Other Onboard Resources
• On-board LAN8720 network chip, support 10M/100M Ethernet with MII mode

PCB Specification & Size
• Using six floors of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 74 x 53 x 1.5mm

Working Parameters
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing

Low Power Consumption
• 5v Dc power supply, low power consumption, <2W

Support OS
• Linux2.6.33
• WindowsCE 6.0

TI  core-board/module Technical Support:

  TI  core-board/module Application:

We are a high and new technology enterprise which is specializing in R&D, manufacture and sell embedded computer mainboard with high performance, low power consumption, low cost, small volume, and provides embedded hardware solutions. Over the years we focused on the development and services of embedded ARM industrial control products, which provides an easy-to-use development tools, reference design platform, product solutions of volume production for embedded development engineers. It helps customers to shorten the time from embedded board to products, and improves product quality. Our company is dedicated to become a leading embedded hardware and software supplier.

Hardware maintenance service

Hardware maintenance service means providing original factory maintenance,maintenance,repairing and recovering product performance for user’s mother board / core board .Including core board,baseboard,LCD,touch screen hardware fault test,electronic device replacement service.

Software and Hardware upgrading service

Software upgrading service means users installing operation system,installing equipment control software,according to customers’ requirement to customize winCE ,Linux OS . Hardware upgrading service means providing hardware upgrading scheme and hardware installing service.

Warranty Service

All parts product warranty period start form the purchase date, and under warranty is free of charge. The following circumstances products, not in warranty scope:
(1) Over the validation date of warranty;
(2) Belong to the user improper use or artificial damage;
(3) Without effective warranty certificate and invoice (can prove the goods in the warranty period excluded);
(4) Delivery product barcode or model not conform to physical commodity.
