Atmel 9260 Embedded USB2.0 Support Wince & Linux Embedded ARM SoM
- 100000 Piece / Pieces per Month
- Shanghai/Ningbo
- T/T L/C D/P D/A Credit Card
Product Details
D/C: | QY-9260P | Package: | 1pc | Model Number: | QY-9260P |
Type: | Other, ATMEL | Brand Name: | QY | Place of Origin: | Zhejiang, China |
Product Description
ARM SoM Specifications
Core Module is designed by 6-floor PCB; the volume is only card size; together with CPU, SDRAM, NandFlash, DataFLash, network; 3.3V dc power supply, low power consumption; 2-wire 2*30P connectors lead various commonly used interfaces; suitable for the customers those who not plan to design CPU board by themselves next devolop.
Atmel9260 ARM SoM Specifications
CPU Processor
• ATMEL AT91SAM9260, ARM926EJ-S core
• 200MHz
SDRAM Memory
• 64MB SDRAM, 2-piece 4Banks x 4Mbitsx16bits SDRAM
FLASH Storage
• On-board 512K DataFlash (DB45041D)
• On-board 128M*8bits NandFlash (K9F1G08U0B)could change a large capacity or industrial chip according to customer's requirement
Interfaces
• 2-piece 2*30PIN, 2.0 spacing connectors
Other Resources
• DM9161 net chip, support 10M/100M self-adaptive Ethernet with MII mode, more compatible than RMII;
• DS1337 clock chip, 32.768RTC clock source
PCB Specification & Size
• Using six floors of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 74 x 53 x 1.5mm
Working Parameters
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing
Low Power Consumption
• 3.3V Dc power supply, low power consumption, <1W
Support OS
• Linux2.6.30
• WindowsCE 5.0
ARM SoM Technical Support:
• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer(another pay)
• Customized development of back plane, according to customer's requirements(another pay)

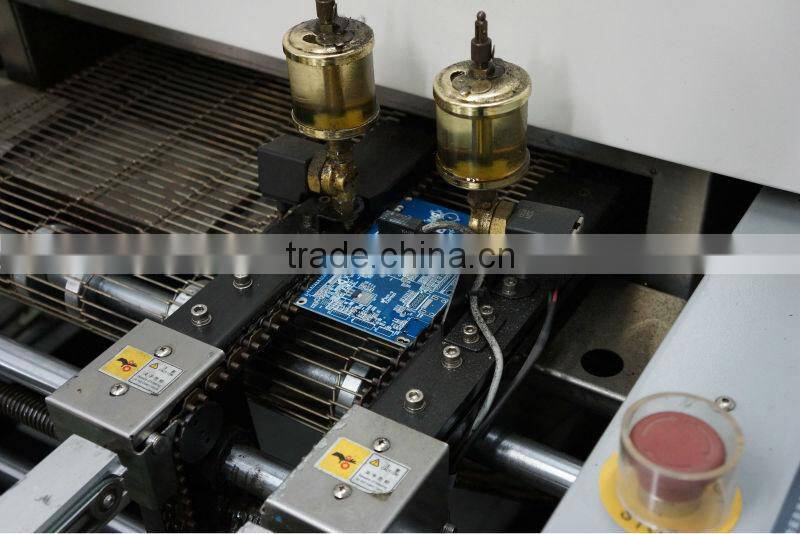

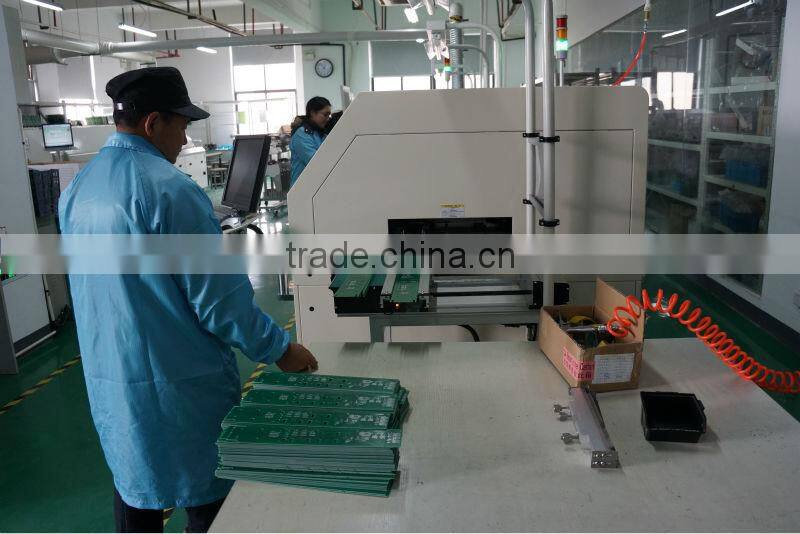

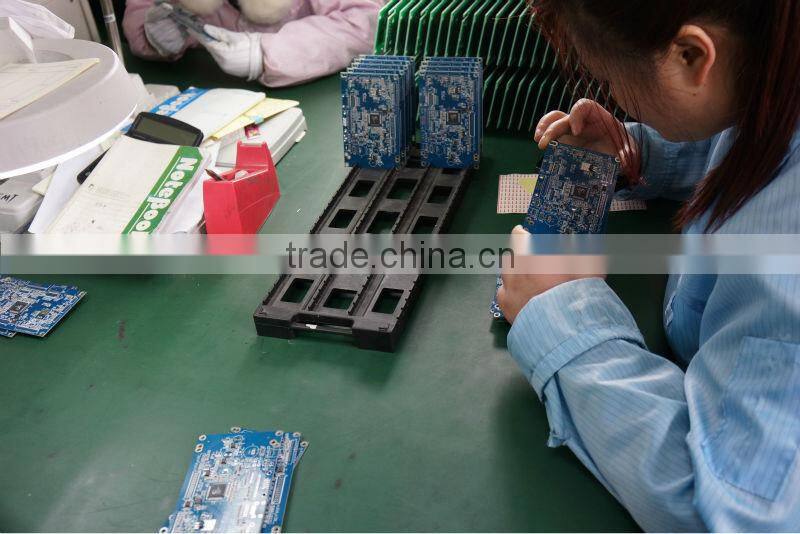

We are a professional R&D ARM board Manufacture. We have our own research team and factory which can perfectly gurantee the quality control and delivery time.
ARM SoM
Sample shipped by the most effecitive and costless Express
Big quantity shipped by Air or Ship
Order Information
Item | QY-9260P | ||
---|---|---|---|
DVD resources | Linux | Compilers | Cross-compiler arm-linux-gcc |
Tool software | Supporting terminal, writing, download tools | ||
Device manual | Main components' datasheet of back plane | ||
User manual | About all development and use | ||
Image file | Bootstarp, u-boot, kernal, image file of file system | ||
Test source code | Test routines and source codes of all interfaces | ||
System source code | Include bootstrap, u-boot, kernel, file system and QT source code | ||
Schematic | Back plane's schematic in PDF format | ||
Packaging library | Component packaging library of evaluation board | ||
Windows CE | Tool software | Supporting terminal, writing, download tools, sync software | |
Device manual | Main components' datasheet of back plane | ||
User manual | About all development and use | ||
Image file | Firstboot, Eboot, NK image file | ||
Test source code | Test routines and source codes of all interfaces | ||
BSP package | Related BSP board-level supporting package | ||
SDK | Related SDK | ||
Schematic | Back plane's schematic in PDF format | ||
Packaging library | Component packaging library of evaluation board | ||
Module options(another pay) | TTL to LVDS module | ||
TTL to VGA module | |||
Sales hotline | +86-571-87858811, 87858822 |
