ATMEL Coretex-A5 SAMA5D3X Low Cost With 2 CAN Syetem On Module

ATMEL Coretex-A5 SAMA5D3X Low Cost With 2 CAN Syetem On Module thumbnail-1
ATMEL Coretex-A5 SAMA5D3X Low Cost With 2 CAN Syetem On Module photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
D/C:
IAC-A5D3X-CM
Package:
1pc
Model Number:
IAC-A5D3X-CM
Contact Supplier Request Quote Chat Now
Zhejiang Qiyang Intelligent Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
D/C IAC-A5D3X-CM
Package 1pc
Model Number IAC-A5D3X-CM
Type Other, ARM SoM
Brand Name QY
Place of Origin Zhejiang, China

Syetem On Module (A5D3X)Specifications:

CPU processor
•ATMEL SAMA5D3X,Cortex A5 core
• 536MHz

DDR RAM Memory
• 256MB DDR2 RAM,333MHz,32bit data bus


FLASH Storage
• On-board 2M DataFlash (45DB161D)
•On-board 256M*8bits NandFlash (29F2G08ABAEA)could change a large capacity or industrial chip according to customer's requirement


Interfaces
• 2*100 pin 0.8mm spacing B to B connector


Other Onboard Resources
• DM9162 net chip,support 10M/100M Ethernet with MII mode,more compatible than RMII mode

• Power management, support 1.8V,3.3V,5.0V voltage input.

PCB Specification & Size
• Using six floors of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 74 x 53 x 1.5mm

Working Parameters
•Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
•Humidity Range: 5%~ 95%, Non-Condensing

Low Power Consumption
• 5V Dc power supply, low power consumption, <2W

Support OS
• Linux 3.6.9 + QT4
• Android 4



Industrial Cortex-A5 CPU!!

Processor performance improve greatly;
Provide complete design data;
4-type CPU for different applicaiton;
Optimize resources, maximum interface demand ;
...

Professional Hardware Design!

Pay attention to details,thoroughly defeat learning board;
Professional wiring, easy on testing;
The core board: 6- layer PCB design;

...

Abundant Interface Resource!

Stable,abundant interface project;
UART(A5D35 with own 7-ch);
CAN(A5D345with own 2-ch);
LCD & VGA interface;
Multiplexing IO reserved;

…

Industrial Connection Device!

Core board connect with back plane stable;
2 x 100 pin 0.8 space;
Excellent electric performance and environment performance;

…

A5D3X-Cortex A5 core boardadopts ATMEL SAMA5D3X series chip,Cortex-A5 core,standard configuration is SAMA5D34.The users can choose different types of appropriate processor chip to reduce cost(only for bulk users).Difference about the model ,please see the form below:







  SAMA5D31 SAMA5D33 SAMA5D34 SAMA5D35
LCDC √ √ √
GMAC   √ √ √
EMAC √     √
CAN0,CAN1     √ √
HSMCI2 √   √ √
UART0 √     √
UART1 √     √
TC1       √

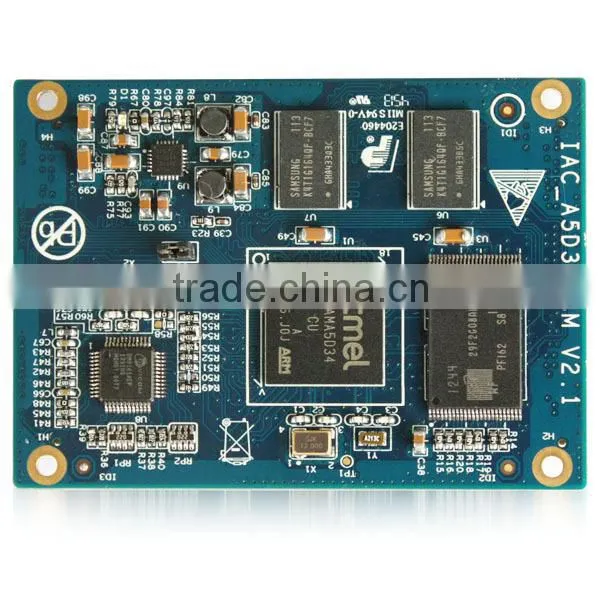

A5D3X Cortex A5 core board is designed by 6-floor PCB; the volume is only card size; together with CPU, DDR2 RAM, NandFlash, DataFLash, network; using 5V dc power supply, low power consumption; 2 x 100 BtoB connectors boot various commonly used interfaces;The users can choose different types of appropriate processor chip to reduce cost(only for bulk users).



ATMEL Coretex-A5 SAMA5D3X Low Cost with 2 CAN Syetem On Module ATMEL Coretex-A5 SAMA5D3X Low Cost with 2 CAN Syetem On Module

Syetem On Module Software & Technical Support

ATMEL Coretex-A5 SAMA5D3X Low Cost with 2 CAN Syetem On Module

Syetem On Module (A5D3X) Technical Support:

• The problems that customer encounter in the process of development on the products
• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer(another pay)
• Customized development of back plane, according to customer's requirements(another pay)





Company Information

We are a professional R&D ARM board Manufacture. We have our own research team and factory which can perfectly gurantee the quality control and delivery time.

ARM SoM

ATMEL Coretex-A5 SAMA5D3X Low Cost with 2 CAN Syetem On ModuleATMEL Coretex-A5 SAMA5D3X Low Cost with 2 CAN Syetem On ModuleATMEL Coretex-A5 SAMA5D3X Low Cost with 2 CAN Syetem On Module

ATMEL Coretex-A5 SAMA5D3X Low Cost with 2 CAN Syetem On Module







Packaging & Shipping

  ATMEL Coretex-A5 SAMA5D3X Low Cost with 2 CAN Syetem On Module

ATMEL Coretex-A5 SAMA5D3X Low Cost with 2 CAN Syetem On Module



Embedded Stamp Module (A5D3X) Order Information

Item IAC-A5D3X-CM
Standard Accessories (1) CD of DVD development(2)packing box
DVD Resources Linux Compilers Cross-compiler arm-linux-gcc
Tool software Supporting terminal, writing, download tools
Device manual Main components' datasheet of back plane
User manual About all development and use
Image file Image file of bootstarp, u-boot, kernel and file system
Test source code Test routines and source codes of all interfaces
System source code

Including bootstrap, u-boot, file system and QT source code
Schematic Back plane's schematic in PDF format
PCB Library PCB library of Eval. board's back plane
LCD options(another pay) 4.3'LCD module + 4-wire resistive touch screen + USB cable
5.6'LCD module + 4-wire resistive touch screen + USB cable
6.4'LCD + 4-wire resistive touch screen + USB cable + inverter
7'LCD module + 4-wire resistive touch screen + USB cable
8'LCD module + 4-wire resistive touch screen + USB cable
10.4'LCD + 4-wire resistive touch screen + USB cable + inverter
Module options(another pay) TTL to LVDS module
TTL to VGA module
Sales hotline 86-571-87858811;86-571-87858822



   Application:

• Textile Industry, Numeric Control Industry, Automobile Electronics, Industrial Touch Screen Control System, Robot Vision, Media Deal Wireless Application, Digital Applicance, On-board Equipment, Communication Equipment, Network Terminal, etc.



Our Advantage:

ATMEL Coretex-A5 SAMA5D3X Low Cost with 2 CAN Syetem On Module



Our Services



Technique support is our special service for our customer after sales. We also have OEM and ODM service for special requirements.
