Home > Electrical & Electronics > Integrated Circuit > General-purpose Integrated Circuit > RF Development Board Cortex GPS Development Board Cortex Embedded Development Board Cortex

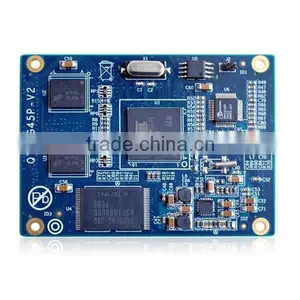

RF Development Board Cortex GPS Development Board Cortex Embedded Development Board Cortex

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

D/C:

QY-9G45P

Package:

1PC embedded development board cortex per package

Model Number:

QY-9G45P

Contact Supplier Request Quote Chat Now

Zhejiang Qiyang Intelligent Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

D/C QY-9G45P

Package 1PC embedded development board cortex per package

Model Number QY-9G45P

Type Other, Atmel

Brand Name QY

Place of Origin Zhejiang, China

ARM Embedded Board embedded development board cortex Specifications

Core Module is designed by 6-floor; the volume is only card size; together with CPU, DDR2 RAM, NandFlash, DataFLash, network; 5V dc power supply, low power consumption; B to B(2*100)connectors lead various commonly used interfaces; suitable for customer batch use.

ARM Embedded Board embedded development board cortex Specifications:

CPU Processor
• ATMEL AT91SAM9G45, ARM926EJ-S core
• 400MHz

DDR RAM Memory
• 128MB DDR2 RAM, 133MHz, 32bit data bus

FLASH Storage
• On-board 512K DataFlash (DB45041D)
• On-board 128M*8bits NandFlash (K9F1G08U0B)could change a large capacity or industrial chip according to customer's requirement

Interfaces
• 2*100 pin 0.8mm spacing B to B(the connectors are 350°C high temperature-tested and seismic-tested)

Other Resources
• DM9161 net chip, support 10M/100M self-adaptive Ethernet with MII mode, more compatible than RMII;
• 1.8V, 3.3V, 5.0V voltage input

PCB Specification & Size
• Using six floors of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 74 x 53 x 1.5mm

Working Parameters
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing

Low Power Consumption
• 5V Dc power supply, low power consumption, <1W

Support OS
• Linux2.6.30 + QT2.3 / QT4
• WindowsCE 6.0

Atmel9G45 Software & Technical Support:

• The problems that customer encounter in the process of development on the products
• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer(another pay)
• Customized development of back plane, according to customer's requirements(another pay)

embedded development board cortex Order Information

Item	QY-9G45P
DVD resources	Linux	Compilers	Cross-compiler arm-linux-gcc
		Tool software	Supporting terminal, writing, download tools
		Device manual	Main components' datasheet of back plane
		User manual	About all development and use
		Image file	Bootstarp, u-boot, kernal, image file of file system
		Test source code	Test routines and source codes of all interfaces
		System source	Include bootstrap, u-boot, kernel, file system and QT source code
		Schematic	Back plane's schematic in PDF format
		Packaging library	Component packaging library of evaluation board
	Windows CE	Tool software	Supporting terminal, writing, download tools, sync software
		Device manual	Main components' datasheet of back plane
		User manual	About all development and use
		Image file	Firstboot, Eboot, NK image file
		Test source code	Test routines and source codes of all interfaces
		BSP package	Related BSP board-level supporting package
		SDK	Related SDK
		Schematic	Back plane's schematic in PDF format
		Packaging library	Component packaging library of evaluation board
LCD options (another pay)	4.3' LCD module + 4-wire resistive touch screen +USB cable
	5.6' LCD module + 4-wire resistive touch screen +USB cable
	6.4' LCD + 4-wire resistive touch screen + USB cable + inverter
	7' LCD module + 4-wire resistive touch screen +USB cable
	8' LCD module + 4-wire resistive touch screen +USB cable
	10.4' LCD + 4-wire resistive touch screen + USB cable + inverter
Module options(another pay)	TTL to LVDS module
Module options(another pay)	TTL to VGA module
Sales hotline	+86-571-87858811, 87858822

embedded development board cortex ARM Embedded Board Application:

• Textile Industry, Numeric Control Industry, Automobile Electronics, Industrial Touch Screen Control System, Robot Vision, Media Deal Wireless Application, Digital Applicance, On-board Equipment, Communication Equipment, Network Terminal, etc

Company Information

We are a high and new technology enterprise which is specializing in R&D, manufacture and sell embedded computer mainboard with high performance, low power consumption, low cost, small volume, and provides embedded hardware solutions. Over the years we focused on the development and services of embedded ARM industrial control products, which provides an easy-to-use development tools, reference design platform, product solutions of volume production for embedded development engineers. It helps customers to shorten the time from embedded board to products, and improves product quality. Our company is dedicated to become a leading embedded hardware and software supplier.

Our Services

Custom Service

Cooperation Mode	Based on Core Module Customization	The Whole Board Customization
Specification	Customize expanded board based on our core module	Offer complete mainboard customization based on the process platform we choose for you
Service	Provide device selection, design suggestions, plate type design; Principle diagram design, PCB design/modification, driver debug, driver source code, test source code, secondary development document writing, prototype; Provide upper development, and the follow-up with long-term technical support, quality tracking service.	Provide device selection, design suggestions, plate type design Principle diagram design, PCB design/modification, driver debug, driver source code, test source code, secondary development document writing, prototype; Provide upper development, and the follow-up with long-term technical support, quality tracking service.
Development Cycle	Provide mainboard test usually in 8-10 weeks(no fly line)	Provide mainboard test usually in 2-3 months(no fly line)
Deliver	Principle diagram, PCB, driver source code, prototype, etc.	Principle diagram, PCB, driver source code, prototype, etc.
Service Extension(optional)	Offer trial production/batch production, make production process, ensure the quality and delivery time; EMC/MI Test; Perfect quality assurance and after-sales service; Product system, software and hardware upgrades.	Offer trial production/batch production, make production process, ensure the quality and delivery time; EMC/MI Test; Perfect quality assurance and after-sales service; Product system, software and hardware upgrades.
Expense	Low, according to user's requirements and difficulty level of R&D; The user who choose OEM could return part of R&D costs	High, according to user's requirements and difficulty level of R&D; The user who choose OEM could return part of R&D costs

Warranty

Hardware maintenance service

Hardware maintenance service means providing original factory maintenance,maintenance,repairing and recovering product performance for user’s mother board / core board .Including core board,baseboard,LCD,touch screen hardware fault test,electronic device replacement service.

Software and Hardware upgrading service

Software upgrading service means users installing operation system,installing equipment control software,according to customers’ requirement to customize winCE ,Linux OS . Hardware upgrading service means providing hardware upgrading scheme and hardware installing service.

Warranty Service

All parts product warranty period start form the purchase date, and under warranty is free of charge. The following circumstances products, not in warranty scope:
(1) Over the validation date of warranty;
(2) Belong to the user improper use or artificial damage;
(3) Without effective warranty certificate and invoice (can prove the goods in the warranty period excluded);
(4) Delivery product barcode or model not conform to physical commodity.
