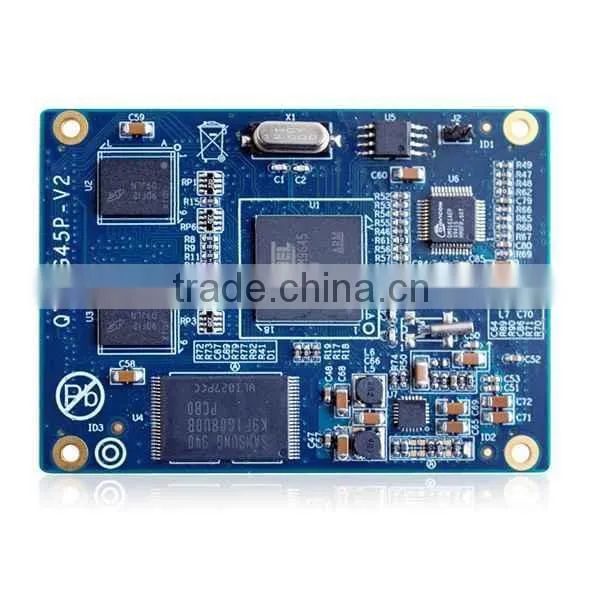

ATMEL AT91SAM9G45 ARM9 core-board/module
System On Module Specifications
Core Module is designed by 6-floor; the volume is only card size; together with CPU, DDR2 RAM, NandFlash, DataFLash, network; 5V dc power supply, low power consumption; B to B(2*100)connectors lead various commonly used interfaces; suitable for customer batch use.
Atmel9G45 System On Module Specifications:
CPU Processor
• ATMEL AT91SAM9G45, ARM926EJ-S core
• 400MHz
DDR RAM Memory
• 128MB DDR2 RAM, 133MHz, 32bit data bus
FLASH Storage
• On-board 512K DataFlash (DB45041D)
• On-board 128M*8bits NandFlash (K9F1G08U0B)could change a large capacity or industrial chip according to customer's requirement
Interfaces
• 2*100 pin 0.8mm spacing B to B(the connectors are 350°C high temperature-tested and seismic-tested)
Other Resources
• DM9161 net chip, support 10M/100M self-adaptive Ethernet with MII mode, more compatible than RMII;
• 1.8V, 3.3V, 5.0V voltage input
PCB Specification & Size
• Using six floors of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 74 x 53 x 1.5mm
Working Parameters
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing
Low Power Consumption
• 5V Dc power supply, low power consumption, <1W
Support OS
• Linux2.6.30 + QT2.3 / QT4
• WindowsCE 6.0
System On Module Software & Technical Support:
• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer(another pay)
• Customized development of back plane, according to customer's requirements(another pay)
We are a professional R&D ARM board Manufacture. We have our own research team and factory which can perfectly gurantee the quality control and delivery time.
ARM SoM
Order Information
| Item | QY-9G45P | ||
|---|---|---|---|
| DVD resources | Linux | Compilers | Cross-compiler arm-linux-gcc |
Tool software | Supporting terminal, writing, download tools | ||
Device manual | Main components' datasheet of back plane | ||
User manual | About all development and use | ||
Image file | Bootstarp, u-boot, kernal, image file of file system | ||
Test source code | Test routines and source codes of all interfaces | ||
| System source | Include bootstrap, u-boot, kernel, file system and QT source code | ||
| Schematic | Back plane's schematic in PDF format | ||
| Packaging library | Component packaging library of evaluation board | ||
| Windows CE | Tool software | Supporting terminal, writing, download tools, sync software | |
| Device manual | Main components' datasheet of back plane | ||
User manual | About all development and use | ||
Image file | Firstboot, Eboot, NK image file | ||
Test source code | Test routines and source codes of all interfaces | ||
| BSP package | Related BSP board-level supporting package | ||
| SDK | Related SDK | ||
Schematic | Back plane's schematic in PDF format | ||
Packaging library | Component packaging library of evaluation board | ||
| LCD options (another pay) | 4.3' LCD module + 4-wire resistive touch screen +USB cable | ||
| 5.6' LCD module + 4-wire resistive touch screen +USB cable | |||
| 6.4' LCD + 4-wire resistive touch screen + USB cable + inverter | |||
| 7' LCD module + 4-wire resistive touch screen +USB cable | |||
| 8' LCD module + 4-wire resistive touch screen +USB cable | |||
| 10.4' LCD + 4-wire resistive touch screen + USB cable + inverter | |||
| Module options(another pay) | TTL to LVDS module | ||
| TTL to VGA module | |||
| Sales hotline | +86-571-87858811, 87858822 | ||
Application:
• Textile Industry, Numeric Control Industry, Automobile Electronics, Industrial Touch Screen Control System, Robot Vision, Media Deal Wireless Application, Digital Applicance, On-board Equipment, Communication Equipment, Network Terminal, etc
Technique support is our special service for our customer after sales. We also have OEM and ODM service for special requirements.
