Home > Electrical & Electronics > Integrated Circuit > General-purpose Integrated Circuit > Newest! ODM/OEM Freescale Industrial CPU Cortex-A9 System On Module/1Ghz

Newest! ODM/OEM Freescale Industrial CPU Cortex-A9 System On Module/1Ghz

Name: Newest! ODM/OEM Freescale Industrial CPU Cortex-A9 System On Module/1Ghz
Brand: Qiyang
SKU: 106984805
Availability: InStock

Newest! ODM/OEM Freescale Industrial CPU Cortex-A9 System On Module/1Ghz thumbnail-1

Newest! ODM/OEM Freescale Industrial CPU Cortex-A9 System On Module/1Ghz thumbnail-2

Newest! ODM/OEM Freescale Industrial CPU Cortex-A9 System On Module/1Ghz thumbnail-3

Newest! ODM/OEM Freescale Industrial CPU Cortex-A9 System On Module/1Ghz photo-1

Newest! ODM/OEM Freescale Industrial CPU Cortex-A9 System On Module/1Ghz photo-2

Newest! ODM/OEM Freescale Industrial CPU Cortex-A9 System On Module/1Ghz photo-3

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Package:

BGA

Model Number:

QY-I.MX6-CM

Brand Name:

Qiyang

Contact Supplier Request Quote Chat Now

Zhejiang Qiyang Intelligent Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Package BGA

Model Number QY-I.MX6-CM

Brand Name Qiyang

Place of Origin Zhejiang, China

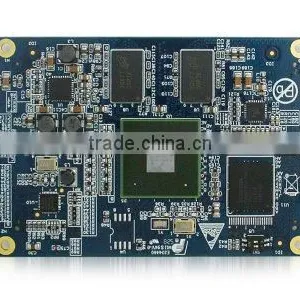

Freescale I.mx6 Cortex-A9 Core Board

If the recent board resource do not satisfy you,contact us for customization service(ODM/OEM service).

Product Description

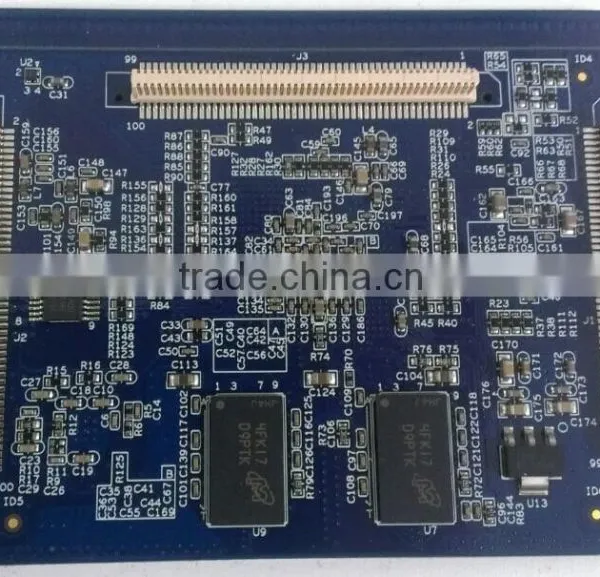

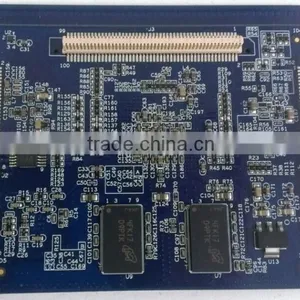

Freescale I.mx6 Cortex-A9 Core Board :is designed by 8-layer PCB; card size;integrated with CPU,DDR3 RAM,Flash,network;5V DC power supply,low power consumption;B to B (3 x 100 )connectors boot various commonly used interfaces;The users can choose different types of appropriate processor chip to reduce cost(only for bulk users).

Freescale Dual Core Cortex-A9 Module Specifications:

CPU Processor

• Freescale i.MX6 processor,ARM Cortex A9 core • 1.0GHz,compatible with solo/dual/quad core

DDR RAM Memory

• DDR3 SDRAM,4*256MB,1GB

FLASH Storage

• 4GB EMMC

Interface Resources

• 3*100 pin 0.8mm spacing B to B (the connectors are 350℃ high temperature-tested and seismic-tested)

Other On-board Resources

• AR8035 network on chip,support 10M/100M Ethernet with MII mode, more compatible than RMII

• Power management,support 1.8V/3.3V/5.0V voltage input

PCB Specification & Size

• Using 8-layer PCB high precision process, with the best electrical properties and anti-jamming performance • 86 x 60x 1.5mm

Working Parameters

• Working temperature: -20°C~ 70°C (batch order could be customized to -40°C~ 85°C) • Humidity Range: 5%~ 95%, Non-Condensing

Low Power Consumption

• 5V Dc power supply, low power consumption, <1W

Support OS

• Linux 3.0+QT4.8 • Android 4.2

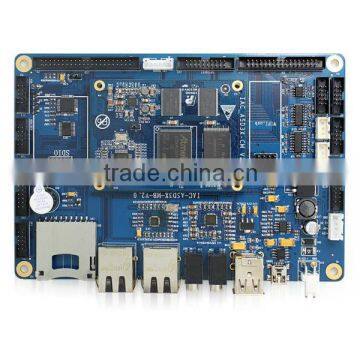

I. mx6 Development Kit link:

http://preview.china.cn/product/60088573675-0/I_MX6_SOM_Interface_Board_2_CAN_1_G_Ethernet_Port_SATA_HDMI_LVDS_VGA_MINI_PCIE.html

Freescale Dual Core Cortex-A9 Module

Product Roadmap

Freescale Dual Core Cortex-A9 Module

Application Area

Freescale Dual Core Cortex-A9 Module

• Textile Industry, Numeric Control Industry, Automobile Electronics, Industrial Touch Screen Control System, Robot Vision, Media Deal Wireless Application, Digital Applicance, On-board Equipment, Communication Equipment, Network Terminal, etc.

SMT Factory:

Accessory Warehouse

Freescale Dual Core Cortex-A9 Module

Technical Service:

1.We provide the high performance SOM-series ARM-based module. Proven technology for underlying software and hardware, open source service, high efficient online after-sale service accelerate our customer’s development cycle.

2.OEM/ODM service will help you to achieve your ideal products. Rich experiences help us to open our customer's market quickly. ODM/OEM products right belongs to our customer.

3.Precision market positioning in industrial control area. Professional technology and attitude always let Qiyang win a great reputation in ARM embedded industry. Cooperate with Qiyang, benefit for both of us.

4.Qiyang ARM boards have already embedded in the various industrials. Touch with the end customers in different ‘’Face’’.

Project Entrance: Product Entrance:

Contact Information:

Sally Ma:

Tel: +86 571 87858811-811

Mobile / Wechat / WhatsApp / Line / Viber : +86 13616520351

Skype: live:sally_ma.198907 Or Email me

QQ:1654768227 (Sally Ma)
