Atmel A5D3X Development Board
If the recent board resource do not satisfy you,contact us for customization service(ODM/OEM service).
• Adopts Atmel SAMA5D3 series CPU, Cortex-A5 ARM Core, ARM v7-A instruction set, 536MHz;
• With floating point arithmetic unit, 64-bit internal bus architecture and 32-bit DDR controller, 166MHz. It owns high-precision calculation and quick data processing;
• Can choose different type of processor to get different function combination, optimize costs, and all models PIN compatibility;
• Extend 5-ch serial port,1-ch CAN bus, 2-ch Ethernet port;
• Power consumption ≤1W, owns low consumption mode function, the best selection for battery-powered application;
• Rich external interfaces, can replace Atmel ARM9 series products, and upgrade the product perfectly;
• Support Linux3.6 and Android 4.0.

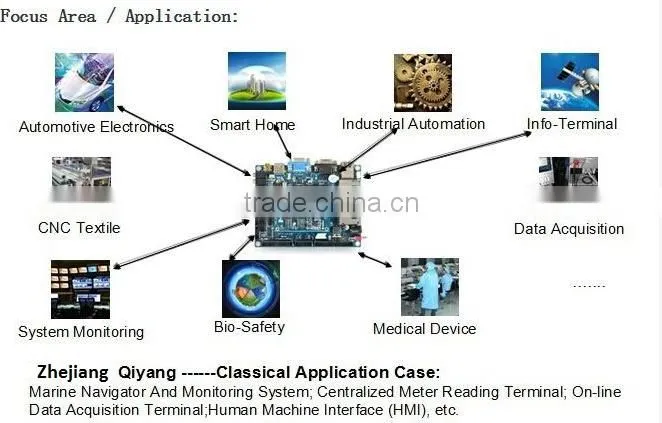

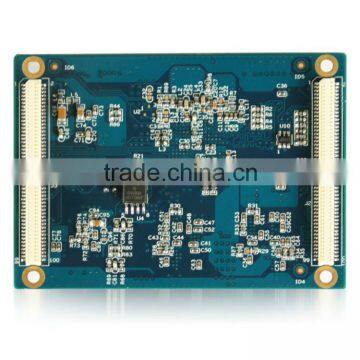

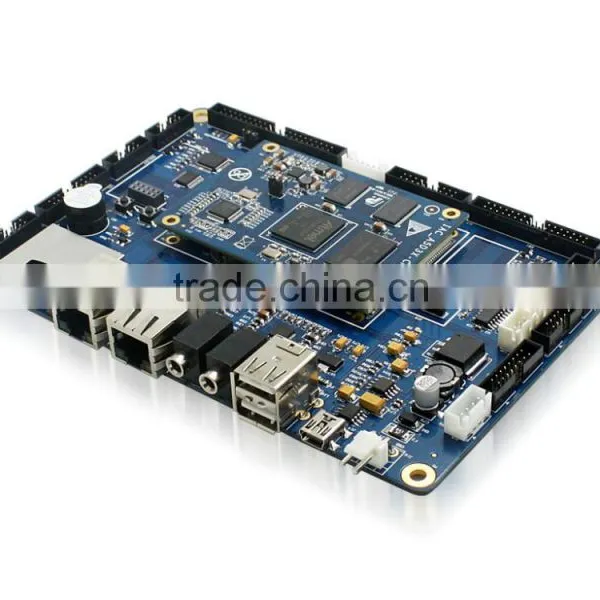

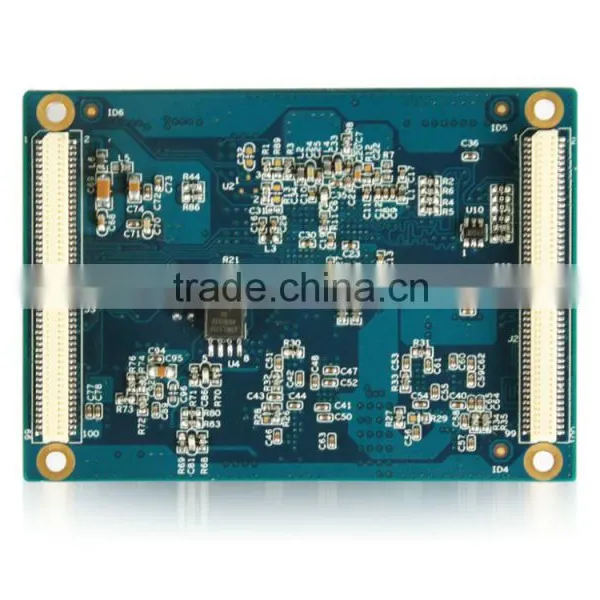

Core Module Specifications:
CPU Processor
• ATMEL SAMA5D3X,Cortex A5 core • 536MHz
DDR RAM Memory
• 256MB DDR2 RAM,333MHz,32bit data bus
FLASH Storage
• On-board 2M DataFlash (45DB161D) • On-board 256M*8bits NandFlash (29F2G08ABAEA)could change a large capacity or industrial chip according to customer's requirement
Interfaces
• 2*100 pin 0.8mm spacing B to B connector
Other Onboard Resources
• DM9162 net chip,support 10M/100M Ethernet with MII mode,more compatible than RMII mode • Power management, support 1.8V,3.3V,5.0V voltage input
PCB Specification & Size
• Using six floors of PCB high precision process, and has the best electrical properties and anti-jamming performance • 74 x 53 x 1.5mm
Working Parameters
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C) • Humidity Range: 5%~ 95%, Non-Condensing
Low Power Consumption
• 5V Dc power supply, low power consumption, <2W
Support OS
• Linux 3.6.9 + QT4 • Android 4
Detailed information for SAMA5D3X, please check this link:
http://preview.china.cn/product/60098737615-0/ODM_OEM_Atmel_Cortex_A5_ARM_System_Module_256MB_RAM_256MB_Flash.html

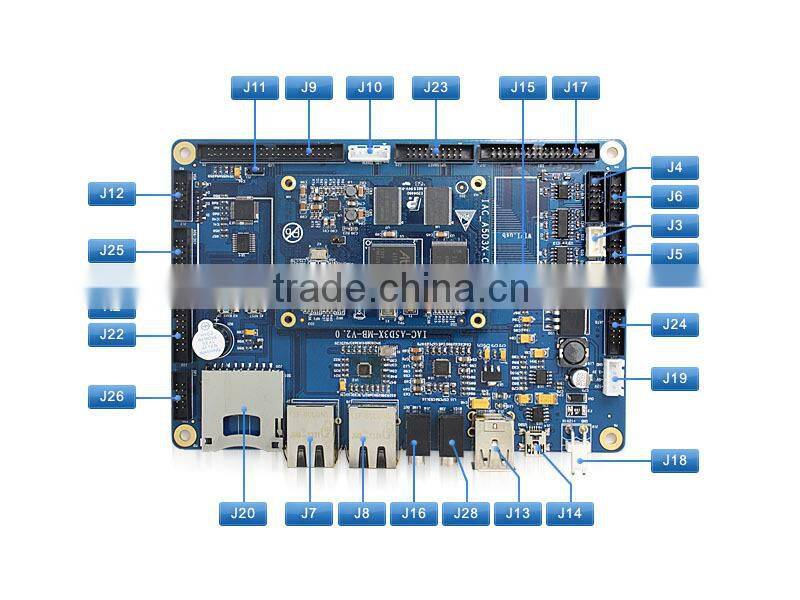

| No. | Item | Function |
|---|---|---|
| J3 | Debug UART | Download Telecommunication |
| J4 | COM1&485_1 | 5-Wire Serial Port&RS485 |
| J5 | COM0&COM3 | 3-Wire Serial Port |
| J6 | COM2&485_2 | 5-Wire Serial Port&RS485 |
| J7 | Ethernet Port 0 | 10/100M Ethernet Port |
| J8 | Ethernet Port 1 | 10/100M Ethernet Port |
| J9 | TFT-LCD, Touch Panel | TFT-LCD |
| J10 | I2C | I2C Telecommunication |
| J11 | TFT-LCD Power Supply | 3.3v/5v Optional |
| J12 | VGA Interface | VGA Video Output |
| J13 | USB 2.0 Host | USB Host |
| J14 | USB 2.0 Device | High Speed USB(480MHz),used to download the program |
| J15 | WIFI Interface | WIFI_usb |
| J16 | AUDIO Interface | Dual Channel Audio Outputinear audio output |
| J17 | EBI Interface | Cpu Internal Bus |
| J18 | Power Interface | +12V power supply, support +6 ~+25V wide range voltage |
| J19 | Power Output | 3.3V/5v/12v Output |
| J20 | SD Card | SD/MMC Card Interface |
| J22 | ISI Interface | Video application development |
| J23 | Keyboard Interface | 8*8 Matrix Keyboard interface, to be used as GPI/0 |
| J24 | JTAG Interface | Simulation, Debugging |
| J25 | AD&I2C Interface | AD input & I2C application |
| J26 | SPI Interface | Expand peripheral equipment |
| J27 | CAN Interface | CAN application |
| J28 | AUDIO | MIC Signal Input |
| K1 | Reset Button | System reset |
| K2 | Wake-up button | Sleep state activation |
