ATMEL9260 Mother Board For Industrial Contorl Area

ATMEL9260 Mother Board For Industrial Contorl Area thumbnail-1
ATMEL9260 Mother Board For Industrial Contorl Area photo-1
US$ 114.7 - 200 MOQ: 1 Piece
Key Specifications
Get Latest Price
Package:
BGA
Model Number:
EZ9260-EVB
Type:
Drive IC
Contact Supplier Request Quote Chat Now
Zhejiang Qiyang Intelligent Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Package BGA
Model Number EZ9260-EVB
Type Drive IC
Brand Name Qiyang
Place of Origin Zhejiang, China




ATMEL9260 Mother Board For Industrial Contorl Area Specifications

Core Module Board is designed by 6-floor PCB; the volume is only card size; together with CPU, SDRAM, NandFlash, DataFLash, network; using 3.3V dc power supply, low power consumption; 2-wire 2*30P connectors lead various commonly used interfaces; suitable for the customers those who not plan to design CPU board by themselves next devolop.

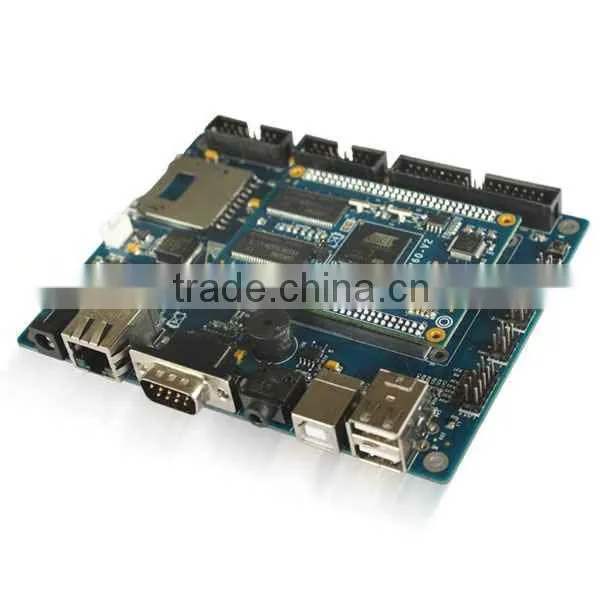

Development(Evaluation) Board a general standard reference design board for EZ9260-EVB, with commonly used interfaces, such as image sensor interface, RS232 serial port, external bus, SPI, PWM, high-speed USB HostDevice, network, SD card, MISC interface(ADC, timer IO, TTL serial port), audio, MIC etc; support +6V~+23V wide range voltage power supply; can provide a complete design material for user to develop or custmize.

Atmel9260 development board Stamp Module Specifications

CPU Processor
• ATMEL AT91SAM9260, ARM926EJ-S Core
• 200MHz

SDRAM Memory
• 64MB SDRAM, 2-piece 4Banks x 4Mbitsx16bits SDRAM

FLASH Storage
• On-board 512K DataFlash (DB45041D)
• On-board 128M*8bits NandFlash (K9F1G08U0B), could change large capacity or industrial chip according to customer's requestc

Interfaces
• 2-piece 2*30PIN, 2.0 spacing connectors, simple, convenient and reliable.

Other Resources
• DM9161 net chip, support 10M/100M Ethernet with MII mode, more compatible than RMII;
• DS1337 clock chip, 32.768RTC clock source, work precisely

PCB Specification & Size
• Using six floors of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 74 x 53 x 1.5mm

Working Parameters
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing

Low Power Consumption
• 3.3V Dc power supply, low power consumption, <1W
Support OS
• Linux2.6.30
• WindowsCE 5.0



ATMEL9260 Mother Board For Industrial Contorl Area

Software & Technical Support

No. Item Function
S1 Switch interface Power switch
J3 CSI image sensor interface Video application development
J4

Debug serial port

 Download, communication
J5 COM1/2 3-wire RS232 serial port
J6 COM3 5-wire RS232 serial port
J7 SD card interface SD card storage
J8 USB Device Use for program download, USB communication
J9 USB Host 1&2 Used for USB host application
J10 Ethernet interface 10M/100M self-adaptive Ethernet
J11 External bus interface Expand external bus equipment
J12 MISC composite interface ADC, timer IO,TTL serial port
J13 SPI interface SPI communication
J14 JTAG interface Simulation, debugging
J15 Audio interface Double channel audio output
J16 Power interface +12V power supply, support +6 ~+253V wide range voltage
K1 Reset button System reset

PCB Specification & Size

• Using four floors of PCB high precision process
• 132 x 100 x 1.5mm

Working Parameters

• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing



Linux Software Features

Cross-compiler arm-2007q1-10-arm-none-linux-gnueabi-i686-pc-linux-gnu.tar.bz2 arm-linux-gcc 4.2
U-boot Version: U-boot 1.3.4 Provided with bootstrap, U-boot source code
Support writing into DataFlash and NandFlash start
Support SAM-BA software with usb writing and TFTP network update
Linux Kernel Version: 2.6.30
RTC driver, save and restore system time after power off Provided with test program and source code
SPI driver Provided with test program and source code
EBI driver Provided with test program and source code
I2C driver Provided with test program and source code
Audio driver Provided with test program and source code
ADC driver Provided with test program and source code
Serial driver Provided with test program and source code
Counter(TC) Provided with test program and source code
Buzzer driver Provided with test program and source code
GPIO driver Provided with test program and source code
USB driver, support mouse, keypad, U disk, WiFi, bluetooth, printer, camera, barcode scanning, etc. Support various USB external devices, provided with debug service
SD card driver Support large capacity storage SD card
File System Jffs2 file system Provided with source code
PC Development Environment Provided with ubuntu 10.10 Linux OS, VMware 7.1.4 virtual machine and supporting development environment build manual Convenient for user to next develop

WindowsCE 6.0 Software Features

Bootloader Support writing into DataFlash and NandFlash start Optional
BSP Source Code
BSP(Open Source ) RTC diver, save and restore system time after power off Provided with test program and source code
Registry saving, support saving registry information when electricity adjusted Convenient for user to debug
SD card driver Biggest support 4G
Audio driver, support audio input/output and MIC input Provided with test program and source code
Nic driver, 10/100M self-adaptive, can be expanded gigabit nic Provided with test program and source code
IO interrupt Provided with test program and source code
Buzzer driver Provided with test program and source code
SPI driver Provided with test program and source code
232, 485 serial driver test Provided with test program and source code
USB driver, support mouse, keypad, U disk, printer, WiFi, bluetooth, camera, barcode scanning, etc. Support various USB external devices, provided with debug service
PC Development Environment Provided with supporting EVC development tools, Wince 5.0 plug-in Convenient for user to next develop

ATMEL9260 Mother Board For Industrial Contorl Area Technical Support:

• The problems that customer encounter in the process of development on the products
• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer(another pay)
• Customized development of back plane, according to customer's requirements(another pay)

Order Infomation

Item EZ9260-EVB
Standard accessories 1)12V/2A power supply (2)1-wire cross serial line (3) CD of DVD development (4)2-wire RS232 serial line (5)1-wire USB download line (6)exquisite packing box
DVD resources Linux Compilers Cross-compiler arm-linux-gcc
Tool software Supporting terminal, writing, download tools
Device manual Main components' datasheet of back plane
User manual About all development and use
Image file Bootstarp, u-boot, kernal, image file of file system
Test source code Test routines and source codes of all interfaces
System source code Including bootstrap, u-boot, kernel, file system and QT source code
Schematic Back plane's schematic in PDF format
Packaging library Component packaging library of evaluation board
Windows CE Tool software Tool software
Device manual Main components'datasheet of back plane
User manual About all development and use
Image file Firstboot, Eboot, NK image file
Test source code Test routines and source codes of all interfaces
BSP package Related BSP board-level supporting package
SDK Related SDK
Schematic Back plane's schematic in PDF format
Packaging library Component packaging library of evaluation board
Module options(another pay) TTL to LVDS module
TTL to VGA module
Sales hotline +86-571-87858811, 87858822

ATMEL9260 Mother Board For Industrial Contorl Area Application:

• Textile Industry, Numeric Control Industry, Automobile Electronics, Industrial Touch Screen Control System, Robot Vision, Media Deal Wireless Application, Digital Applicance, On-board Equipment, Communication Equipment, Network Terminal, etc
