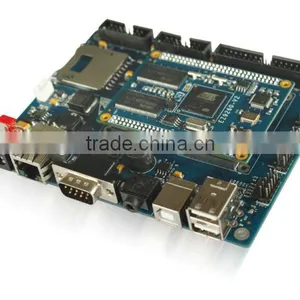

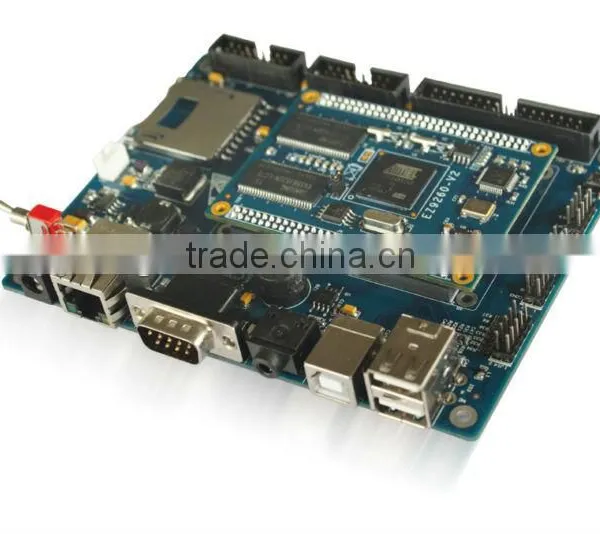

Help CenterSuperior Quality 9260 Embedded ARM Core Board Support Wince & Linux
Related Products
-
ARM926EJ-S ARM Core Board 200MHz CPUNegotiableMOQ: 1 Piece -
CIRRUS LOGIC EP9315 ARM Core Board Support Wince&linuxNegotiableMOQ: 1 Piece
-
High Intelligent Technology 9M10 Arm Core Board Support Wince&linuxNegotiableMOQ: 1 Piece
-
High Quality Cortex-A8 ARM Core Board & Development Board Support Linux/androidNegotiableMOQ: 1 Piece
-
Excellent Performance Atmel 9G45 ARM Core BoardNegotiableMOQ: 1 Piece
Specifications
ARM core board1.ATMEL AT91SAM9260 CPU
2.200MHz ARM926EJ-S core
3.64MB SDRAM 512K Data Flash 128M*8bits Nand Flash
Atmel9260 Embedded Core Board Specifications
Core Module is designed by 6-floor PCB; the volume is only card size; together with CPU, SDRAM, NandFlash, DataFLash, network; 3.3V dc power supply, low power consumption; 2-wire 2*30P connectors lead various commonly used interfaces; suitable for the customers those who not plan to design CPU board by themselves next devolop.
Atmel9260 Embedded Core Module Specifications
CPU Processor
• ATMEL AT91SAM9260, ARM926EJ-S core
• 200MHz
SDRAM Memory
• 64MB SDRAM, 2-piece 4Banks x 4Mbitsx16bits SDRAM
FLASH Storage
• On-board 512K DataFlash (DB45041D)
• On-board 128M*8bits NandFlash (K9F1G08U0B)could change a large capacity or industrial chip according to customer's requirement
Interfaces
• 2-piece 2*30PIN, 2.0 spacing connectors
Other Resources
• DM9161 net chip, support 10M/100M self-adaptive Ethernet with MII mode, more compatible than RMII;
• DS1337 clock chip, 32.768RTC clock source
PCB Specification & Size
• Using six floors of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 74 x 53 x 1.5mm
Working Parameters
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing
Low Power Consumption
• 3.3V Dc power supply, low power consumption, <1W
Support OS
• Linux2.6.30
• WindowsCE 5.0
Embedded Core Board Technical Support:
• The problems that customer encounter in the process of development on the products• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer(another pay)
• Customized development of back plane, according to customer's requirements(another pay)
Atmel9260 Embedded Core Board Order Infomation
| Item | QY-9260P | ||
|---|---|---|---|
| DVD resources | Linux | Compilers | Cross-compiler arm-linux-gcc |
| Tool software | Supporting terminal, writing, download tools | ||
| Device manual | Main components' datasheet of back plane | ||
| User manual | About all development and use | ||
| Image file | Bootstarp, u-boot, kernal, image file of file system | ||
| Test source code | Test routines and source codes of all interfaces | ||
| System source code | Include bootstrap, u-boot, kernel, file system and QT source code | ||
| Schematic | Back plane's schematic in PDF format | ||
| Packaging library | Component packaging library of evaluation board | ||
| Windows CE | Tool software | Supporting terminal, writing, download tools, sync software | |
| Device manual | Main components' datasheet of back plane | ||
| User manual | About all development and use | ||
| Image file | Firstboot, Eboot, NK image file | ||
| Test source code | Test routines and source codes of all interfaces | ||
| BSP package | Related BSP board-level supporting package | ||
| SDK | Related SDK | ||
| Schematic | Back plane's schematic in PDF format | ||
| Packaging library | Component packaging library of evaluation board | ||
| Module options(another pay) | TTL to LVDS module | ||
| TTL to VGA module | |||
| Sales hotline | +86-571-87858811, 87858822 | ||
Atmel9260 Embedded Core Board Application:
• Textile Industry, Numeric Control Industry, Automobile Electronics, Industrial Touch Screen Control System, Robot Vision, Media Deal Wireless Application, Digital Applicance, On-board Equipment, Communication Equipment, Network Terminal, etc.
