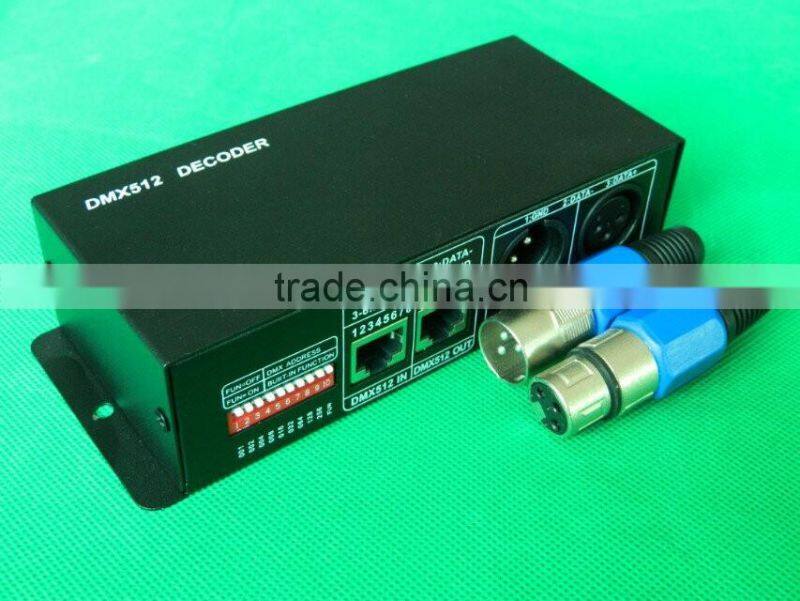

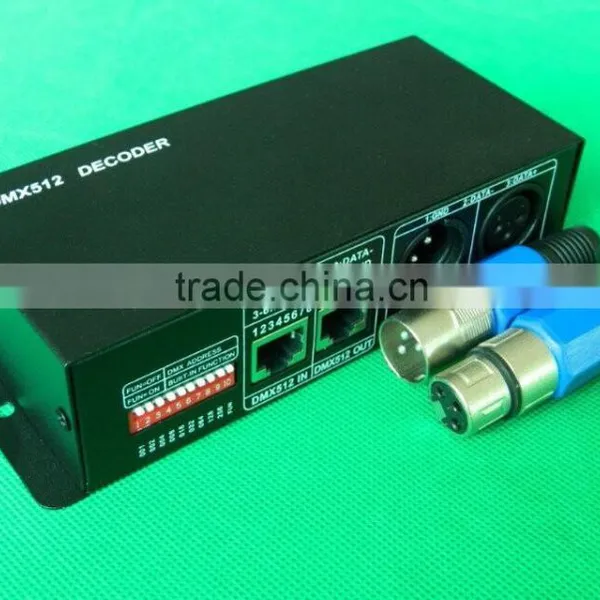

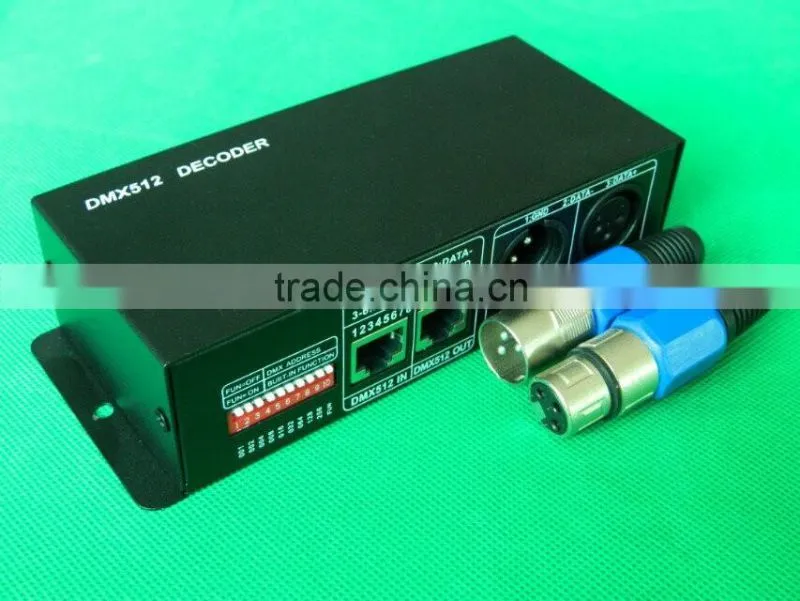

Help CenterDMX Decoder for RGB LED Strip
Related Products
-
Output Power: 12V: <144W, 24V: <288W DMX512 ControllerUS$ 12.5 - 13.5MOQ: 1 Set -
HC201 LED Controller for Pixel Lights,rgb Led Pixel ControlleRUS$ 28 - 30MOQ: 1 Set
-
LED2013 LED Mini Controller 2048 Pixel MAX With Remote WS2812BUS$ 7 - 9MOQ: 1 Set
-
RGBW 1903 LED RGBW Controller UFO WIFI RGBW Controller 12V 24V Smart Phone Control Supported,US$ 25 - 30MOQ: 1 Piece
-
24V LED RGBW Controller Light 7.5w Flexible UFO WIFI RGBW Controller 12V 24V Smart Phone Control Supported,US$ 25 - 30MOQ: 1 Piece
Please Choose right Pictures, if there is any question, please inquiry, we will reply soon.
| Supply voltage: DC5V, 12V ~ 24V optional (ordering the required voltage) Single Dimensions: 166 * 67 * 41mm single package size: 176 * 84 * 50mm Single Weight: 360g single GW: 408g Output: 3 channels connection mode: common anode, Static power consumption: <1W output current: <4A (each channel) or 8A (per loop) Output power: 4A -5V: <60W, 12V: <144W, 24V: <288W Carton size: 570 * 420 * 290cm / 79 units Price: 60 yuan / sets two-year warranty |
| Supply voltage: DC5V, 12V ~ 24V optional (ordering the required voltage) Single Dimensions: 166 * 67 * 41mm single package size: 176 * 84 * 50mm Single Weight: 360g single GW: 408g Output: 3 channels connection mode: common anode, Static power consumption: <1W output current: <4A (each channel) or 8A (per loop) Output power: 8A -5V: <120W, 12V: <288W, 24V: <576W Carton size: 570 * 420 * 290cm / 79 units Price: 60 yuan / sets two-year warranty |
Installation Notice:
1) Make sure the connection is correct according to the diagram
2) Pay attention to the parameters limit of voltage. DO NOT run over the peak value
3) Keep the surface of installation clean and smooth avoid breaking off
4) Avoiding the crook area just the position of LED and other components, in order to protect the product and extend the life span of the product
Advantage:
1.Environment friendly.
2.Long lifespan and Energy-saving.
3.Experienced employees that capable for good service
4.Considerate and kind sales-after service.
5.Strict QC procession, ensure each product is high quality.
Please make an inquiry to get more details about this items,
