LED2013 LED mini controller 2048 Pixel MAX with Remote WS2812B
LED2013-X Mini Wireless Digital controller
Characters:Smallest Size,Powerful ,300 Amazing Digital controller
IC Supported:TM18XX,UCS19XX,TA99XX,UCS6909,WS2811,LPD6803,LPD8806…
Please Mark the IC type and Voltage when you place the Order
A, Basic Parameters:
Working Voltage: DC5V, DC7-12V, DC24V Three Versions (ordering please specify)
Working current: <10 mA
Working temperature: -20 ℃ - 60 ℃
Size: L29 * W12 * H3 mm
Weight: 0.02kg
Effects model: 300 kinds covering all Digital controller effects on the market
Mode of operation: 14 key multifunction RF wireless remote control (433.92MHZ) and four key high-power RF wireless remote control in two versions
The maximum number of Pixels control: 2048Pixels
First Pixels light strip controller from a distance: <= 30 m
Remote distance: 50 meters open (14-key multi-function RF remote control), open 500 meters (4 key power RF remote control)
D, Function and Character
D, Function and Character
Volume 1.2CM × 2.9CM, up to the history of the smallest Wireless Digital controller function
RF integrated on-board integration, sensitive and stable , convenient Introduction
300 kinds of effects, all Digital controller on the market spike
Control 2048 pixels Pixels, comparable to a large controller
16 shows the effect of any combination of features to meet customer demand for self-programming (with 14-key multi-function RF remote control versions have this feature )
14 Key Slim RF remote control (433.92Mhz) or 4 key power RF remote control, multi-function, intuitive operation , remote control distance
Learning function on the remote control code
,7-12V wide voltage input common ( can be customized 5V, 24V)
Static adjustable brightness monochrome effect 32
Automatic playback, adjust Pixels number , speed, power off auto-save feature
Reprovision a master controller wirelessly synchronize all functions ( within 500 meters ) , as detailed in the master Specification
4 KEYS Remote Picture no.2 Instructions:

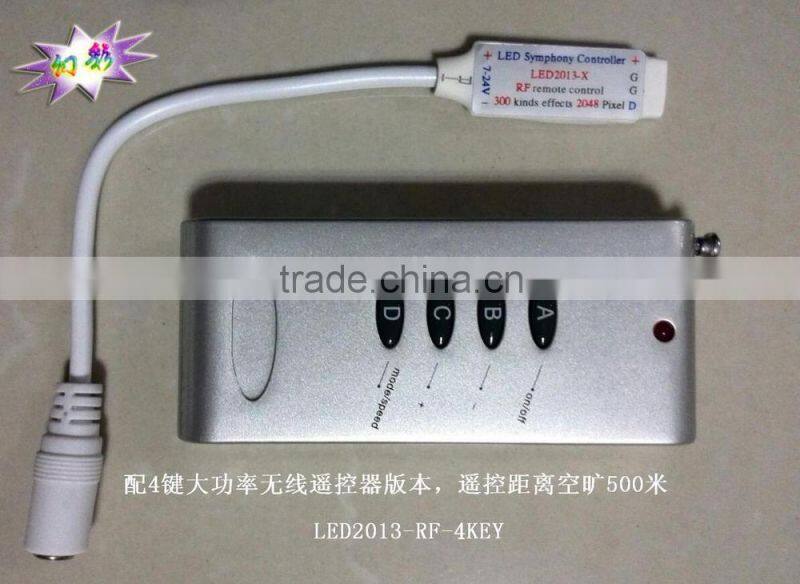

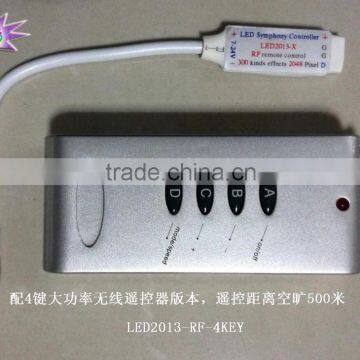

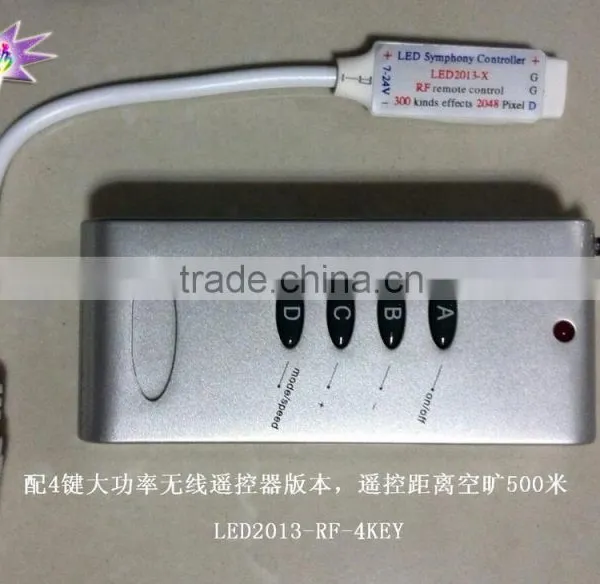

4 power button on the remote control version of the operating instructions :
On / Off: Power on / off
- : Mode - / Speed -
+ : Mode + / Speed +
Mode / Speed: mode regulator / speed adjustment function switch ( when the Mode / Speed and - when pressed simultaneously release the switch to auto-play mode )

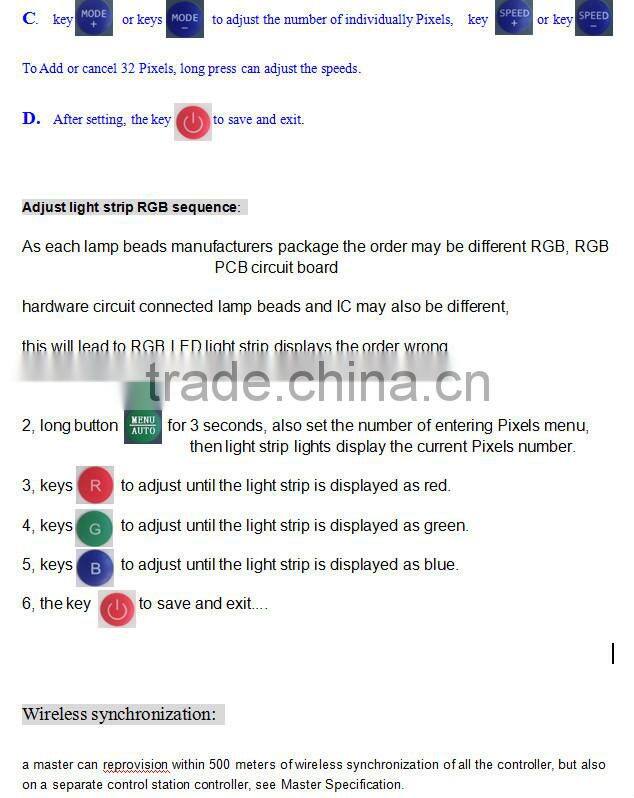

Regulation Pixels number : the off state can regulate Pixels number , press "On / Off" button to shut down, press the "Mode / Speed" key to enter the number of Pixels adjustment menu , then press the " + " and " - " to adjust Pixels number , the adjustment process while holding down the "Mode / Speed" button to quickly adjust . After the adjustment is completed by the "On / Off" button to save and exit.

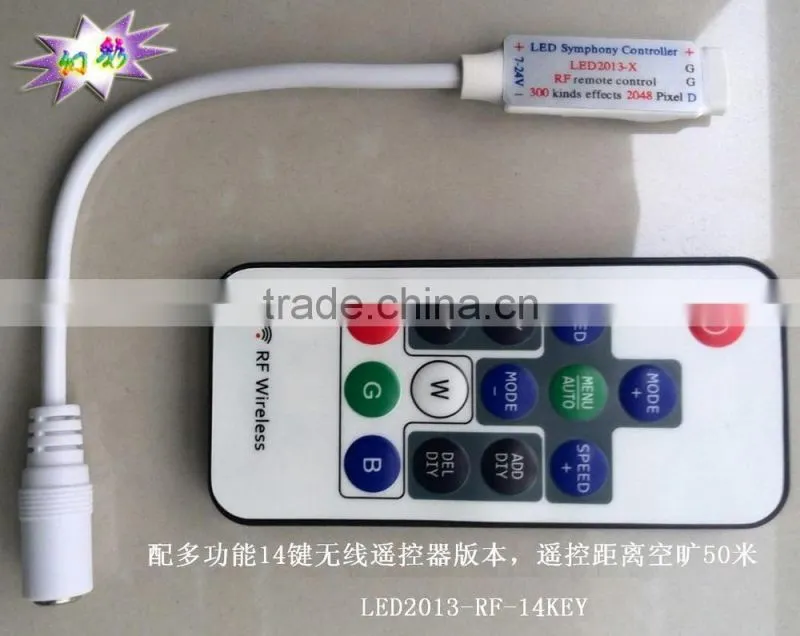

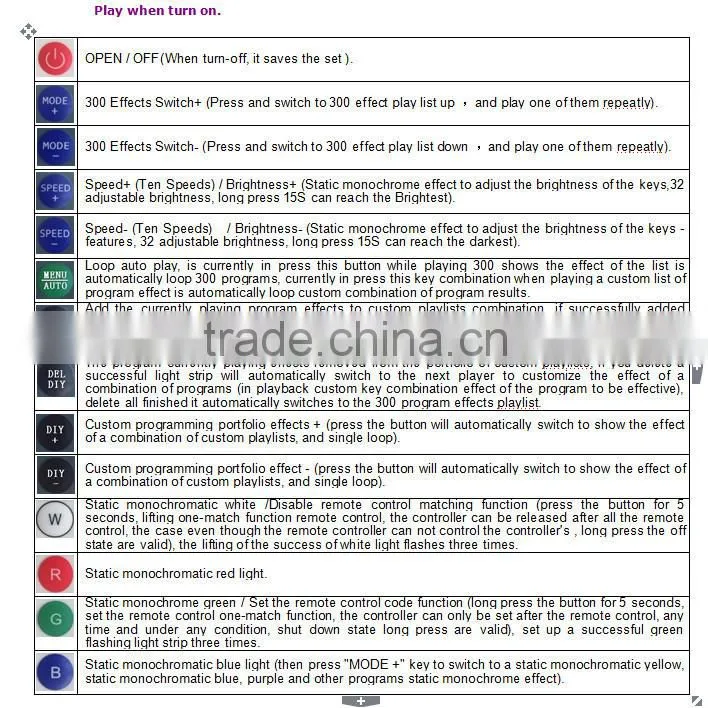

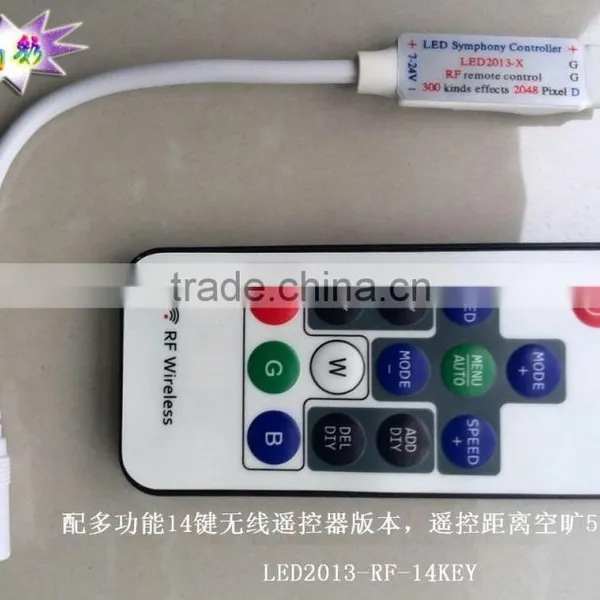

14-key multi-function remote control version of the operating instructions :
