1) Introduction
HCX802SE can control a variety of single-lane drive chip, four output ports, the maximum clock 2.5MHz, controls up to 6144 points, SD card support 32G bytes or more. With infrared remote control and digital display function. Supporting software for the "LED preparation software."
2) the controllable driver chip
LPD6803, LPD8806, LPD6813, LPD1882, LPD1889, LPD6812, LPD1883, LPD1886, DMX512, APA102, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, WS2811, WS2812, TM1803, TM1804, TM1809, TM1812, TM1829, TA9912, TM1913, TM1914, TM1926, WS2801, WS2803, DZ2809, P9813, P9816, SM16716, LD151x, LD153x, MBI6021, MBI6023, MBI6024, INK1003, LX1003, LX2003, LX2006, TLS3001, TLS3002 like.
LED Driver IC type must be set in the computer software in the same time sequence driver chip shared an option.
LPD6813, P9813 can control 4608 points up to 1152 points per port; the other chip to control up to 6144 points per port up to 1536 points.
3) the performance characteristics
1. Four output ports, each port can control up to 1536 points, a total of 6144 points.
2. DC input voltage 5V to 24V.
3. SD card support FAT32, FAT16 format, the maximum capacity of 64G bytes or more, a maximum of 64 DAT file.
4. Adjustable playback speed range is 1-200 frames per second, the clock frequency tuning range is 0.1MHz-2.5MHz.
5. Infrared remote control and digital display.

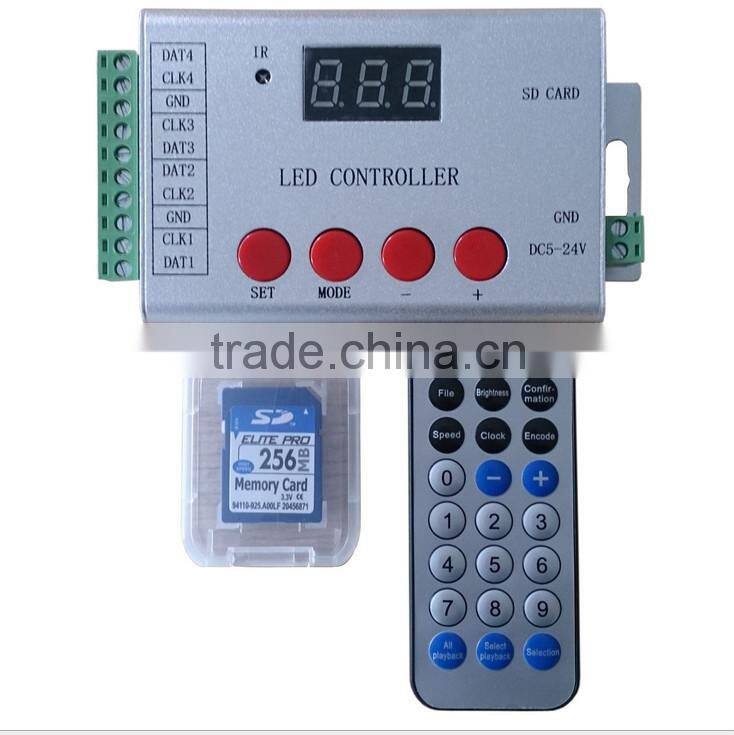

Fourth, the controller interface definitions
4) Specifications
Input voltage: DC5-24V
Power: 1W
Load points: 8192 points
Weight: 75g
Working temperature: -20C ° --85C °
Dimensions: L132 x W71 x H24
Mounting hole spacing: 119mm
Carton Size: L150 x W82 x H38
