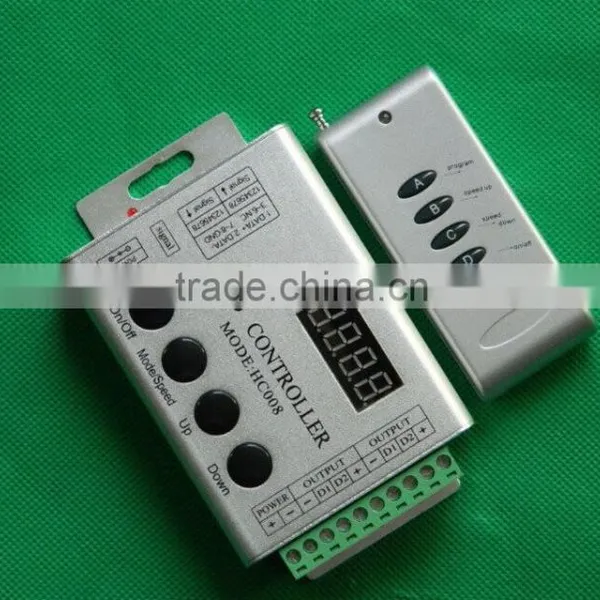

HC008 LED controller for Pixel Lights,rgb led pixel controller,led light chain controler
magic led strip controller, Item number: RL-HC008,
4output ports,
DC5V-24V,
single or master-slaver connection,
With RF wireless panel.
Introduction:
Wireless Synchronous LED Controller (Item number: HC008) is suit for UCS1903, WS2811, TM1812, TM1804 etc) output applications, which drive LED directly. It is widely used in advertising, Club, stage sets, home decorations, etc. It has many advantages such as low price, easy connection and simple to use. It has a memory function. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through wireless remote control. It can also be used as a synchronous controller. That is to say you can synchronously control number of decoders and LED lights. You don’t need to take much time to learn how to program effects because more than 100 program effects are pre-loaded.
The controller does not support SD card. It is composed by two parts: LED controller and RF remote panel.
Technical Parameters:
Working temperature |
-25-60°C |
Supply voltage |
DC5V-24v |
Current |
<60mA |
External dimension |
L137*W70*H25 mm |
Packing size |
L137*W80*H54mm |
Net weight |
180g |
Gross weight |
270g |
Program Effects(pre-loaded) |
133 |
Maximum control points |
4 outputs, each port can control 1,024pixel max, totally can control 4,096 pixels max. |
Controlled IC Type |
Such as theTM1803, TM1804, TM1809, UCS1903etc. (specify the required model on orders) |
