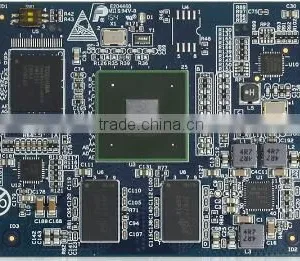

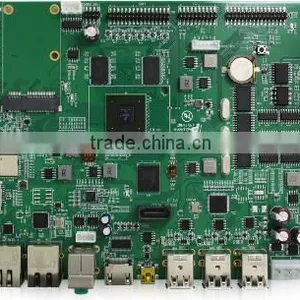

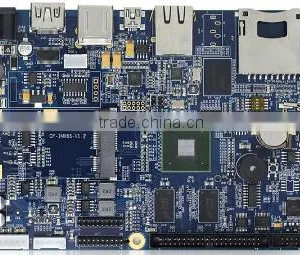

China Best I.mx6 Module Mainboard Electronic Test Board thumbnail-1
China Best I.mx6 Module Mainboard Electronic Test Board thumbnail-2
China Best I.mx6 Module Mainboard Electronic Test Board thumbnail-3
China Best I.mx6 Module Mainboard Electronic Test Board thumbnail-4
China Best I.mx6 Module Mainboard Electronic Test Board thumbnail-5

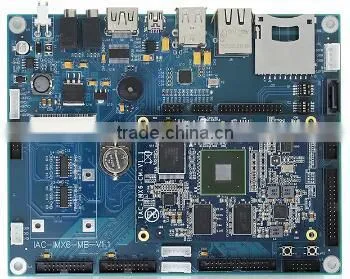

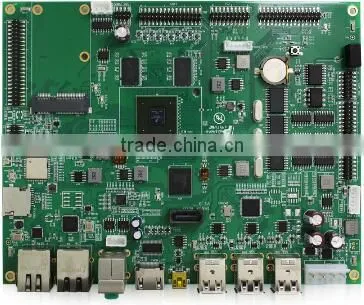

China Best I.mx6 Module Mainboard Electronic Test Board photo-1
China Best I.mx6 Module Mainboard Electronic Test Board photo-2
China Best I.mx6 Module Mainboard Electronic Test Board photo-3
China Best I.mx6 Module Mainboard Electronic Test Board photo-4
China Best I.mx6 Module Mainboard Electronic Test Board photo-5
US$ 100 - 289 MOQ: 1 Piece
Key Specifications
Get Latest Price
Application:
Other, auto electronics
Chipset Manufacturer:
Other, Freescale
Memory Type:
DDR3
Contact Supplier Request Quote Chat Now
Zhejiang Qiyang Intelligent Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Application Other, auto electronics
Chipset Manufacturer Other, Freescale
Memory Type DDR3
Graphics Card Type Integrated
Hard Drive Interface SATA
FSB / HT 1.0GHz
Brand Name QY
Model Number QY-I.MX6S
Place of Origin Zhejiang, China

China best i.mx6 module mainboard electronic test board





China best i.mx6 module mainboard electronic test board

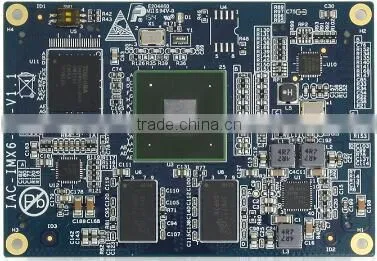

 Product Specifications:



I.MX6 ARM® Cortex™-A9,1.2GHz, compatible with solo/dual/quad core;



1MB L2 Cache,32 KB instruction and data caches, NEON SIMD Media Accelerator;



2D/3D/VG Accelerator,1080P h.264 video hardware codec,support dual 720P video encoding;



1x 20-bit parallel, MIPI-CSI2 (4-channel), three simultaneous inputs;



2-ch HOST USB HSIC, 1-ch OTG and 1-ch HOST USB integrated PHY;



1 industrial gigabit Ethernet MAC(10/100/1000MHZ);



2-ch CAN ports, each channel can up to 1 Mbps, support CAN2.0;



3 SD/MMC 4.4 and 1 SDXC;



5 SPI, 5 UART, 3 I2C, 4 PWM;



I.MX6 Integrated MIPI-HSI interface, 1-ch PCIe2.0 interface;



I.MX6 Dual LVDS interface, support resolution up to 2048*1536;



Freescale PF100 PMU;



High Assurance Boot, cryptographic cipher engines, random number generator, and tamper detection.





China best i.mx6 module mainboard electronic test board

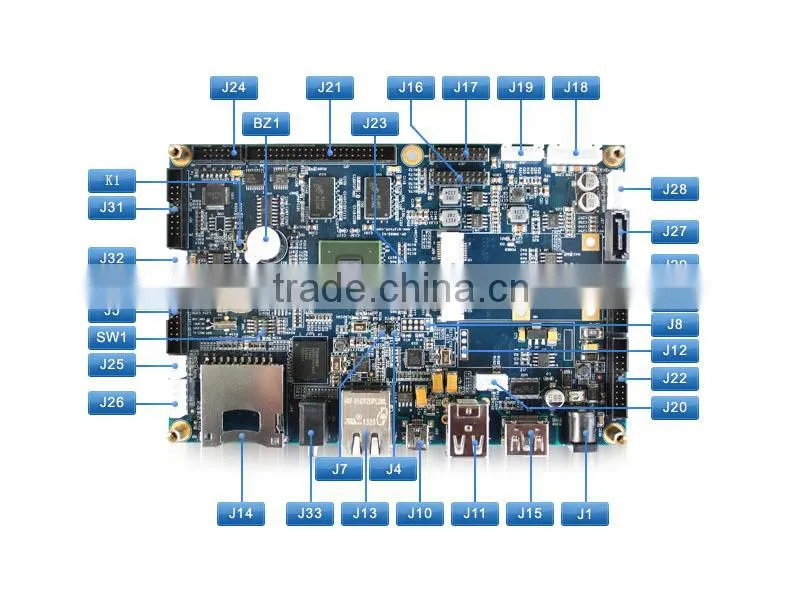

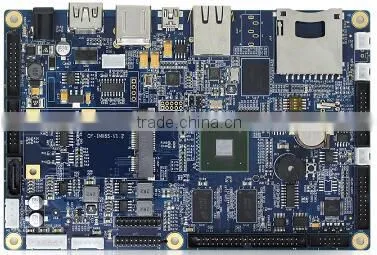

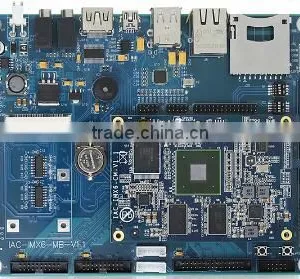

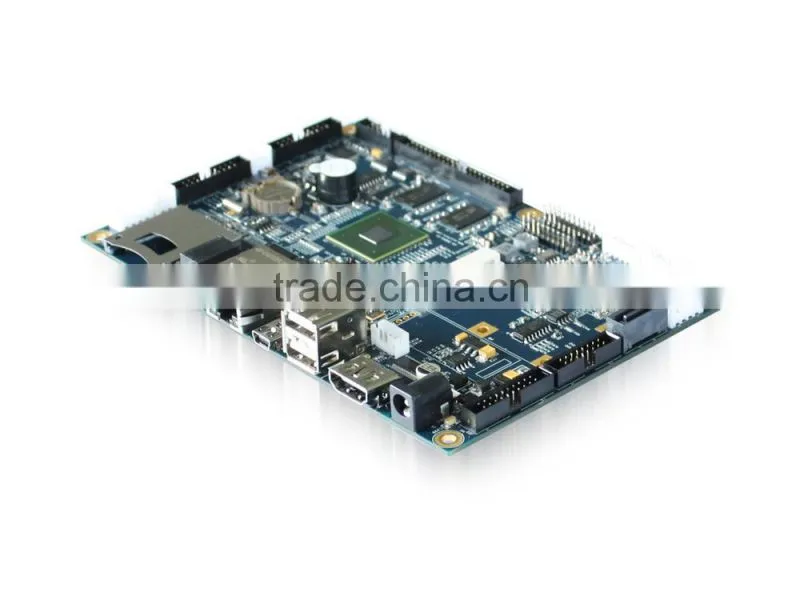

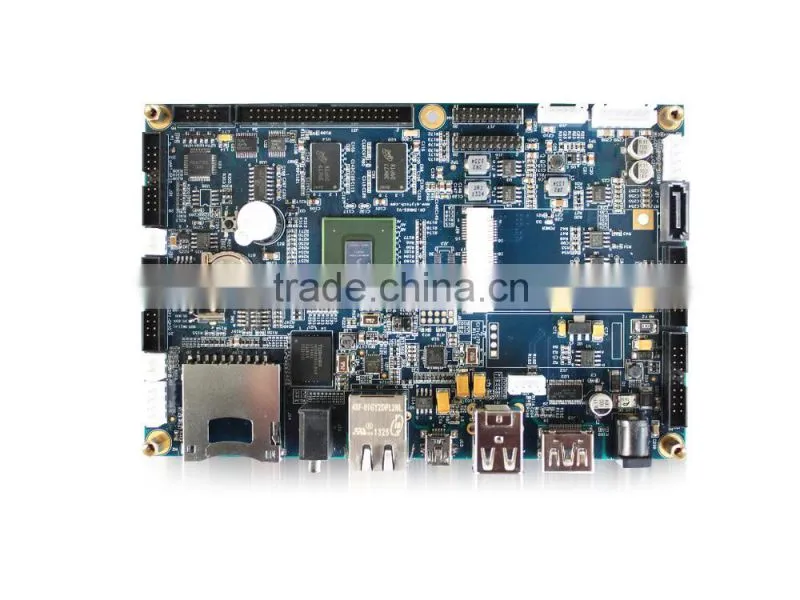

Product Pictures:
China best i.mx6 module mainboard electronic test boardChina best i.mx6 module mainboard electronic test board

China best i.mx6 module mainboard electronic test board



Hardware

Resources

CPU

Freescale i.MX6D processor,ARM® Cortex™-A9 core,1.2GHz

RAM

I.MX6 DDR3 SDRAM,4*256MB, total 1GB

Flash

I.MX6 4GB EMMC

Network

I.MX6 AR8035 Network Chip, adopt RGMII mode, support 10M/100M/1000M

Communication

5-ch RS232, 1 port (com0) as the debug UART, 2-ch RS232 Compatible with RS485

1-ch High speed OTG,4-ch USB, 1-ch connects to MIN_PCIE Interface

2-ch CAN, support CAN2.0, 1-ch TTL Output, 1-ch CAN output

1-ch 10/100/1000Mbps Ethernet port, with ACT/LINK indicator

Display

I.MX6 18-bit TFT-LCD(Compatible with 16, 24 bits), resolution up to 1920 * 1200

VGA, can be connected with universal display

2-ch LCDS Interface, each channel can support resolution up to 1920*1200

HDMI Interface, support HDMI 1.4



Audio

McASP audio interface; binaural output; MIC audio input

Input Interface

I.MX6 4-wire resistive touch panel

I.MX6 Standard I2C Capacitive panel

I.MX6 CAMERA Interface, standard interface support OV5642 camera module

Expansion Interface

I.MX6 MINI_PCIE 2.0

I.MX6 SIM Card

Memory Interface

1-ch SD Card interface

1-ch SATA Hard disk interface, SATAII standard, speed up to 3.0Gbps

Other

I.MX6 Reset circuit, Watch dog, RTC, Buzzer, JTAG interface

Power Input

+12V power supply, can support +4.75V~+18V wide range voltage supply

Resource

Development Tools

Development environment: Virtual Machine VM9.0.2+ubuntu12.04.1

Application layer development debug tool

Cross-compiler

Common terminal development debugging tool

Image File

OS image file, support multiple resolution display

Test Program

Interface using demo test program and test program source code

Source Code

Bootloader, kernel, system source code

Manual

I.MX6 Mainboard User manual,Device Manual

Schematic

I.MX6 Mainboard structure size chart

Electrical Specification

Size

160mm*105mm

PCB

I.MX6 8-layer high precision immersion gold process

Power

Consumption

≤3W

Operation Temperature

-20°C ~ +70°C

Operation Humidity

5% ~ 95%, Non-Condensing



China best i.mx6 module mainboard electronic test board

Application:

• I.MX6 Textile Industry, Numeric Control Industry, Automobile Electronics, Industrial Touch Screen Control System, Robot Vision, Media Deal Wireless Application, Digital Applicance, On-board Equipment, Communication Equipment, Network Terminal, etc.









Company Information

 China best i.mx6 module mainboard electronic test board

 Careful pakaging:

  China best i.mx6 module mainboard electronic test board

 Technique support is our special service for our customer after sales. We also have OEM and ODM service for special requirements.



Payment Terms:  Paypal or any other payment ways you prefer.




Wanna get a free China best i.mx6 module mainboard electronic test board hardware manual?

Wanna get an accurate price of China best i.mx6 module mainboard electronic test board?

Wanna get information of same series products of China best i.mx6 module mainboard electronic test board?
