QY-IMX6S-B2(2)Freescale Cortex-A9 Single Board Computer IMX 6 Dual Core 4USB/AUDIO/4RS232&RS485/2LAN/GPIO/WTD/JTAG/2CA

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Model Number:

QY-IMX6S-B2(2)

Type:

Other, Freescale Cortex-A9 Single Board Computer

Brand Name:

Zhejiang Qiyang Intelligent Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Model Number QY-IMX6S-B2(2)

Type Other, Freescale Cortex-A9 Single Board Computer

Brand Name QY

Place of Origin Zhejiang, China

Specifications

Freescale Cortex-A9 Single Board Computer
1. Freescale Cortex-A9 1.2G CPU Dual/Quad core
2.1G DDR3 SDRAM (2G optional) EMMC

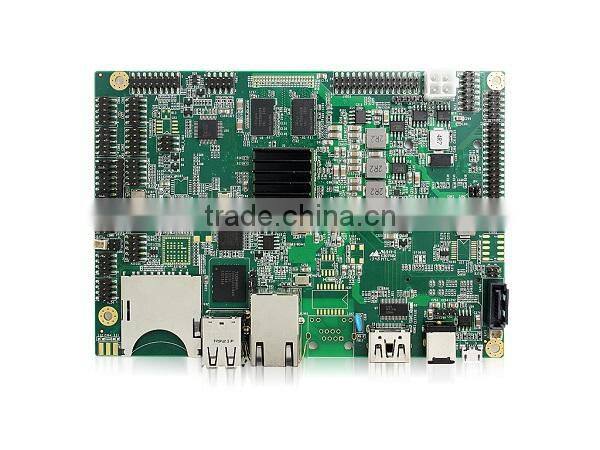

Product Picture:

IMX 6 Single Mainboard (SBC) Product Specification:

QY-IMX6S-B2(2)
(3.5” Freescale ARM Cortex-A9 quad/dual core 1.2G CPU on board SBC, 4USB/AUDIO/4RS232&RS485/2LAN/GPIO/WTD/JTAG/2CAN/Blue Tooth)
Specifications
General
processor	Freescale Cortex-A9 1.2G CPU Dual/Quad core
	l 32K L1 instruction Cache and 1 MB L2 Cache l Cortex-A9 NEON MPE co-processor l Incorporate with VPU GPU3Dv4GPU2Dv2GPUVGASRC accelerator
System Memory	l 1G DDR3 SDRAM (2G optional) on board,32bit l 4G EMMC Flash (/8G/16G/32G optional)
Expansion Interface	CAN
Watchdog Timer	1*32bit WTD
Testing Connector	JTAG
Operation system	Android4.2; Linux2.6.32
I/O Interface		2xLAN			6xUSB	1XSATAII	1XMCU(power control)
		1XSDIO(Boot OS)			1xAudio	6XRS232	1xRS485
		1XHDMI			2XLVDS	1XVGA(RGB)	1X Camera
		1xGPIO (16bit)			1X USB OTG A	2xCAN	EMMC(Boot OS/App.)
Disk Storage		l SATAII 3.0Gbps hard-disk connector support big capacity storage device l SDIO slot support OS booting
COM		6 serial ports, 6 support 4-wire RS232 and 1 support 8-wire 9bit RS485
USB		1 USB2.0 OTG (update) and 6USB host up to 480Mbps
Audio		Audio MUX
Video		10 bit Digital Camera
GPIO		16 routes,8in/8out
Blue tooth		2.4G blue tooth module on board
Chipset			IEEE1588
Speed			2 X 1001000MB
LVDS			Two 24-bit LVDS display port, up to 60fps 1080P decode
HDMI			HDMI 1.4 port
Dimensions (L x W)				146mm*102mm
PCB Layer				8 Layers industrial level , RoHs
Operating temperature				-40~85 degree centigrade / 0~ 60 centigrade
Operating Humidity				5~95 percent relative humidity, non-condense
Power Supply				Single 12V DC
Power consumption				Max 3W
