ATMEL AT91SAM9G45 Support Linux/WinCE ARM Ethernet Board
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
QY
Model Number:
QY-9G45EK
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai/ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CIRRUS LOGIC EP9315 Linux/Andriod ARM Ethernet Board Logic Board 32gbNegotiableMOQ: 1 Piece -
Atmel9260 Cheap Price ARM Development Board With LANNegotiableMOQ: 1 Piece
-
(A5D3X) 256MB DDR2 RAM Cortex-A5 ARM Development Board For Medical DeviceNegotiableMOQ: 1 Piece
-
TI AM 1808 ARM926EJ-S Development Board/128M DDR2 SDRAM/128MB NandFlashUS$ 100 - 200MOQ: 1 Piece
-
ARM926EJ-S Embedded Control Board/linux Embedded Boards/electronic Control BoardUS$ 100 - 200MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
QY
Model Number
QY-9G45EK
ARM Ethernet Board Specifications

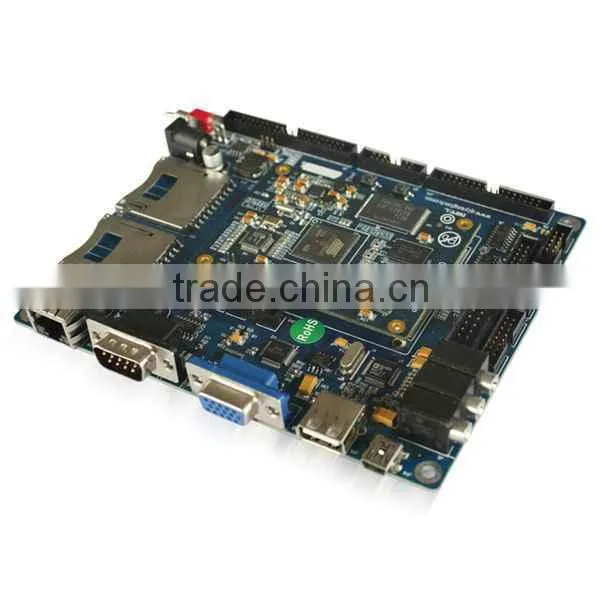

Core Module is designed by 6-floor PCB; the volume is only card size; together with CPU, DDR2 RAM, NandFlash, DataFLash, network; using 5V dc power supply, low power consumption; B to B(2*100)connectors lead various commonly used interfaces; suitable for customer batch use.

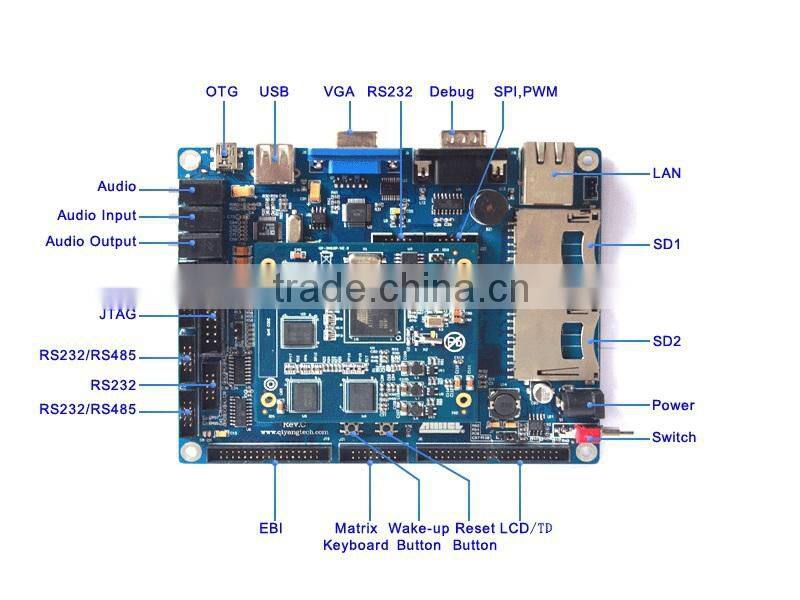

Evaluation Board is a general standard reference design board for QY-9G45P, with commonly used interfaces, such as TFT-LCD, touch screen, VGA, camera, matrix keypad, external bus interface, SPI, PWM, high-speed USB HOSTDevice, SD card, RS232485 serial port, audio, MIC, etc.; support +6V~+25V wide range voltage power supply; can provide a complete design material for user to develop or custmize.
ARM Ethernet Board Specification
CPU Processor
• ATMEL AT91SAM9G45, ARM926EJ-S Core
• 400MHz
DDR RAM Memory
• 128MB DDR2 RAM, 133MHz, 32bit data bus
FLASH Storage
• On-board 512K DataFlash (DB45041D)
• On-board 128M*8bits NandFlash (K9F1G08U0B)could change a large capacity or industrial chip according to customer's requirement
Interfaces
• 2*100 pin 0.8mm spacing B to B(the connectors are 350°C high temperature-tested and seismic-tested)
Other Onboard Resources
• DM9161 net chip, support 10M/100M Ethernet with MII mode, more compatible than RMII;
• 1.8V, 3.3V, 5.0V voltage input
PCB Specification & Size
• Using six floors of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 74 x 53 x 1.5mm
Working Parameters
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing
Low Power Consumption
• 5v Dc power supply, low power consumption, <1W
Support OS
• Linux2.6.30 + QT2.3/QT4
• WindowsCE 6.0
ARM Ethernet Board software & Technical Support
| Item | Content | Function |
|---|---|---|
| Cross-compiler | arm-2007q1-10-arm-none-linux-gnueabi-i686-pc-linux-gnu.tar.bz2 | arm-linux-gcc 4.2 |
| U-boot | Version: U-boot 1.3.4 | Provided with bootstrap, U-boot source code |
| Support writing into DataFlash and NandFlash start | ||
| Support SAM-BA software with usb writing and TFTP network update | ||
| Linux Kernel | Version: 2.6.30 | |
| RTC driver, save and restore system time after power off | Provided with test program and source code | |
| SPI driver | Provided with test program and source code | |
| EBI driver | Provided with test program and source code | |
| I2C driver | Provided with test program and source code | |
| Audio driver | Provided with test program and source code | |
| LCD driver, supporting 320*240, 640*480, 800*480, 800*600, 1024*768 resolution | Provided special LCD with debug service | |
| Touch screen driver, supporting 4-wire resistive screen | Provided with test program and source code | |
| Serial driver | Provided with test program and source code | |
| PWM driver | Provided with test program and source code | |
| Buzzer driver | Provided with test program and source code | |
| GPIO driver | Provided with test program and source code | |
| 8*8 matrix keypad driver | Provided with test program and source code | |
| USB driver, support mouse, keypad, U disk, WiFi, bluetooth, printer, camera, barcode scanning, etc. | Support various USB external devices, provided with debug service | |
| SD card driver | Support large capacity storage SD card | |
| File System | Jffs2 file system | Provided with source code |
| QT Routine | QT development environment | QT routine |
| PC Development Environment | Provided with ubuntu 10.10 Linux OS, VMware 7.1.4 virtual machine and supporting development environment build manual | Convenient for user to next develop |
Linux Software Features
WindowsCE 6.0 Software Features
| Bootloader | Support writing into DataFlash and NandFlash start | Optional |
| Support user-defined boot logo | Up to 1024*768 resolution 24 bmp image | |
| BSP Source Code | ||
| BSP Open Source
| RTC diver, save and restore system time after power off; | Provided with test program and source code |
| Registry saving,support saving registry information when electricity adjusted; | Convenient for user to debug | |
| LCD driver, support 320*240, 640*480, 800*480, 800*600, 1024*768 resolution; | Provided special LCD with debug service | |
| Touch screen driver, support 4-wire resistive screen; | Provided with test program and source code | |
| SD card driver, support 2-line SD card; | Biggest support 4G | |
| Audio driver, support audio input/output and MIC input; | Provided with test program and source code | |
| Nic driver, 10/100M self-adaptive, can be expanded gigabit nic; | Provided with test program and source code | |
| PWM driver | Provided with test program and source code | |
| I2C driver | Provided with test program and source code | |
| SPI driver | Provided with test program and source code | |
| 232, 485 serial driver test | Provided with test program and source code | |
| Support 8*8 matrix keypad, also is GPIO | Provided with test program and source code | |
| USB driver, support mouse, keypad, U disk, printer, WiFi, bluetooth, camera, barcode scanning, etc. | Support various USB external devices, provided with debug service | |
| PC Development Environment | Provided with supporting VS.NET 2005 development tools, Wince 6.0 plug-in | Convenient for user to next develop |
ARM Developer Board Technical Support:
• The problems that customer encounter in the process of development on the products
• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer(another pay)
• Customized development of back plane, according to customer's requirements(another pay)
• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer(another pay)
• Customized development of back plane, according to customer's requirements(another pay)
Company Information
Packaging & Shipping
Order Information
| Item | QY-9G45EK | ||
|---|---|---|---|
| Standard accessories | 1)12V/2A power supply (2)1-wire cross serial line (3) CD of DVD development (4)4-wire RS232 serial line (5)miniUSB cable (6)exquisite packing box | ||
| DVD resources | Linux | Compilers | Cross-compiler arm-linux-gcc |
| Tool software | Supporting terminal, writing, download tools | ||
| Device manual | Main component's datasheet of back plane | ||
| User manual | About all development and use | ||
| Image file | Bootstarp, u-boot, kernal, image file of file system | ||
| Test source code | Test routines and source codes of all interfaces | ||
| System source code | Including bootstrap, u-boot, kernel, file system and QT source code | ||
| Schematic | Back plane's schematic in PDF format | ||
| Packaging library | Component packaging library of evaluation board | ||
| Windows CE | Tool software | Supporting terminal, writing, download tools, sync software | |
| Device manual | Main components' datasheet of back plane | ||
| User manual | About all development and use | ||
| Image file | Firstboot, Eboot, NK image file | ||
| Test source code | Test routines and source codes of all interfaces | ||
| BSP package | Related BSP board-level supporting package | ||
| SDK | Related SDK | ||
| Schematic | Back plane's schematic in PDF format | ||
| Packaging library | Component packaging library of evaluation board | ||
| LCD options(another pay) | 4.3' LCD module + 4-wire resistive touch screen + USB cable | ||
| 5.6' LCD module + 4-wire resistive touch screen + USB cable | |||
| 6.4' LCD+ 4-wire resistive touch screen + USB cable + inverter | |||
| 7' LCD module + 4-wire resistive touch screen + USB cable | |||
| 8' LCD module + 4-wire resistive touch screen + USB cable | |||
| 10.4' LCD+ 4-wire resistive touch screen + USB cable + inverter | |||
| Module options(another pay) | TTL to LVDS module | ||
| TTL to VGA module | |||
| Sales hotline | +86-571-87858811, 87858822 | ||
Application:
• Textile Industry, Numeric Control Industry, Automobile Electronics, Industrial Touch Screen Control System, Robot Vision, Media Deal Wireless Application, Digital Applicance, On-board Equipment, Communication Equipment, Network Terminal, etc
.
Our Services
Technique support is our special service for our customer after sales. We also have OEM and ODM service for special requirements.
