Atmel9260 Cheap Price ARM Development Board With LAN

Zhejiang Qiyang Intelligent Technology Co., Ltd.
Atmel9260 Cheap Price ARM Development Board With LAN thumbnail-1
Atmel9260 Cheap Price ARM Development Board With LAN photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
D/C:
EZ9260-EVB
Package:
1PC
Model Number:
EZ9260-EVB
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI\NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
D/C EZ9260-EVB
Package 1PC
Model Number EZ9260-EVB
Type Other, Atmel
Brand Name QY
Place of Origin Zhejiang, China



ARM Development Board Specifications

Core Module Board is designed by 6-floor PCB; the volume is only card size; together with CPU, SDRAM, NandFlash, DataFLash, network; using 3.3V dc power supply, low power consumption; 2-wire 2*30P connectors lead various commonly used interfaces; suitable for the customers those who not plan to design CPU board by themselves next devolop.

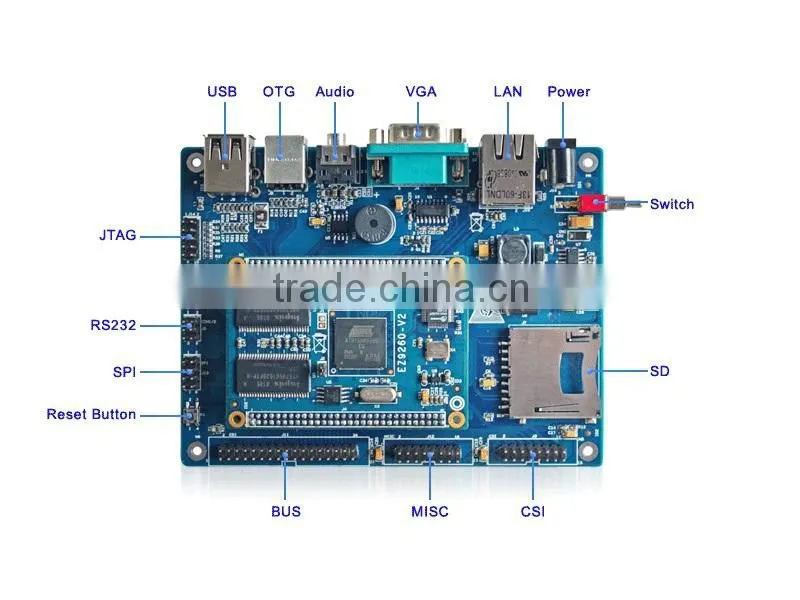

Development(Evaluation) Board a general standard reference design board for EZ9260-EVB, with commonly used interfaces, such as image sensor interface, RS232 serial port, external bus, SPI, PWM, high-speed USB HostDevice, network, SD card, MISC interface(ADC, timer IO, TTL serial port), audio, MIC etc; support +6V~+23V wide range voltage power supply; can provide a complete design material for user to develop or custmize.

Cheap Price ARM Development Board Stamp Module Specifications

CPU Processor
• ATMEL AT91SAM9260, ARM926EJ-S Core
• 200MHz

SDRAM Memory
• 64MB SDRAM, 2-piece 4Banks x 4Mbitsx16bits SDRAM

FLASH Storage
• On-board 512K DataFlash (DB45041D)
• On-board 128M*8bits NandFlash (K9F1G08U0B), could change large capacity or industrial chip according to customer's requestc

Interfaces
• 2-piece 2*30PIN, 2.0 spacing connectors, simple, convenient and reliable.

Other Resources
• DM9161 net chip, support 10M/100M Ethernet with MII mode, more compatible than RMII;
• DS1337 clock chip, 32.768RTC clock source, work precisely

PCB Specification & Size
• Using six floors of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 74 x 53 x 1.5mm

Working Parameters
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing

Low Power Consumption
• 3.3V Dc power supply, low power consumption, <1W
Support OS
• Linux2.6.30
• WindowsCE 5.0



ARM Development Board Software & Technical Support

Atmel9260 Cheap Price ARM Development Board With LAN


Development Board PCB Specification & Size

•Using four floors of PCB high precision process
132 x 100 x 1.5mm

Development Board Working Parameters

• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing



 Linux Software Features

Cross-compilerarm-2007q1-10-arm-none-linux-gnueabi-i686-pc-linux-gnu.tar.bz2arm-linux-gcc 4.2
U-bootVersion: U-boot 1.3.4Provided with bootstrap, U-boot source code
Support writing into DataFlash and NandFlash start
Support SAM-BA software with usb writing and TFTP network update
Linux KernelVersion: 2.6.30
RTC driver, save and restore system time after power offProvided with test program and source code
SPI driverProvided with test program and source code
EBI driverProvided with test program and source code
I2C driverProvided with test program and source code
Audio driverProvided with test program and source code
ADC driverProvided with test program and source code
Serial driverProvided with test program and source code
Counter(TC)Provided with test program and source code
Buzzer driverProvided with test program and source code
GPIO driverProvided with test program and source code
USB driver, support mouse, keypad, U disk, WiFi, bluetooth, printer, camera, barcode scanning, etc.Support various USB external devices, provided with debug service
SD card driverSupport large capacity storage SD card
File SystemJffs2 file systemProvided with source code
PC Development EnvironmentProvided with ubuntu 10.10 Linux OS, VMware 7.1.4 virtual machine and supporting development environment build manualConvenient for user to next develop

 WindowsCE 6.0 Software Features

BootloaderSupport writing into DataFlash and NandFlash startOptional
BSP Source Code
BSP(Open Source )RTC diver, save and restore system time after power offProvided with test program and source code
Registry saving, support saving registry information when electricity adjustedConvenient for user to debug
SD card driverBiggest support 4G
Audio driver, support audio input/output and MIC inputProvided with test program and source code
Nic driver, 10/100M self-adaptive, can be expanded gigabit nicProvided with test program and source code
IO interruptProvided with test program and source code
Buzzer driverProvided with test program and source code
SPI driverProvided with test program and source code
232, 485 serial driver testProvided with test program and source code
USB driver, support mouse, keypad, U disk, printer, WiFi, bluetooth, camera, barcode scanning, etc.Support various USB external devices, provided with debug service
PC Development EnvironmentProvided with supporting EVC development tools, Wince 5.0 plug-inConvenient for user to next develop

ARM Development Board Technical Support:

• The problems that customer encounter in the process of development on the products
• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer(another pay)
• Customized development of back plane, according to customer's requirements(another pay)

Cheap Price ARM Development Board Order Information

ItemEZ9260-EVB
Standard accessories1)12V/2A power supply (2)1-wire cross serial line (3) CD of DVD development (4)2-wire RS232 serial line (5)1-wire USB download line (6)exquisite packing box
DVD resourcesLinuxCompilersCross-compiler arm-linux-gcc
Tool softwareSupporting terminal, writing, download tools
Device manualMain components' datasheet of back plane
User manualAbout all development and use
Image fileBootstarp, u-boot, kernal, image file of file system
Test source codeTest routines and source codes of all interfaces
System source codeIncluding bootstrap, u-boot, kernel, file system and QT source code
SchematicBack plane's schematic in PDF format
Packaging libraryComponent packaging library of evaluation board
Windows CETool softwareTool software
Device manualMain components'datasheet of back plane
User manualAbout all development and use
Image fileFirstboot, Eboot, NK image file
Test source codeTest routines and source codes of all interfaces
BSP packageRelated BSP board-level supporting package
SDKRelated SDK
SchematicBack plane's schematic in PDF format
Packaging libraryComponent packaging library of evaluation board
Module options(another pay)TTL to LVDS module
TTL to VGA module
Sales hotline+86-571-87858811, 87858822

 Application:

• Textile Industry, Numeric Control Industry, Automobile Electronics, Industrial Touch Screen Control System, Robot Vision, Media Deal Wireless Application, Digital Applicance, On-board Equipment, Communication Equipment, Network Terminal, etc.
