ATMEL AT91SAM9M10 ARM Linux Embedded Industrial Control PCB

Zhejiang Qiyang Intelligent Technology Co., Ltd.

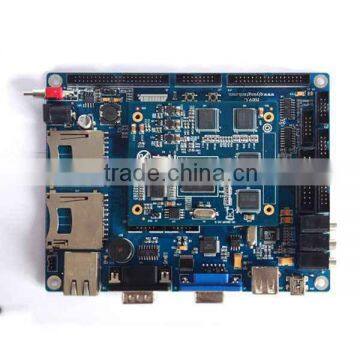

ATMEL AT91SAM9M10 ARM Linux Embedded Industrial Control PCB photo-1

Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

D/C:

QY-9M10EK

Package:

1pc

Model Number:

QY-9M10EK

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

D/C QY-9M10EK

Package 1pc

Model Number QY-9M10EK

Type Other

Brand Name QY

Place of Origin Zhejiang, China

Industrial Control PCB Specifications

Core Module is designed by 6-floor PCB; the volume is only card size(74*53mm); together with CPU, 128M DDR2 RAM,128M Nand Flash, 512K DataFLash, 10/100Mbps; using 5V dc power supply, low power consumption and high performance power management function, to achieve the necessary CPU core voltage conversion; Industry standard design, through the high temperature resistant B to B (2*100) connector leads to a variety of commonly used interface resources, in order to offer fast and the secondary development of use for those who do not intend to design the CPU plate themselves, and it’s suitable for the batch used by the user.

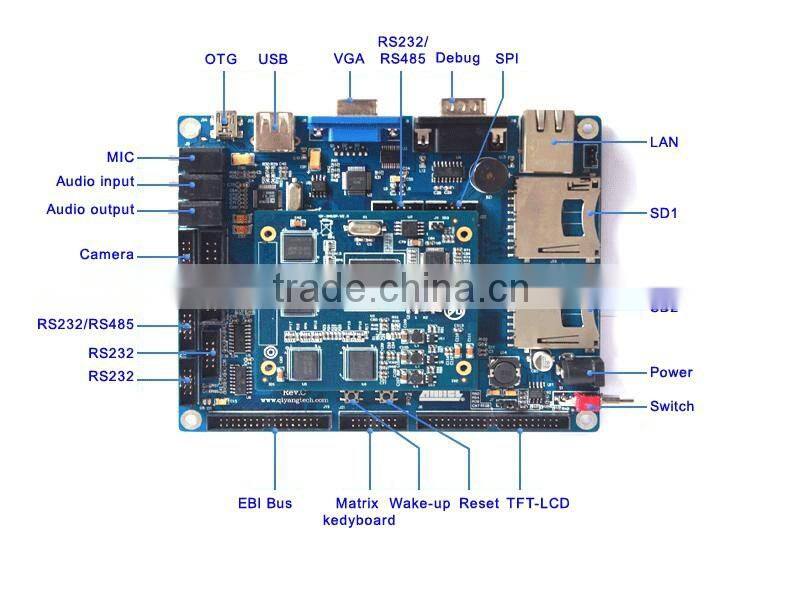

Development Board is a general standard reference design board for QY-9M10P, with commonly used interfaces, such as TFT-LCD(1280*860), touch screen, VGA, camera, 8*8 matrix keypad, external bus interface, SPI, JTAG, 1 high-speed USB2.0 Device, 1 high-speed USB2.0 Host, 2 SD card storage interfaces, 1 debug serial port , 4 RS232 serial ports and audio input, output, MIC interface, with professional reset chip, reset switch; Support +6V~+23V wide range voltage power supply; can provide a complete design material for user to develop or customize.

Chip introduction

AT91SAM9M10 chip, the combination of the functional interface and high speed data connection, including LCD controller, resistive touch screen, the camera interface, audio, 10/100 M Ethernet, high-speed USB and SDIO, etc. As the processor running at 400 MHZ and multiple rates more than 100 MBPS peripherals, it use high performance and bandwidth network or local storage media to provide a good user experience.

Industrial Control PCB Core module Specification

CPU Processor
• ATMEL AT91SAM9M10,ARM926EJ-S Core
• 400MHz

DDR RAM Memory
• 128MB DDR2 RAM,133MH:,32bit data bus

FLASH Storage
• On-board 512K DataFlash (DB45041D)
• On-board 128M*8bits NandFlash (K9F1G08U0B) could change a large capacity or industrial chip according to customer's requirement.

Interfaces
• 2*100 pin 0.xmm spacing B to B (the connectors are 350°C high temperature-tested and seismic-tested)

Other Onboard Resources
• DM9161 net chip, support 10M/100M Ethernet with MII mode, more compatible than RMII;
• 1.8V, 3.3V, 5.0V voltage input

PCB Specification & Size
• Using six floors of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 74 x 53 x 1.5mm

Working Parameters
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing

Low Power Consumption
• 5v Dc power supply, low power consumption, <1W

Support OS
• Linux2.6.30 + QT2.3 / QT4
• WindowsCE 6.0

Industrial Control PCB Software & Technical Support

Cross-compiler	arm-2007q1-10-arm-none-linux-gnueabi-i686-pc-linux-gnu.tar.bz2	arm-linux-gcc 4.2
U-boot	Version: U-boot 1.3.4	Provided with bootstrap, U-boot source code
	Support writing into DataFlash and NandFlash start
	Support SAM-BA software with usb writing and TFTP network update
Linux Kernel	Version: 2.6.30
	RTC driver, save and restore system time after power off	Provided with test program and source code
	SPI driver	Provided with test program and source code
	EBI driver	Provided with test program and source code
	I2C driver	Provided with test program and source code
	Audio driver	Provided with test program and source code
	LCD driver, support 320240, 640480, 800480, 800600, 1024*768 resolution;	Provided special LCD with debug service
	Touch screen driver, supporting 4-wire resistive screen	Provided with test program and source code
	Serial driver	Provided with test program and source code
	PWM driver	Provided with test program and source code
	Buzzer driver	Provided with test program and source code
	GPIO driver	Provided with test program and source code
	8*8 matrix keypad driver	Provided with test program and source code
	USB driver, support mouse, keypad, U disk, WiFi, bluetooth, printer, camera, barcode scanning, etc.	Support various USB external devices, provided with debug service
	SD card driver	Support large capacity storage SD card
File System	Jffs2 file system	Provided source code
QT Routine	QT development environment	QT routine
PC Development Environment	Provided with ubuntu 10.10 Linux OS, VMware 7.1.4 virtual machine and supporting development environment build manual	Convenient for user to next develop

Linux Software Features

WindowsCE 6.0 Software Features

Bootloader	Support writing into DataFlash and NandFlash start	Optional
Bootloader	Support user-defined boot logo	1024*768 resolution, 24 bmp image
BSP Source Code
BSP Open Source	RTC driver, save and restore system time after power off	Provided with test program and source code
	Registry saving, support saving registry information when electricity adjusted	Convenient for user to debug
	LCD driver, support 320240, 640480, 800480, 800600, 1024*768 resolution;	Provided special LCD with debug service
	Touch screen driver, supporting 4-wire resistive screen	Provided with test program and source code
	SD card driver, supporting 2-wire SD card	Largest capacity support 4G
	Audio driver, support audio input/output and MIC input	Provided with test program and source code
	Nic driver, 10/100M self-adaptive, can be expanded gigabit nic	Provided with test program and source code
	PWM driver	Provided with test program and source code
	I2C driver	Provided with test program and source code
	SPI driver	Provided with test program and source code
	232, 485 serial driver test	Provided with test program and source code
	support 8*8 matrix keypad, also can used as GPIO	Provided with test program and source code
	USB driver, support mouse, keypad, U disk, printer, WiFi, bluetooth, camera, barcode scanning, etc.	Support various USB external devices, provided with debug service
	PC Development Environment	Provided with supporting VS.NET 2005 development tools, Wince 6.0 plug-in	Convenient for user to next develop

Order Information

Item	QY-9M10EK
Standard accessories	(1)12V/2A power supply (2)1-wire cross serial line (3) CD of DVD development (4)4-wire RS232 serial lines (5)mini cable (6)packing box
DVD resources	Linux	Compilers	Cross-compiler arm-linux-gcc
		Tool software	Supporting terminal, writing, download tools
		Device manual	Main components' datasheet of back plane
		User manual	About all development and use
		Image file	Image file of bootstarp, u-boot, kernel and file system
		Test source code	Test routines and source codes of all interfaces
		System source code	Including bootstrap, u-boot, kernel,?file system and QT source code
		Schematic	Back plane's schematic in PDF format
		Packaging library	Component packaging library of evaluation board
	Windows CE	Tool software	Supporting terminal, writing, download tools, sync software
		Device manual	Main components' datasheet of back plane
		User manual	About all development and use
		Image file	Firstboot, Eboot, NK image file
		Test source code	Test routines and source codes of all interfaces
		BSP package	Related BSP board-level supporting package
		SDK	Related SDK
		Schematic	Back plane's schematic in PDF format
		Packaging library	Component packaging library of evaluation board
LCD options(another pay)	4.3'LCD module + 4-wire resistive touch screen + USB cable
	5.6'LCD module + 4-wire resistive touch screen + USB cable
	6.4'LCD + 4-wire resistive touch screen + USB cable + inverter
	7'LCD module + 4-wire resistive touch screen + USB cable
	8'LCD module + 4-wire resistive touch screen + USB cable
	10.4'LCD + 4-wire resistive touch screen + USB cable + inverter
Module options(another pay)	TTL to LVDS module
Module options(another pay)	TTL to VGA module
Sales hotline	86-571-87858811, 87858822

Application:

• Textile Industry, Numeric Control Industry, Automobile Electronics, Industrial Touch Screen Control System, Robot Vision, Media Deal Wireless Application, Digital Applicance, On-board Equipment, Communication Equipment, Network Terminal, etc.
