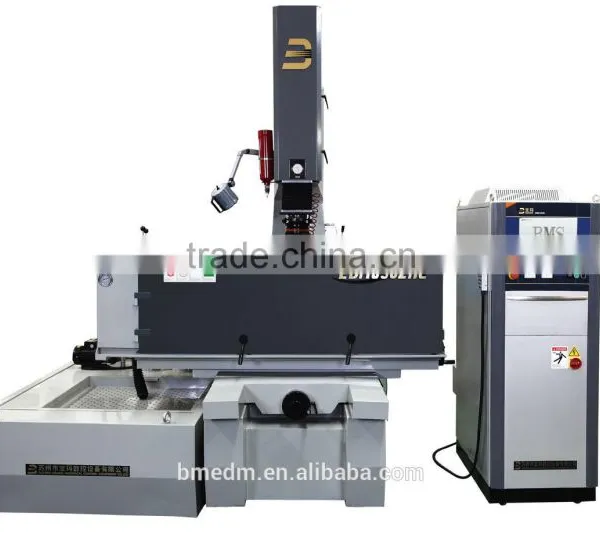

Quality SInker EDM Machine

Name: Quality SInker EDM Machine
Brand: Baoma
SKU: 106969873
Availability: InStock

US$ 1.1111 - 58,888 MOQ: 1 Set

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Baoma

Model Number:

EDM650ZNC

Suzhou Baoma Numerical Control Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port of China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name Baoma

Model Number EDM650ZNC

Condition New

After-sales Service Provided Engineers available to service machinery overseas

Specifications

ZNC Sinker EDM, Die sinking machine
Finish: Ra<0.4um
Current: 60/100A
Max. Speed: 800mm3/Min

Parameters		UNIT	EDM650ZNC
Working Tank (LxWxH)		mm	1780 x 950 x 600

Table Size (LxW)		mm	1100 x 650
Travel Size	X	mm	650
	Y	mm	550
	Spindle Travel(Z)	mm	300
	Auxiliary Travel(Z)	mm	300
Distance between Spindle Nose to Work Table	Min.	mm	205
Distance between Spindle Nose to Work Table	Max.	mm	790
Max. Table Load (Workpiece weight)		mm	2800
Max. Spindle Hold (Electrode weight)		kg	250
Oil Tank		L	1300
Oil Tank Dimension (LxWxH)		mm	2000 x 1250 x 530
Control Method			DC (Japan SANYO)
Rated Current		A	100
Machine Dimension (LxWxH)		mm	2800 x 2100 x 2800
Machine Weight		kg	3500

Max. Working Current	Best Speed / Efficiency	Best Electrode Loss	Best Surface Finishing	Input Power
100A	700 mm³/ min.	≤0.3%	Ra≤0.2um	10 KVA

Items		Resualt
Flatness of the workbench		0.03mm / 1000
X Axis Movement Straightness	in Y-X plane	0.015/ 500
X Axis Movement Straightness	in Z-X plane	0.015 / 500
Y Axis Movement Straightness	in X-Y plane	0.015 / 500
Y Axis Movement Straightness	in Z-Y plane	0.015 / 500
Z- Axis Movement Straightness (Spindle Perpendicularity )	move on X axis	0.02 / 200
Z- Axis Movement Straightness (Spindle Perpendicularity )	move on Y axis	0.02 / 200
Parallelism of work table	move on X axis	0.015 / 300
Parallelism of work table	move on Y axis	0.015 / 300
X-Y Axis Squareness		0.015 / 500


Resine Sand Casting	Machine Body : HT250
Resine Sand Casting	Work Table: HT300
X/Y Axis:	Manual Hand Wheel
	"TEFLON" face V type Hard way
	Precision Ball Screw

Z Axis:	JANPAN SANYO DC Servo
	TAIWAN "ABBA" V type Hard Way+ T Screw
	JAPAN NSK Bearing

Universal	Italy GRUNDFOS or Taiwan WALRUS Oil Pump
	Taiwan Automatic Fire Extinguisher

	Taiwan Halogen work lamp
	Taiwan Skeet chuck
