Specifications
cnc edm wire cut machine BM3201.YASKAWA Servo control system
2.High precision linear guideway
3.U.S.A Emerson Converter

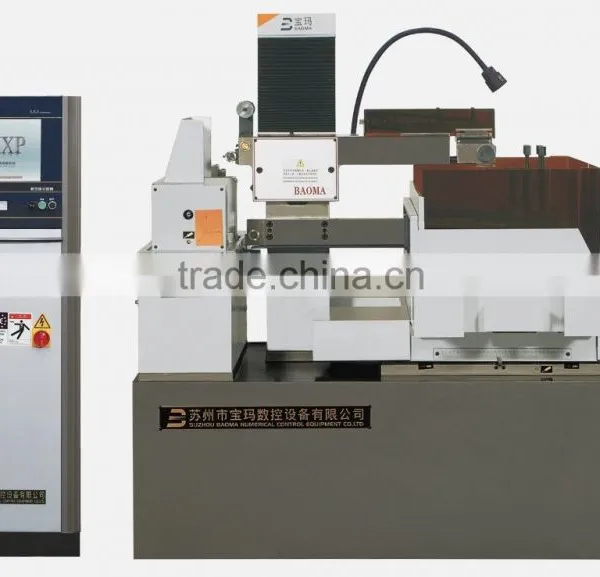

Professional manufacturer cnc edm wire cut machine BM320
a)Product Description
1. YASKAWA Servo control system
2. High precision linear guideway
3. U. S. A Emerson Converter
4. Central lubrication system
5. BMXP Control system
6. AutoCAD Plug-in, read DXF
7. Remote jog handle
8. Reusable moly-wire, Lower cost
9. Multiplicity cutting function
10. Better Surface finishing
11. Intelligent Database
ITEM |
A |
B |
C |
D |
E |
F |
|
Max. Cutting Thickness(mm) |
300 |
500 |
300 |
500 |
300 |
500 |
|
Max. Cuttting Taper(< =100mm thick) |
0 |
0 |
± 3° |
± 3° |
± 30° |
± 30° |
|
PARAMETERS |
|
BM320A |
BM320B |
BM320C |
BM320D |
BM320E |
BM320F |
Table Travel (mm) |
250 x 320 |
||||||
Table Size (mm) |
380 x 525 |
||||||
Roughness |
Once Cutting (um) |
< = 2.5 |
|||||
Multi-Cutting (um) |
< =1.2 |
||||||
Precision |
Octagon (mm) |
< = 0.012 |
< = 0.012 |
< = 0.012 |
< = 0.012 |
< = 0.012 |
< = 0.012 |
Taper (mm) |
|
|
< = 0.04 |
< = 0.04 |
< = 0.1 |
< = 0.1 |
|
Screw and guide way |
High Quality Ball Screw ; Steel Linear guideway |
||||||
Load of Table (Kg) |
300 |
||||||
Machine Weight (Kg) |
1600 |
||||||
n Max. Cutting Speed |
150 mm2/Min. |
n Wire Speed |
5 - 11 m/Min |
n Max. working Current |
6:00 AM |
n Wire Diameter |
Dia. 0.15-0.2mm |
n Work Solution |
BM2/BM4 Water Base Working solution |
n Water Tank |
56 L |
n Rated Voltage |
AC~, 3N, 220-415V, 50/60HZ |
n Ratde Power |
3 KVA |
n Wire Guide Frame |
Adjustable |
n Controller |
BMW-2008 |
b) PACKAGE
Control System | |
|
|
Pump and Tool Box | |
|
|
PACKING: | |
|
|
c)CERTIFICATE
ISO14001:2004 GB/T 24001-2004
ISO9001:2008 GB/T 19001-2008
CE CERTIFICATE:
SGS TEST
OUR WORLD EXPOSITION
EGYPT:
BRAZIL:
BEI JING:
INDIA:
