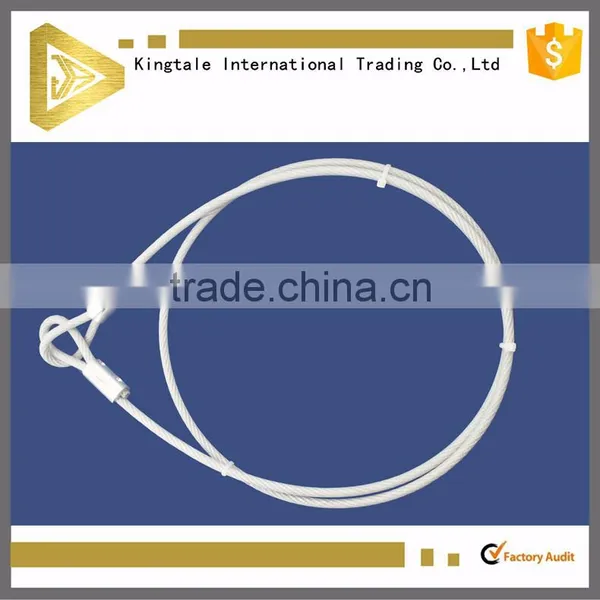

Electrical galvanized steel wire rope sling
1) Product: Electrical galvanized steel wire rope sling
2) Construction: 1*7/1*19/7*7/7*19
3) Diameter Range: 1.5mm-10mm
4) Standard: GB, ISO, DIN, ASTM
5) Packing: Plastic Reel or Wooden Reel
Outer packing: Plywood pallets
6) Application: Perfectly suitable for use around sheaves and pulleys, conveyor belts, security cables, gym equipment, garage and industrial door cables, general engineering applications, caternary wire, mast stays, signage & display. Makes perfect winch cable.
| Structure | 7X7/7*19/1*7/1*19 |
| Diameter | As your requirements |
| Materials | 45#,60#,70# carbon steel |
| Surface | Hot dipper galvanized, electric galvanized, ungalvanized |
| Lay | Right hand regular lay or left hand regular lay |
| Standards | ASTM ,DIN,GB,BS |
| Tensile strength | 1570MPa, 1670MPa, 1770MPa ,1870MPa ,1960MPa |
| Application | Excavator ,Highway guardrail cable, barrier, communication, telecommunications, overhead conductors, guy grip etc |
| Packing | Coil, plastic reel, wooden reel |
Technical Specification
Diameter | Approx. Weight | DIN3060 | |
Min.Breaking Load | |||
mm | kg/100m | 1570N/mm2 | 1770N/mm2 |
1.5 | 0.92 | 1.26 | 1.43 |
1.8 | 1.32 | 1.82 | 2.05 |
2.0 | 1.63 | 2.27 | 2.56 |
2.2 | 1.98 | 2.72 | 3.06 |
2.5 | 2.55 | 3.55 | 4.00 |
3.0 | 3.68 | 5.12 | 5.29 |
4.0 | 6.53 | 9.09 | 9.40 |
5.0 | 10.21 | 14.21 | 21.20 |
6.0 | 14.70 | 20.50 | 28.20 |
8.0 | 26.14 | 33.30 | 37.60 |
10.0 | 40.84 | 52.10 | 58.80 |
| |||
With any question about our Electrical galvanized steel wire rope sling , you can contact us at any time!
contact us now!
