Specifications
mini machining center BMDX10080-7DZa)X/Y/Z axis travel 120/1000/130mm
b)Table upper surface to spindle nose end face 7-200mm
2014 NEW SYSTERM EDM ENGRAVING AND MILLING mini machining center BMDX10080-7DZ
a)Product Description
CNC Engraving & Milling Machine (BMDX10080-7Z)
The opening protector design makes big work piece loading easily.
In design we use the advanced finite element software to do dynamic simulation and construction analysis in order to ensure the machine possesses the best construction rigidity, machining precision and machining steady.
X, Y, Z use precision ball bearing screw, all have be hauled advance, that will ensure machine to get the best precision and make the position error to the lowest.
The slop bed and the big capacity water tank make scrap to be cleaned easily.
The one key to make sure the machining result excellent is high speed and precision spindle. The power source for small tool engraving comes from the electric motor of high speed and precision spindle. If you want to make the small tool working in good condition, the spindle electric motor has the follow characteristics: High speed rolling, small rolling shake, and small rolling noise.
Excellent design make the machine so good operation.
Using the advanced cooling-water machine to cool down the spindle, make sure the spindle keeping long life and machining having high precision.
Our company offer Taiwan SYNTEC, LNC and Germany PA system according to the customer's requirement, and try our best to offer you the best products.
Taiwan Syntec940i specialist control system
Be able to connect the man-machine communicated interface of Easy view and Digital
Wide range to connect with other equipment
Convenient to communicate through the figural interface
Convenient to renew the software through the mobile hard disk
Control several axes in different synchronous way by PLC
The function of video mending
Nice panel design and steady controller design
Travel/space | X/Y/Z axis travel | mm | 120/1000/130 | |
Table upper surface to spindle nose end face | mm | 7-200 | ||
Accuracy | Positioning | mm | ±0.005/300 | |
Repeatability | mm | ±0.003/300 | ||
Table | Table dimension | mm | 850x1100 | |
Max. load on table | Kg | 700 | ||
Power(X Y Z) | Kw | 0.85,0.85,0.85 | ||
T shape groove | mm | 18TxP120x7 | ||
Spindle | 24000Rpm/2.2KW/ER20 | |||
Feeding speed | Rapid speed(X/Y/Z) | mm/min | 15000 | |
Cutting speed(X/Y/Z) | mm/min | 6000 | ||
Outer size and weight | Machine height | mm | 3050 | |
Floor space | mm | 2910x2850 | ||
Net weight | Kg | 6500 | ||
Total input power | Kw | 30 | ||
FEATURES:
Control System | |
|
|

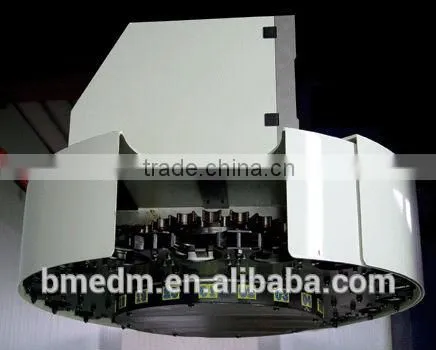

Pump and Tool Box | |
|
|

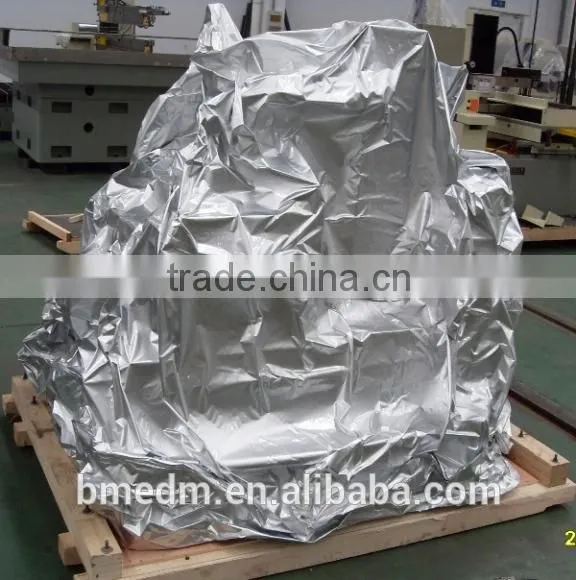

PACKING: | |
|
|
c)CERTIFICATE
ISO14001:2004
GB/T 24001-2004
ISO9001:2008
GB/T 19001-2008
CE CERTIFICATE:
SGS TEST
OUR WORLD EXPOSITION
EGYPT:
BRAZIL:
BEI JING:
INDIA:
