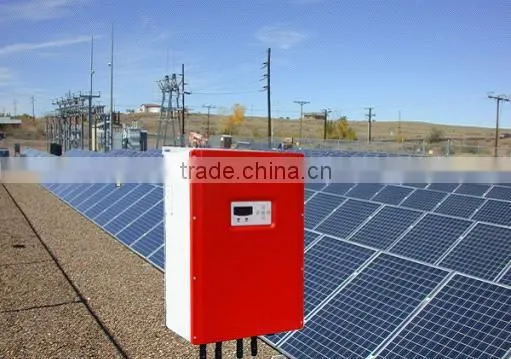

on grid solar inverter 5kw
BNSG4KD, BNSG5KD and BNSG6KD are the inverter which is with the widest input voltage range, the upper limit is high to 800V, apply to high voltage components, the minimum 200V can generate power, and effectively improve the power generation capacity. Dual-chamber cabinet structure, power components and control components are effectively separated, ensure that the control components are not effected by the bad environmental, are suitable for outdoor installation and running. Large design power, small self-consumption, and high conversion efficiency to ensure that output higher power under bad environment
Type |
BNSG4KD |
BNSG5KD |
BNSG6KD |
Recommending PV array power |
4.4 KWp |
5.5KWp |
6.6KWp |
Max. DC input voltage |
780VDC |
||
MPPT range@best operating point |
300Vdc~650 Vdc @450 Vdc |
||
Recommending PV module@number |
About 35V@16 groups |
||
On-ramp array grid-connected number |
4 groups |
||
Battery board Joint type |
In-line waterproof terminal |
||
Max.array input current |
12.5A |
15.7A |
24A |
Nominal AC output power |
4KW |
5KW |
6KW |
Allowing network voltage range(single-phase) |
180 Vac ~265Vac |
||
Nominal AC frequency |
47.5Hz~51.5Hz |
||
Power factor |
≥0.99 |
||
THD of AC current |
<4% |
||
Max. Efficiency |
95% |
||
Euro efficiency |
94% |
||
Isolation |
Low frequency transformer isolation |
||
Internal power consumption an night |
0W |
||
Comm. interfaces |
RS485/RS232/GPRS/Ethernet |
||
Electric insulation performance |
2000Vac,1minute |
||
Operational environment temperature |
-25°C~+55°C |
||
Operational environment humidity |
0~95%, no condensing |
||
Protection |
Input short voltage,over voltage,connecting contrary,output over current,short circuit over heat etc. |
||
Cooling method |
Natural cooling |
||
Noise(horizontal distance1meter) |
<40dB |
||
Protection degree |
IP65 |
||
Size(W*L*H mm) |
430×630×280 |
||
Weight |
60 |
65 |
69 |
