XHB embroidery backing interlining line
Detailed Product Description
II. Raw material
1.water
2.regenerative cotton
3.starch glue
4.calcium powder
III. Parameters
1.Net width: 80cm, 220cm
2. Product Weight: 18-120GSM
3.Capacity: above 60kg/h
4.Mechanical speed: 900m/h---1800m/h
5.Product quality: with a cross and machine direction ratio 1:1, even surface, no fuzz-like
appearance.
6.Total power: 38kw
7.Floorspace: 25m(L) ×10m(W) ×4m(H)
8.People needed: 3 to 4 people for every shift

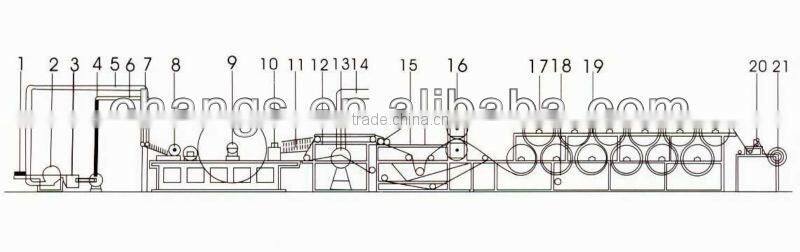

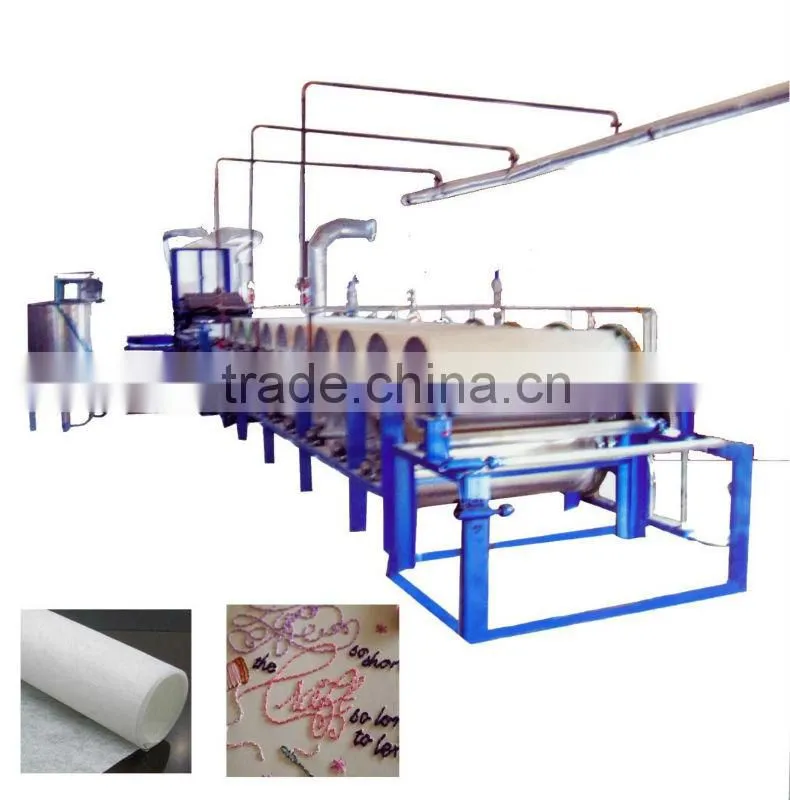

IV. Line Structure

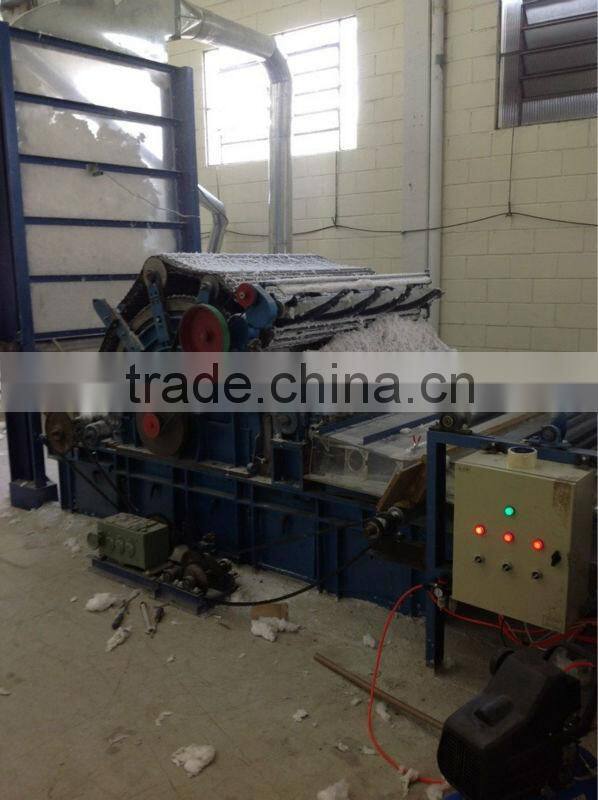

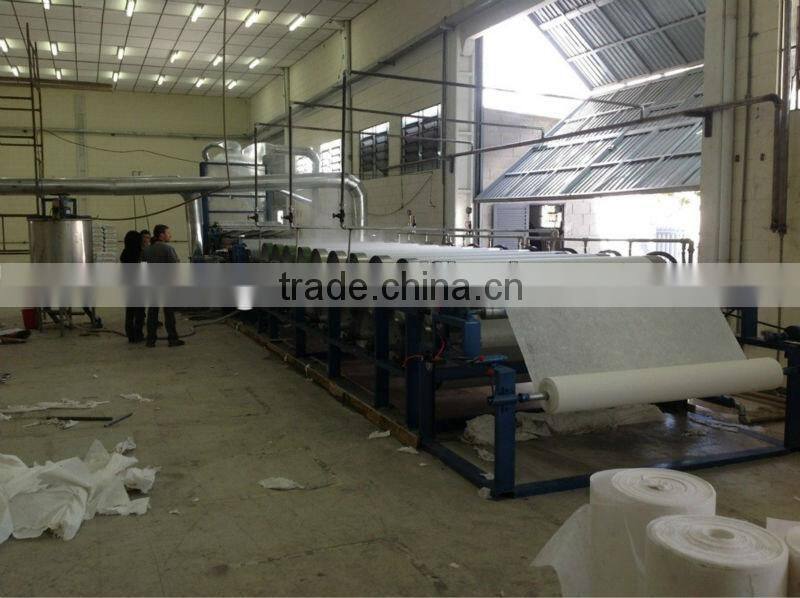

This line includes soften machine, automatic cotton feeding machine, carding machine, draft web-former, web-dryer, flatting machine, dryer, winder with a counter, electrical controlling cabinet. (note: The line for export will be equipped with electical controlling cabinet, the home selled line will be equipped with regular switchs.)
V. Operation Technics
1. This line adopts to the technology of forming the web by draft.
2. Theory: soften → carding → form the web by draft → finishing and flatting → drying → counter and wind.
VI. The oil-refuel drawing
ften machine
2.flatting machine
3.carding machine
4.dryer
VII. Heats Way
Steam boiler or cycling oil heated boiler
(note:the boiler should self-prepared by buyer)
VIII.Safty Instruction
1.There should be some extinguisher equipped beside the machine. The staff should
well-trained master safty manipulation.
2.The machine should be switch to low speed when the adhesive is pasted on roller.
3.The worker should not keep too close to dryer,conduct the web through dryer, or
else may burn himself.
4.The cables for moters and drivers should be connected by well-trained wireman.
There should be insulated pipe covering outside the cables.
I.Application field of product
The machine is used for turning all kinds of regenerative cotton into embroidery and make it into roll at a certain length.
IX Usage

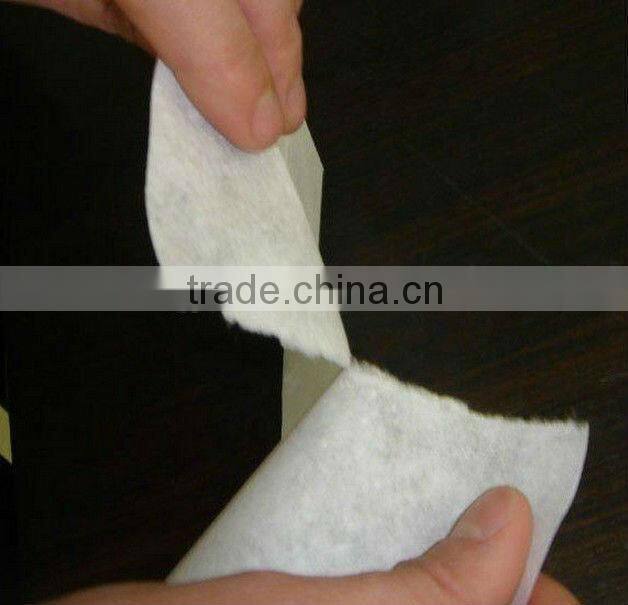

The line is used for turning all kinds of recyle cotton into embroidery backing papers and turn it into roll in certain length as required.
We have a professional transport channel
1. Warranty
1 year limited warranty after installation.
2. Installation and Training
We can send 1-2 engineers to buyers factory to install and set up the machines, but all
the charges for our engineers should be paid by buyer.
3. Quotation
The quotation is available in 60 days
