Help CenterHigh Speed PET Sleeve Rewinding and Inspection Machine
Related Products
-
YZJB High Speed PET Film Inspecting and Rewinding MachineUS$ 4,000 - 8,000MOQ: 1 Set -
FQL450LA AUTOMATIC SEALER AND SHRINK TUNNELUS$ 500 - 2,000MOQ: 5 Sets
-
FQL450A Semi-automatic Sealer and Shrink TunnelUS$ 3,600 - 4,800MOQ: 5 Sets
-
BSD4525A AUTOMATIC SEALER AND SHRINK TUNNELUS$ 3,600 - 4,800MOQ: 5 Sets
-
BSE PE FILM SHRINK PACKING MACHINEUS$ 1,000 - 2,000MOQ: 5 Sets

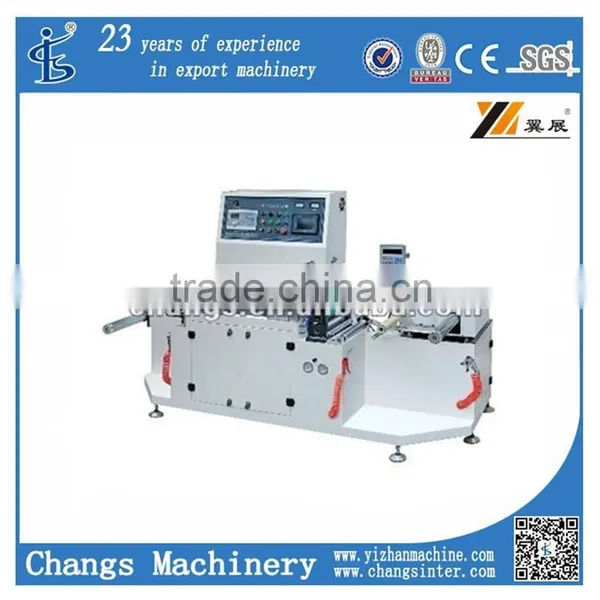

PET sleeve rewinding and inspection machine
Feature:
Unwinding system:
1. Unwinding shat is 3inch airshaft.
2.Unwinding tension controlling system:It’s inluded in high precision rotary encoder,Magnetic powder braker,Tension sensor,PLC, 7inch Touchscreen etc.human-machine talking conveniently.Total system can make the film suitable nervous.When unwinding diameter change smaller and smaller,the tension will change based on the changalbe unwinding diameter.
Rewinding system:
1. Rewinding Edge position controlling system:Photosensor get the signal and send it to ntroller give the signal to execution equipmentand let the unwinding part move right and left making the film edge orderliness.EPC range: ±50mm.Precision: ±0.1mm
2.Rewinding tension controlling system: It’s inluded in high precision rotary encoder,Magnetic powder braker,Tension sensor,PLC, 7inch Touchscreen etc.human-machine talking conveniently.Total system can make the film suitable nervous.When unwinding diameter change smaller and smaller,the tension will change based on the changalbe unwinding diameter.
3.Rewinding adopts 3inch airshaft.With extra 6inch airshaft sleeve and fixer.
4. meter-counter and corona treatment equiment is included .
5.Flash light keep the same step with the machine by flash sensor.
Parameter:
1.Materials: center sealing sleeve roll materials
2.Effective Unwinding width:300mm
4.Max.Unwinding diameter: Φ750mm
5.Max. Inspection speed:300m/min
6.Rewinding tension range:5n-50n
7.Tension presion: ±3n
8.Total machine power:3.3Kw
9.Power:380v 50hz
10.Measurement:2800*1150*1700mm
14.Weight:about 900kgs
1. Warranty
1 year limited warranty after installation.If the spare parts is broken in the warranty
period , we will send a free replacement parts to you .
2. Installation and Training
We can send 1-2 engineers to buyers factory to install and set up the machines and
training, but all the charges for the engineers should be paid by buyer.
3. Quotation
The quotation is available in 60 days
We have a professional transport channel
1.About us
Wenzhou Changs Machinery Co.,Ltd is one of the first company specialized in manufacturing printing machines, packing machines, plastic machine and paper converting machines,has owned export and import license since 2004.
To consider our full service convenience, we have set up service office and showing room at DRAGON-MART of Dubai to provide technical service for customers from Middle East and Africa in 2006, and also we have established technical support offices in Mexco, Egpty and Singapore, our service has satisfied with all of our customers. We enjoy sound reputation in oversea’s market and domestic.
2.Certificate
3. Cooperative partner
