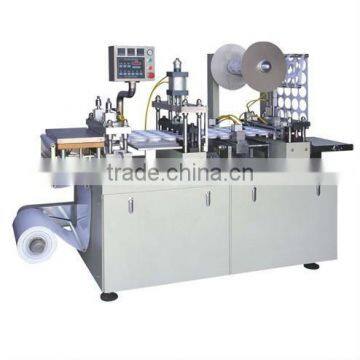

SDB-420 Cup cover making Machine

Name: SDB-420 Cup cover making Machine
Brand: YZ
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Product Details

Condition:	New	Product Type:	Plastic Sheet	Place of Origin:	China
Brand Name:	YZ	Model Number:	SDB-420	Voltage:	380V
Power(W):	4.5KW	Dimension(LWH):	24008001560mm	Weight:	900kg
Warranty:	1 YEAR	After-sales Service Provided:	Engineers available to service machinery overseas

Compact structure, smooth moving, convenient operation and easy maintenance.

Main features

1. Compact structure, smooth moving, convenient operation and easy maintenance.

2. Infinitely variable frequency speed regulation, PLC circuit control panel.

3. Adjustable route, mould changing more easily.

4. It adopts manipulation grip to feeding, accurate and reliable synchronously.

5.Designing all mould according to customers’ requirements

Main technical parameters:
Speed	15-32 times/min
Route adjustable scope	40-180mm
Material width	<430mm
Max. forming width	400mm
Max. Forming depth	Normal model 35mm Deepen model 55mm
Upper and lower heating power	2.2kw(×2)
Motor power	1.5kw
Power	Three-phase four-wire 380V 50HZ(220V 60HZ)4.5KW
Pressure of water supply	0.2MPa
Water consumption	0.3m3/h(Tap water or recycle water)
Pump volumetric flow rate	≥0.2m3/min
Air pressure	0.5-0.7MPa
Overall dimension	2400×800×1560mm
Packing size	2150×1000×1750mm
Weight	Normal 900kg Deep model 1000kg
