Technical Parameter:
Model | SJDTW- 4 | SJDTW- 5 | SJDTW-6 |
Driving Motor | 1.5kw(inverter control) | ||
Extruding output | 200--300pcs/min | ||
Inside diameter | 3.8mm | 4.8mm | 5.8mm |
Length of straw | 125-215mm | 200-260mm | 200-260mm /185-245mm |
Strawwall thickness | ±0.15-0.02 | ±0.1-0.02 | ±0.15-0.02 |
Top section length | 35-48mm(adjustable) | ||
Length of flex part | 8-11mm(adjustable) | ||
Total power | 1.5kw | ||
Weight | 1000kg | ||
Overall dimension | 1700×1350×1600mm | ||
Power | 380V/3PH/4L/50Hz | ||

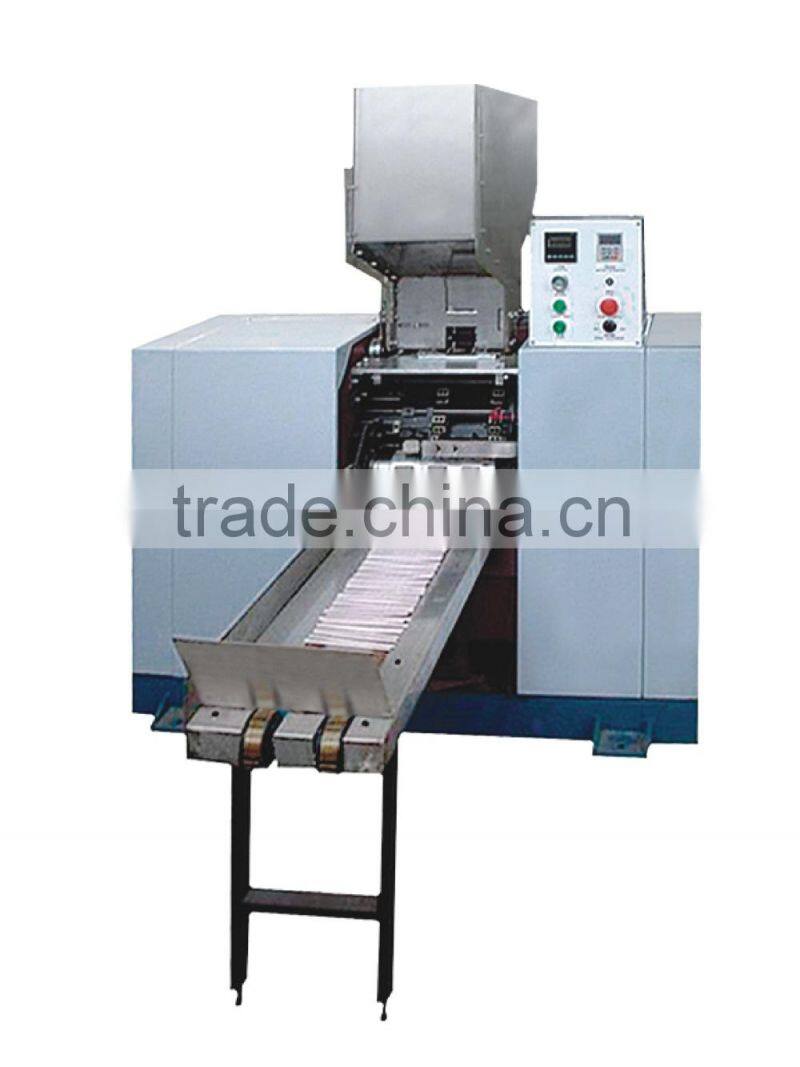

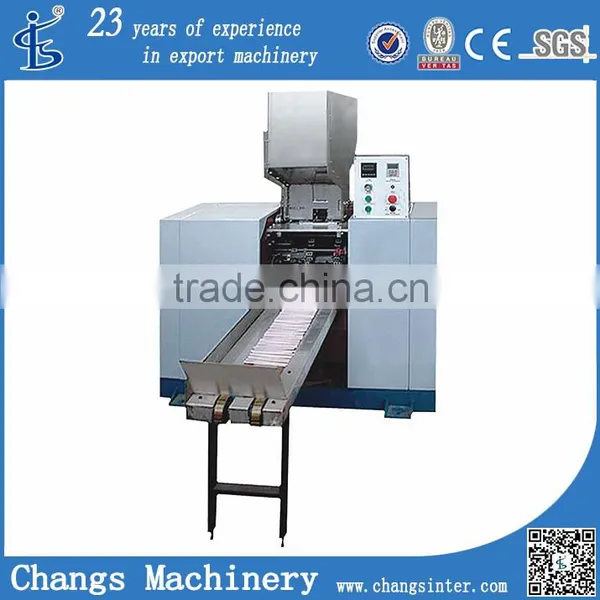

SJDTW automatic flexible drinking straw making machine provides new levels of performance for the production of flexible straws.The entire operation from product in-feed and forming to finished product out-feed is automaticlly performed requiring the operator to add the material only.

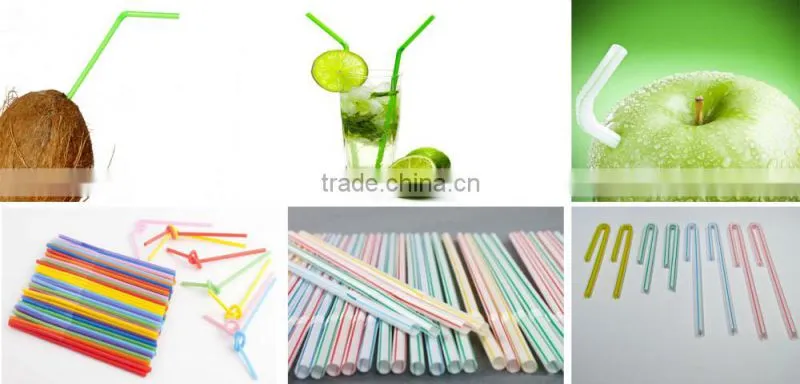

Sample:
1. Warranty
1 year limited warranty after installation.If the spare parts is broken in the warranty
period , we will send a free replacement parts to you .
2. Installation and Training
We can send 1-2 engineers to buyers factory to install and set up the machines and
training, but all the charges for the engineers should be paid by buyer.
3. Quotation
The quotation is available in 60 days
We have a professional transport channel
1.About us
Wenzhou Changs Machinery Co.,Ltd is one of the first company specialized in manufacturing printing machines, packing machines, plastic machine and paper converting machines,has owned export and import license since 2004.
To consider our full service convenience, we have set up service office and showing room at DRAGON-MART of Dubai to provide technical service for customers from Middle East and Africa in 2006, and also we have established technical support offices in Mexco, Egpty and Singapore, our service has satisfied with all of our customers. We enjoy sound reputation in oversea’s market and domestic.
2.Certificate
3. Cooperative partner
