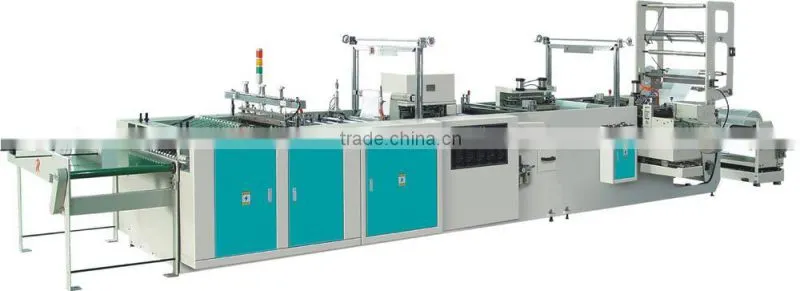

Technical Parameter:
Model | SXYS-750 | SXYS-850 | SXYS-1000ZD | |
Bag Size | Width | 250-600mm | 250-650mm | 250-650mm |
length | 250-600mm | 250-650mm | 250-850mm | |
Production speed | Patch 60cyce/min | String Draw 55cyce/min | Carry 65cyce/min | |
Thickness of film | 0.045-0.09mm | 0.045-0.09mm | 0.045-0.09mm | |
Total Power | 8kw | 8.5kw | 10.5kw | |
Weight of Machine | 3000kg | 3500kg | 4200kg | |
Overall Dimension | 8600×2800×1950mm | 8600×2900×1950mm | 8600×3100×1950mm | |
Notice:Air compressor not included | ||||
Use:
This machine is researched and manufactured by our company on the basis of integration of lots of advantages of others of this kind ,and the feedback of the home and oversea market.It integrate the machinelightelectricitygas into a system,and it is a multi-functional automatic bag maker with high speed .It is applicable to produce all sort of custume bagdatashoe bag and son on .
Characteristics ;
1.The machine is applicable to high/low polyethylene plastic film.
2.Electrical control adopts CRT real-time display system,the needed parameter can be set up according to different products
3.All the temperature control systems adopt electric liquid crystal digital displayer.Both portable rights can seal at one time ,and the seal is excellent
4.The machine possesses the automatic alarm functions of color mark losing,temperature exceeding limit,counting down and the deliver of finished products .
5.Bag delivery adopts servo motor special control system,the main machine is conrolled by soft-up transducer,tranquilization in course .
6.All the four-layer film of the machine has been warm-up before side-sealing,which make the seal quite fast
7.All the pneumatic component and electrons adopt famous mark at home or abroad .
Sample:
1. Warranty
1 year limited warranty after installation.If the spare parts is broken in the warranty
period , we will send a free replacement parts to you .
2. Installation and Training
We can send 1-2 engineers to buyers factory to install and set up the machines and
training, but all the charges for the engineers should be paid by buyer.
3. Quotation
The quotation is available in 60 days
We have a professional transport channel
1.About us
Wenzhou Changs Machinery Co.,Ltd is one of the first company specialized in manufacturing printing machines, packing machines, plastic machine and paper converting machines,has owned export and import license since 2004.
To consider our full service convenience, we have set up service office and showing room at DRAGON-MART of Dubai to provide technical service for customers from Middle East and Africa in 2006, and also we have established technical support offices in Mexco, Egpty and Singapore, our service has satisfied with all of our customers. We enjoy sound reputation in oversea’s market and domestic.
2.Certificate
3. Cooperative partner
