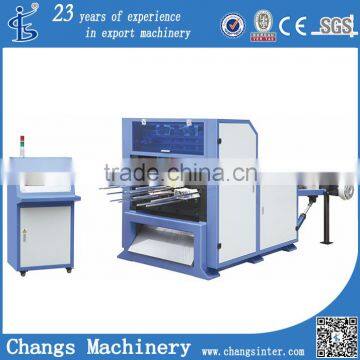

JCQ850 High Speed Punching Machine
Briefing introduction:
JCQ850 High Speed Punching Machine,the introduction of automatic punching
style cutting technology, at the production of paper goods,paper slitting,
cutting and clearing of waste together,minus the traditional process of cutting aspect,direct punching to the sample,and incision of samples is smooth,greatly reducing the energy cunsumption and human resources,reducing the labor intensity of workers.
PLC micro-electric control system and LCD visual man-machine interface applications,implementation of the whole work process automation,therough the interface dynamically displays the machine parameters of working conditions and fault,implementation of intelligent operation,as well as electro-optical tracking and automatic compensation technology.it implements the feeding smoothly,positioning accuracy,collection of paper neatly,it is an ideal equipment for the disposable paper bowl and paper cup.
Machine's working conditions
environmental temperarture:air relative humidity is less than 85%
the fluctuation of power supply and voltage do not exceed 10%
surrounding medium,non-flammable,corrosive materials,and non-violent shock.
Main technical parameters
Technical specification | |
Cutting style | punching style(for roll paper) |
Cutting speed | 220-280times/min |
Applicable base paper specifications | 125-350square meter roll paper width range 360-850 |
Diameter of roll paper | <1.5m |
Speed of feeding paper | >35m/min(intermittent work) |
Compressed air | 0.2mm/min, 0.5MPa |
Length of guide roll surface | 950mm |
Main power | 4kw |
Total power | 6kw |
Weight | 2.5T |
Main size(length*width*high) | 2900mm*1400mm*1700mm |
Electrical box size(length*width*high) | 700mm*700mm*1350mm |
1. Warranty
1 year limited warranty after installation.If the spare parts is broken in the warranty
period , we will send a free replacement parts to you .
2. Installation and Training
We can send 1-2 engineers to buyers factory to install and set up the machines and
training, but all the charges for the engineers should be paid by buyer.
3. Quotation
The quotation is available in 60 days
We have a professional transport channel
1.About us
Wenzhou Changs Machinery Co.,Ltd is one of the first company specialized in manufacturing printing machines, packing machines, plastic machine and paper converting machines,has owned export and import license since 2004.
To consider our full service convenience, we have set up service office and showing room at DRAGON-MART of Dubai to provide technical service for customers from Middle East and Africa in 2006, and also we have established technical support offices in Mexco, Egpty and Singapore, our service has satisfied with all of our customers. We enjoy sound reputation in oversea’s market and domestic.
