Specifications

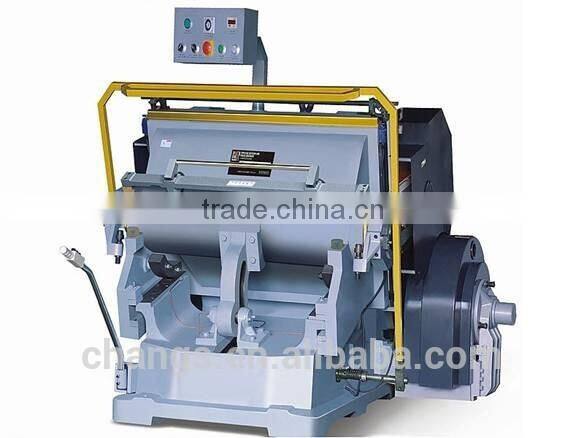

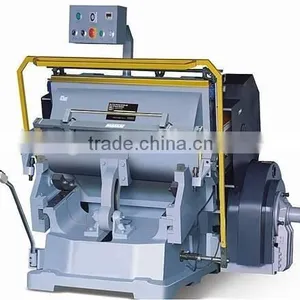

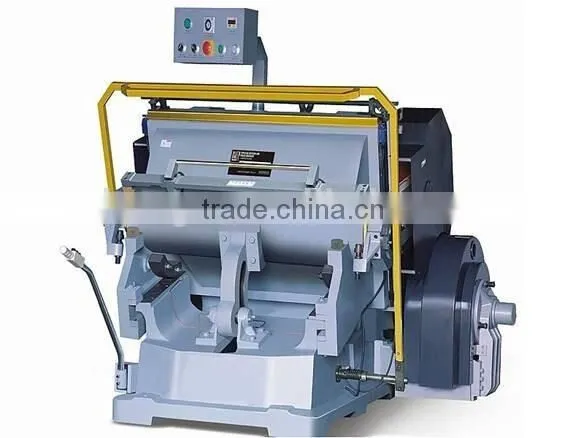

die cutting and creasing a wide range of materials, such as cardboard, corrugated board, plastic and leatherPYQ203X DIE CUTTING AND CREASING MACHINE
Application:
die cutting & creasing machines are special equipments for die cutting and creasing a wide range of materials, such as cardboard, corrugated board, plastic and leather. They are applicable to the fields of printing, packaging, decoration class industries.
Features:
1.Sliding bearings are made of high quality alloy copper.
2.Flywheel is with big moment of force and large pressure.
3.High strength due to one piece casting by using top-ranking material for machine body.
4.Single plate electromagnetic clutch is sensitive and reliable.
5.With functions of single, continuous and opening dwell operation, dwell range is adjustable.
6.Operating position is reasonably arranged, moving-bed can be opened to its optimum.
Safety system is reliable.
Main Technical Parameter:
Inner Chase size:930×660mm
Speed:25±2/Min
Max.rule length:<26m
Motor power:4KW-4H
Machine Weight:3300Kg
Overall dimension:1960×1760×1720mm
Send Inquiry to This Supplier
