Specifications

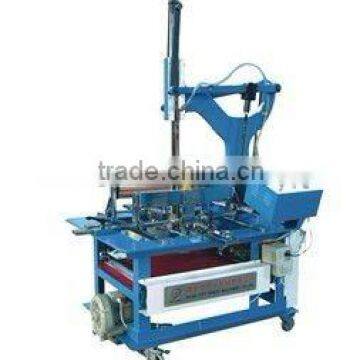

rigid box wrapperThis machine is one part of rigid box making line. It is suitable to wrap the rigid box,
rigid box wrapper
Introduction:
This machine is one part of rigid box making line. It is suitable to wrap the rigid box, gift box and some foursquare or quadrate boxes. Equipped with vacuum suction device, SMB-500 can paste the paper on the cardboard smoothly and stable under the control of foot switch and automechanism. All the processes are fluency and greatly improved the work efficiency.
Main features:
1. The die is electrically operated to elevate, brushes around four sides when put down the glued paper. The bordure on four sides is smooth.
2. The finished product discharges automatically and rapidly.
3. Automatic suction operation and foot switch control.
4. Operating speed of the machine is adjustable, and the wooden pattern is easy to make.
Technical Specification:
Model |
SMB-500 |
Box size |
100x80x15mm (Min.) |
|
460x400x100mm (Max.) |
Work speed |
20~40 units/min |
Power consumption |
1.1KW/380V |
Dimension |
1100x1100x2350mm |
Weight |
600kg |
